Product Model: C9300X-48HX-A
Retail Price: US$4,737.00
Email Us To Get Special Price Today: [email protected]

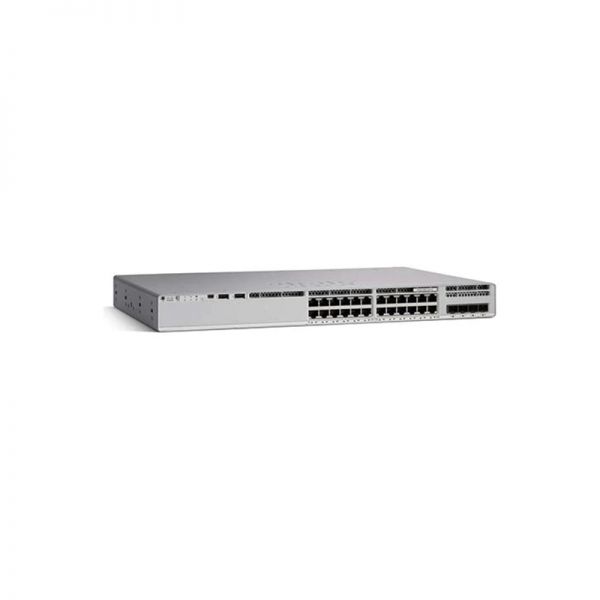

The Cisco C9300X-48HX-A is a highly advanced member of the Catalyst 9300 series, renowned for its superior performance, robust security features, and high scalability. This versatile switch is designed to meet the dynamic needs of modern enterprise networks, providing seamless connectivity and uninterrupted data flow C making it an ideal choice for businesses looking to enhance their network infrastructure.
Quick Spec
| Product Code | C9300X-48HX-A |
| Series | Cisco Catalyst 9300 |
| Ports | 48 x 10G |
| Uplink Interfaces | 8 x 10G/25G |
| Switching Capacity | 1280 Gbps |
Product Datasheet
- ● High-performance 48-port 10G fixed switch for enterprise network environments
- ● Advanced security with encrypted communication and threat defense
- ● Scalability for growing networks with modular uplink options
- ● Enhanced Quality of Service (QoS) for better traffic management
- ● Energy-efficient design with low power consumption
Product Applications
- ● Large enterprise networks requiring high-speed and secure data flow
- ● Data centers needing scalable and robust switching solutions
- ● Government and financial institutions with stringent security needs
Supported Options
| Accessory | Model |
| Power Supply | PWR-C1-715WAC |
| Fan Module | C9300-FAN |
| StackWise Cable | STACK-T1-50CM |
Compare to Similar Items
| Model | Differences |
| C9300-48T-A | Lower port speed (1G) and less uplink interface options |
| C9300X-24Y-A | Fewer ports (24 x 25G) but higher individual port speed |
| C9400-48P-A | Higher port density and modular power supplies |
Before Purchasing
For further information about the Cisco C9300X-48HX-A and its pricing, please contact us through Live Chat or at [email protected]. Check Cisco C9300X-48HX-A price and C9300X-48HX-A datasheet, buy Cisco C9300X-48HX-A Catalyst 9300 with the best price and fast shipping. Free Live Chat support is available.
C9300X-48HX-A Datasheet
C9300X-48HX-A Specifications | |
| Brand | Cisco |
| Model | C9300X-48HX-A |
| Product Line | Catalyst 9300 |
| Ports | 48 |
| Port Type | 10GBASE-T/100M/1GbE/2.5GbE/5GbE |
| Switching Capacity | 1280 Gbps |
| Forwarding Rate | 950.2 Mpps |
| Stacking Bandwidth | 1.6 Tbps |
| DRAM | 16 GB |
| Flash Memory | 16 GB |
| Max VLANs | 4000 |
| Virtual Interfaces | 4096 |
| Max MAC Address Table Size | 32,000 |
| Jumbo Frame Support | Yes (9216 bytes) |
| Operating Temperature | 32??F to 104??F (0??C to 40??C) |
| Storage Temperature | -40??F to 158??F (-40??C to 70??C) |
| Operating Humidity | 10% to 95% (non-condensing) |
| Power Supply | 950W AC |
| Redundant Power Supply | Supported |
| Dimensions | 1.73 x 17.5 x 21.5 in. (4.4 x 44.5 x 54.6 cm) |
| Warranty | Limited Lifetime Warranty |
