Product Model: ASR-920-12SZ-D
Retail Price: US$6,798.99
Email Us To Get Special Price Now: [email protected]

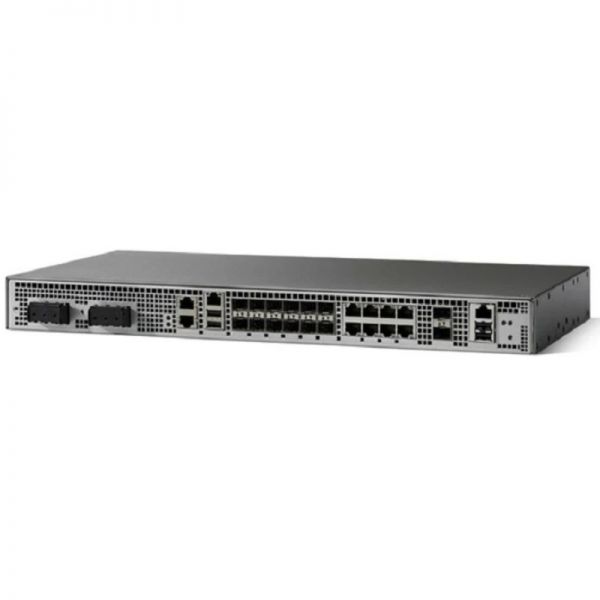

Cisco ASR-920-12SZ-D is part of the Cisco ASR 920 Series, designed to deliver enhanced network performance with 12 x 1/10GE SFP ports and dual DC power inputs. Ideal for telecom operators and enterprise networks, this model excels in providing robust, scalable connectivity solutions for diverse deployment scenarios.
Cisco ASR-920-12SZ-DProduct Datasheet
- ● 12 x 1/10GE SFP ports
- ● Dual DC power inputs
- ● High scalability
- ● Carrier-grade performance
- ● Robust security features
Product Features Comparison
| Model | Cisco ASR-920-12SZ-D | Cisco ASR-920-24TZ-M | Cisco ASR-920-10SZ-IM | Juniper ACX2200 | Huawei NE40E-X3 | Alcatel 7750 SR-1 |
|---|---|---|---|---|---|---|
| Ports | 12 x 1/10GE SFP | 24 x 1GE, 4 x 10GE | 10 x 1/10GE SFP | 16 x 1GE | 20 x 1/10GE | 12 x 10GE |
| Power Supply | Dual DC | Dual AC | Single AC/DC | Single AC | Dual AC | Dual DC |
| Throughput | 60 Gbps | 80 Gbps | 40 Gbps | 44 Gbps | 100 Gbps | 120 Gbps |
| Operating Temp | -40??C to 65??C | 0??C to 45??C | -5??C to 50??C | 0??C to 50??C | -40??C to 70??C | 0??C to 40??C |
| Weight | 5.7 kg | 4.5 kg | 3.9 kg | 4.8 kg | 6.2 kg | 5.5 kg |
| Dimensions (H x W x D) | 44 x 442 x 355 mm | 44 x 442 x 350 mm | 43 x 440 x 350 mm | 45 x 440 x 350 mm | 44 x 445 x 350 mm | 45 x 440 x 350 mm |
Cisco ASR-920-12SZ-D Product Application Scenarios
- ● Enterprise WAN aggregation
- ● Carrier Ethernet access
- ● Mobile backhaul deployment
Optional Add-ons
| Model | Description |
|---|---|
| SFP-10G-LR | 10GBASE-LR SFP+ Transceiver Module |
| ASR-900-RMK | ASR 900 Series Rack Mount Kit |
| PWR-3KW-DC | 3000W DC Power Supply Module |
Get More Information
Discover unbeatable prices and fast shipping for the Cisco ASR-920-12SZ-D. Access the detailed ASR-920-12SZ-D datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
ASR-920-12SZ-D Datasheet
ASR-920-12SZ-D Specifications | |
| Brand | Cisco |
| Model | ASR-920-12SZ-D |
| Series | ASR 920 |
| Interfaces | 12 x 1/10GE SFP |
| Power Supply | Dual DC |
| Forwarding Capability | 100 Gbps |
| Service Provider Scale | Yes |
| Routing Protocols | OSPF, BGP, IS-IS, EIGRP |
| MAC Address Table Size | 16,000 |
| IPv4 Routes | 16,000 |
| IPv6 Routes | 8,000 |
| QoS | Yes |
| Redundancy | Yes |
| Power Consumption | 150W |
| Operating Temperature | -40 to 65??C |
| Management | CLI, SNMP, NETCONF |
| Dimensions (W x D x H) | 17.4 in x 9.11 in x 1.72 in (44.2 cm x 23.2 cm x 4.4 cm) |
| Max Power Supply Voltage | 60 VDC |
| Min Power Supply Voltage | 40 VDC |
| Flash Memory | 4 GB |
| DRAM | 4 GB |
