Product Model: ASA5525-FPWR-K9
Product Special Price: US$3,472.00
Email Us To Get Special Price Now: [email protected]
ASA5525-FPWR-K9 Datasheet
ASA5525-FPWR-K9 Specification |
|
| Networking | |
| Type | Security appliance |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1.1 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Status Indicators | Active, Alarm, Boot state, HDD activity, Power, VPN |
| Ports Qty | 8 |
| Features | Firewall protection, High Availability, VLAN support, VPN support |
| Network Transport Protocol | IPSec |
| Interface Provided | |
| Qty | 8 |
| Type | Management |
| Connector Type | RJ-45 |
| Service | |
| Support Details Type | Limited warranty |
| Support Details Service Included | Advance parts replacement |
| Support Details Full Contract Period | 90 days |
| Miscellaneous | |
| Compliant Standards | C-Tick, CISPR 22, CSA C22.2 No. 60950-1-07 Second Edition, EMC, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 B Class A, ICES-003, IEC 60950-1 Second Edition, KC, UL 60950-1 Second Edition, VCCI V-3 |
| Height (Rack Units) | 1 |
| Encryption Algorithm | AES, DES, Triple DES |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Header | |
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Packaged Quantity | 1 |
| Product Line | Cisco ASA |
| Model | 5525-X |
| Bundled with | FirePOWER Services |
| Brand | Cisco |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Power Provided | 400 Watt |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Nominal Voltage | AC 120/230 V |
| Type | Internal power supply |
| Service & Support | |
| Type | 90 days warranty |
| Service & Support Details | |
| Response Time | 10 days |
| Slot Provided | |
| Total Qty | 1 |
| Free Qty | 1 |
| Software | |
| Type | Drivers & Utilities |
| Capacity | |
| Type | Virtual interfaces (VLANs) |
| Value | 200 |
| Performance | |
| Type | VPN throughput (3DES/AES) |
| Value | 300 Mbps |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 15.6 in |
| Height | 1.7 in |
| Weight | 14.93 lbs |
| Expansion Slots | |
| Type | Expansion slot |
| Flash Memory | |
| Installed Size | 8 GB |
| Hard Drive | |
| Installed Qty | 1 |
| Type | SSD |
| Optical Storage | |
| Type | None |
| RAM | |
| Installed Size | 8 GB |
Cisco ASA with FirePOWER Services brings distinctive threat-focused next-generation security services to the Cisco ASA 5500-X Series Next-Generation Firewalls. It provides comprehensive protection from known and advanced threats, including protection against targeted and persistent malware attacks. Cisco ASA is the world’s most widely deployed, enterprise-class stateful firewall.
Quick Specs

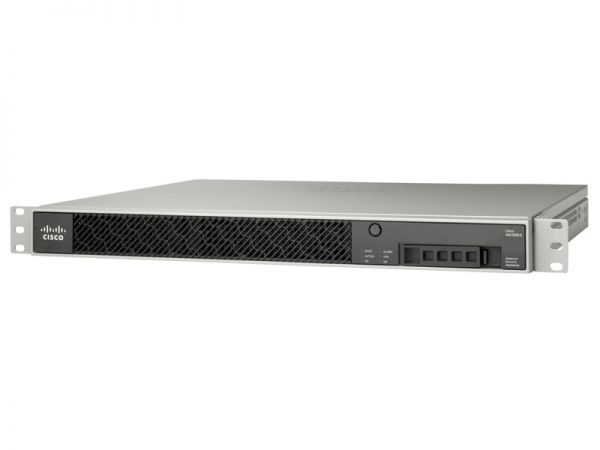

Figure 1 shows the appearance of ASA5525-FPWR-K9.
Table 1 shows the Quick Specs.
|
Model |
ASA5525-FPWR-K9 |
|
Stateful inspection throughput (maximum*) |
2 Gbps |
|
Stateful inspection throughput (multiprotocol) |
1 Gbps |
|
Triple Data Encryption Standard/Advanced Encryption Standard (3DES/AES) VPN throughput* |
300 Mbps |
|
Users/nodes |
Unlimited |
|
IPsec site-to-site VPN peers |
750 |
|
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections* |
750 |
|
Virtual interfaces (VLANs) |
200 |
|
Security contexts*(included; maximum) |
2; 20 |
|
High availability |
Active/Active and Active/Standby |
|
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details) |
N/A |
|
Expansion slot |
1 interface card |
|
User-accessible Flash slot |
0 |
|
USB 2.0 ports |
2 |
|
Integrated I/O |
8 GE copper |
|
Expansion I/O |
6 GE copper or |
|
6 GE SFP |
|
|
Dedicated management port |
Yes (1 GE) |
|
Serial ports |
1 RJ-45 console |
|
Solid-state drive |
1 slot, |
|
120 GB MLC SED |
|
|
Memory |
8 GB |
|
System flash |
8 GB |
|
System bus |
Multibus architecture |
|
Temperature |
23 to 104°F (-5 to 40°C) |
|
Relative humidity |
90 percent |
|
Altitude |
Designed and tested for 0 to 10,000 ft (3050 m) |
|
Acousticnoise |
64.2 dBA max |
|
Temperature* |
-13 to 158°F (-25 to 70°C) |
|
Relative humidity |
10 to 90 percent |
|
Altitude |
Designed and tested for 0 to 15,000 ft (4572 m) |
|
AC range line voltage |
100 to 240 VAC |
|
AC normal line voltage |
100 to 240 VAC |
|
AC current |
4.85A |
|
AC frequency |
50/60 Hz |
|
Dual-power supplies |
None |
|
DC domestic line voltage |
-40.5 to 56 VDC |
|
DC international line voltage |
-55 to -72 VDC |
|
(-60 VDC nominal) |
|
|
DC current |
15A (maximum input) |
|
Steady state |
75W |
|
Maximum peak |
108W |
|
Maximum heat dissipation |
369 Btu/hr |
|
Form factor |
1RU, 19-in. rack-mountable |
|
Dimensions |
1.75 x 17.5 x 14.25 in. |
|
(H x W x D) |
(4.45 x 20.04 x 36.20 cm) |
|
Weight (with AC power supply) |
22.0 lb (10 kg) |
* Maximum throughput measured with UDP traffic under ideal conditions.
Multiprotocol = Traffic profile consisting primarily of TCP-based protocols/applications like HTTP, SMTP, FTP, IMAPv4, BitTorrent, and DNS.
* VPN throughput and sessions count depend on the ASA device configuration and VPN traffic patterns. These elements should be taken into consideration as part of your capacity planning.
Higher Description are associated with the Security Plus license.
* Separately licensed feature. For AnyConnect, licenses are purchased based on feature tier (Plus/Apex), term and authorized user license. See ordering guide below for detailed ordering instructions.
Usable space dependent upon system software.
* Derate the maximum operating temperature 1.5°C per 1000 ft above sea level.
Datasheet Download
[PDF] Cisco ASA 5500 with FirePOWER Services Datasheet
