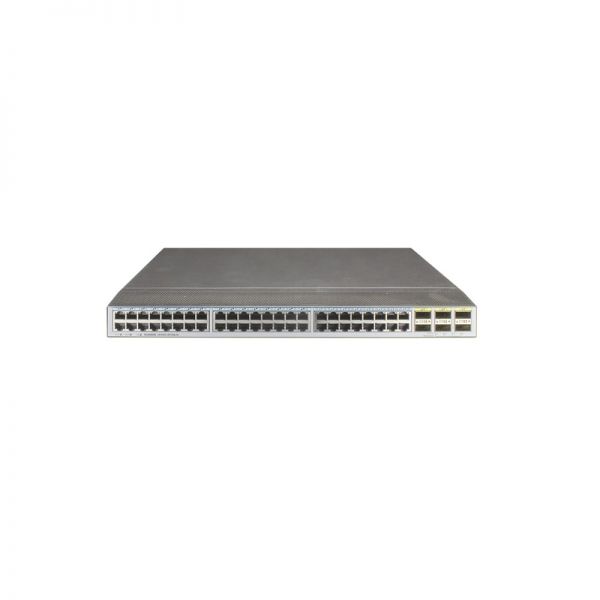

Product Model: CE6855-48T6Q-HI
Retail Price: US$6,760.00
Email Us To Get Special Price Today: [email protected]
Huawei CloudEngine 6850 (CE6850 for short) series switches are next-generation 10G Ethernet switches designed for data centers and high-end campus networks, providing high-performance, high-density 10GE ports, and low latency. The CE6850 series uses an advanced hardware architecture with 40GE uplink ports and high-density 10GE access ports. Using the Huawei VRP8 software platform, the CE6850 series provides extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE6850 series can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
CE6855-48T6Q-HI |
|
Processor |
1.2 GHz, quad-core |
|
DRAM Memory |
2 GB |
|
NOR Flash |
16 MB |
|
NAND Flash |
1 GB |
|
Mean time between failures (MTBF) |
54.48 years |
|
Mean time to repair (MTTR) |
1.81 hours |
Compare to Similar Items
Table 2 shows the comparison.
|
Model |
CE6856-48S6Q-HI |
CE6856-48T6Q-HI |
CE6855-48S6Q-HI |
CE6855-48T6Q-HI |
|
Downlink Ports |
48 x 10 GE SFP+ |
48 x 10 GE Base-T |
48 x 10 GE SFP+ |
48 x 10 GE Base-T |
|
Uplink Ports |
6 x 40 GE QSFP+ |
6 x 40 GE QSFP+ |
6 x 40 GE QSFP+ |
6 x 40 GE QSFP+ |
|
Buffer |
16 MB |
16 MB |
16 MB |
16 MB |
|
Maximum Power Consumption |
216W |
346W |
216W |
346W |
|
Power Supply |
AC: 600W |
AC: 600W AC + 240V DC |
AC: 600W |
AC: 600W AC + 240V DC |
Before Purchasing
Do you have any question about the CE6855-48T6Q-HI ?
Contact us – Email Live Chat or [email protected].
CE6855-48T6Q-HI Datasheet
CE6855-48T6Q-HI Specification |
|
|
|
Item |
Description |
|
|
Processor |
1.2 GHz, quad-core |
|
|
DRAM Memory |
2 GB |
|
|
NOR Flash |
16 MB |
|
|
NAND Flash |
1 GB |
|
|
Mean time between failures (MTBF) |
54.48 years |
|
|
Mean time to repair (MTTR) |
1.81 hours |
|
|
Physical specifications |
|
|
|
Temperature |
NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1¡ãC (1.8¡ãF) every time the altitude increases by 220 m (722 ft.).
|
|
|
Relative humidity |
5% RH to 95% RH, noncondensing |
|
|
Altitude |
< 5000 m (16404 ft.) |
|
|
Noise (sound pressure, 27¡ãC) |
|
|
|
Power source type |
AC/DC/high-voltage DC |
|
|
AC power input |
|
|
|
DC power input |
|
|
|
High-voltage DC power input |
|
|
|
Rated input current |
|
|
|
Maximum power consumption |
346 W |
|
|
Typical power consumption |
219 W (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules) |
|
|
Maximum heat dissipation |
1181 BTU/hr |
|
|
Typical heat dissipation |
747 BTU/hr (100% throughput, 3 m Ethernet cables on 48 ports and QSFP+ cables on 6 ports, double power modules) |
|
|
Surge protection |
Ethernet electrical ports: 2 kV in common mode Power module:
|
|
|
Heat dissipation mode |
Air cooling |
|
|
Airflow |
Front-to-back or back-to-front, depending on the fan modules and power modules |
|
|
Power module backup |
1+1 backup |
|
|
Fan module backup |
1+1 backup not supported NOTE: A CE6800 chassis uses two fan modules, with each fan module containing two fans. The four fans in the chassis work in 3+1 backup mode. |
|
|
Hot swap |
Supported by all power modules and fan modules |
|
|
Availability |
0.99999620929 |
|
|
Service port supporting the stack function |
10GE electrical ports and 40GE optical ports |
|
