Product Model: CE6820-48S6CQ-B0
Retail Price: US$4,345.00
Email Us To Get Special Price Today: [email protected]

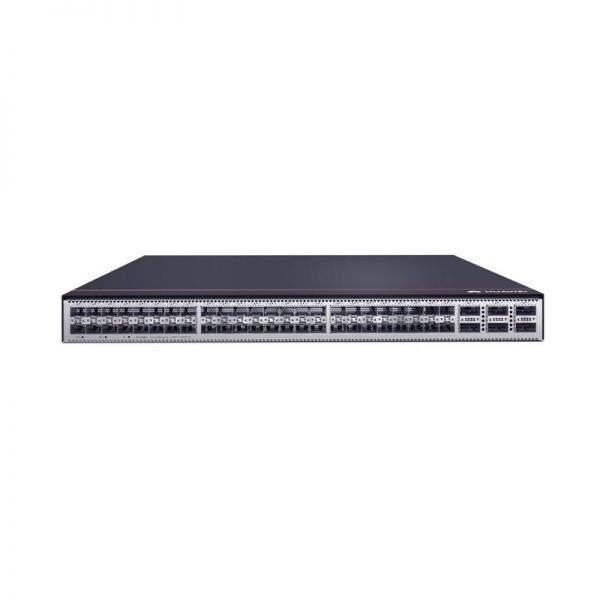

CE6820-48S6CQ switch combination package B0 (48*10G SFP+, 6*100G QSFP28, 2* AC power supply, port side air intake, including basic software functions).
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
CE6820-48S6CQ-B0 |
|
Installation Type |
Cabinet Installation |
|
CPU |
4-core, 1.4GHZ |
|
Memory |
DRAM: 4 GB |
|
NOR Flash |
64 MB |
|
NAND Flash |
2GB |
|
Power supply mode |
AC DC HVDC |
|
Console port |
RJ45 |
|
Static power consumption [W] |
102 W |
|
Static heat dissipation [BTU/hour] |
348 BTU/hour |
|
Maximum power consumption [W] |
282 W |
|
Maximum heat dissipation |
962 |
|
Number of power modules |
2 |
Supported Transceivers
Table 2 shows the recommended models.
|
Model |
Description |
|
OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
|
OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
|
ESFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
Before Purchasing
Do you have any question about the CE6820-48S6CQ-B0
Contact us – Email Live Chat or [email protected].
CE6820-48S6CQ-B0 Datasheet
CE6820-48S6CQ-B0 Specification |
|
|
Installation Type |
Cabinet Installation |
|
CPU |
4-core, 1.4GHZ |
|
Memory |
DRAM: 4 GB |
|
NOR Flash |
64 MB |
|
NAND Flash |
2GB |
|
Power supply mode |
¡¤ AC ¡¤ DC HVDC |
|
Console port |
RJ45 |
|
Downlink Service interface |
48*10GE SFP+ (Note: 1. 10GE interfaces are compatible with GE; 2. The interfaces do not support 10GE LRM/80KM linear optical modules) |
|
Uplink Service interface |
6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces.) |
|
Service port supporting the stack function |
10GE optical ports, and 100GE optical ports |
|
RTC |
Supported |
|
Typical power consumption [W] |
¡¤ 162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 196 W (100% throughput, short-distance optical modules on all ports, dual power modules) |
|
Typical heat dissipation [BTU/hour] |
¡¤ 553 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) 669BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules) |
|
Static power consumption [W] |
102 W |
|
Static heat dissipation [BTU/hour] |
348 BTU/hour |
|
Maximum power consumption [W] |
282 W |
|
Maximum heat dissipation |
962 |
|
Number of power modules |
2 |
|
Redundant power supply |
1+1 backup |
|
Rated input voltage [V] |
¡¤ 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC ¡¤ 1000 W DC power module: ¨C48 V DC to ¨C60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC |
|
Input voltage range [V] |
¡¤ 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC ¡¤ 1000 W DC power module: ¨C38.4 V DC to ¨C72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC |
|
Maximum input current [A] |
¡¤ 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) ¡¤ 1000 W DC power module: 30 A (¨C48 V DC to ¨C60 V DC) 1200 W high-voltage DC power module: 8 A |
|
Rated output power [W] |
¡¤ 600 W AC&240 V DC power module: 600 W ¡¤ 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W |
|
Maximum output power [W] |
¡¤ 600 W (AC&240 V HVDC) ¡¤ 1000 W (¨C48 V DC) 1200 W (380 V HVDC) |
|
Certification |
¡¤ Complies with safety standards. ¡¤ Complies with EMC standards. Complies with environmental protection standards. |
|
Power supply surge protection [kV] |
¡¤ AC: 6 kV in common mode and 6 kV in differential mode ¡¤ DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
|
Types of fans |
Pluggable |
|
Number of fans |
4 |
|
Redundant fans |
The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
|
Heat dissipation mode |
Air cooling |
|
Airflow direction |
Front-to-back or back-to-front, depending on the fan modules and power modules. |
|
Availability |
0.99999618 |
|
MTBF [year] |
45.48 year |
|
MTTR [hour] |
1.52 hour |
|
Noise at normal temperature (27¡ãC, sound pressure) [dB(A)] |
¡¤ Front-to-back airflow: < 55 dB(A) Back-to-front airflow: < 56 dB(A) |
|
Noise at high temperature (40¡ãC, sound pressure) [dB(A)] |
¡¤ Front-to-back airflow: < 71 dB(A) ¡¤ Back-to-front airflow: < 72 dB(A) |
|
Long-term operating altitude [m (ft.)] |
¡¤ ¡Ü 5000 m (16404 ft.) |
|
Long-term operating relative humidity [RH] |
¡¤ 5% RH to 95% RH, noncondensing |
|
Long-term operating temperature [¡ãC (¡ãF)] |
0¡ãC to 40¡ãC (32¡ãF to 104¡ãF) at an altitude of 0¨C1800 m (0¨C5906 ft.) NOTE: ¡¤ When the altitude is 1800¨C5000 m (5096¨C16404 ft.), the highest operating temperature reduces by 1¡ãC (1.8¡ãF) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature [¡ãC (¡ãF)] |
¡¤ -40¡ãC to +70¡ãC (-40¡ãF to +158¡ãF) |
