Product Model: C9606R
Retail Price: US$8,947.00
Email Us To Get Special Price Today: [email protected]
The Cisco Catalyst C9606R chassis is hardware ready to support a wired switching capacity of up to 25.6 Tbps, with up to 6.4 Tbps of bandwidth per slot.
Quick Spec
Table 1 shows the quick spec.
|
Model |
C9606R |
|
Total number of slots |
6 |
|
Line-card slots |
4 |
|
Supervisor engine slots |
2 |
|
Dedicated supervisor engine slot numbers |
3 and 4 |
|
Supervisor engine redundancy |
Yes |
|
Supervisor engines supported |
C9600-SUP-1 |
|
Maximum bandwidth scalability per line-card slot |
6.4 Tbps (Hardware ready) 2.4 Tbps (With C9600-SUP-1) |
|
Number of power supply bays |
4 |
|
Minimum number of power supplies |
2 (Fully loaded 9606R chassis, Minimum 3 power supplies required if input voltage is 110V) |
|
Power supplies supported |
2000W AC, 2000W DC |
|
Number of fan-tray bays |
1 |
Product Details

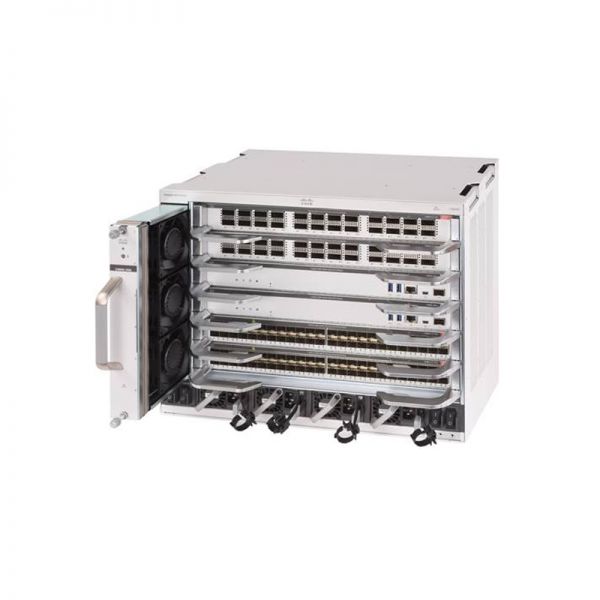

Figure 1 shows the front view of C9606R.
Note:
|
¢Ù |
Fan tray assembly |
|
¢Ú |
Power switches |
|
¢Û |
Power Supply modules |
|
¢Ü |
Power switches |
|
¢Ý |
Line card slots |
|
¢Þ |
Supervisor Module slots |
|
¢ß |
Line card slots |
The Options
Table 2 shows the optional cards, modules, licenses and others of C9606R.
|
Product number |
Description |
|
C9600-SUP-1 |
Cisco Catalyst 9600 Series Supervisor 1 Module |
|
C9600-SUP-1/2 |
Cisco Catalyst 9600 Series Redundant Supervisor 1 Module |
|
C9600-LC-48YL |
Cisco Catalyst 9600 Series 48-Port 25GE/10GE/1GE |
|
C9600-LC-24C |
Cisco Catalyst 9600 Series 24-Port 40GE/12-Port 100GE |
|
C9606-FAN |
Cisco Catalyst 9600 Series C9606 Chassis Fan Tray |
|
C9K-F2-SSD-240GB |
Cisco Catalyst 9600 Series 240GB SSD Storage |
|
C9K-F2-SSD-480GB |
Cisco Catalyst 9600 Series 480GB SSD Storage |
|
C9K-F2-SSD-960GB |
Cisco Catalyst 9600 Series 960GB SSD Storage |
|
Cisco DNA term licenses |
Description |
|
C9600-DNA-A |
C9600 Cisco DNA Advantage Term License |
|
C9600-DNA-A-3Y |
C9600 Cisco DNA Advantage 3 Year License |
|
C9600-DNA-A-5Y |
C9600 Cisco DNA Advantage 5 Year License |
|
C9600-DNA-A-7Y |
C9600 Cisco DNA Advantage 7 Year License |
|
C9600-DNA-P |
C9600 Cisco DNA Premier License |
|
C9600-DNA-P-3Y |
C9600 Cisco DNA Premier 3 Year Term License |
|
C9600-DNA-P-5Y |
C9600 Cisco DNA Premier 5 Year Term License |
|
C9600-DNA-P-7Y |
C9600 Cisco DNA Premier 7 Year Term License |
|
CAT-DNA-P-ADD |
Cisco DNA Premier Catalyst Add-on |
|
CAT-DNA-P-ADD-3Y |
Cisco DNA Premier Catalyst Add-on, 3 Year Term License |
|
CAT-DNA-P-ADD-5Y |
Cisco DNA Premier Catalyst Add-on, 5 Year Term License |
|
CAT-DNA-P-ADD-7Y |
Cisco DNA Premier Catalyst Add-on, 7 Year Term License |
|
Power supplies |
Description |
|
C9600-PWR-2KWAC |
Cisco Catalyst 9600 Series 2000W AC Power Supply |
|
C9600-PWR-2KWDC |
Cisco Catalyst 9600 Series 2000W DC Power Supply |
|
Spare accessories and kits |
Description |
|
C9606-SLOT-BLANK |
Cisco Catalyst 9600 Series Blank for Chassis Module Slot |
|
C9606-PWR-BLANK |
Cisco Catalyst 9600 Series Blank for Chassis Power Supply Slot |
|
CAB-CONSOLE-USB |
Console Cable 6ft with USB Type A and mini-B |
|
CAB-CONSOLE-RJ45 |
Console Cable 6ft with RJ45 and DB9F |
|
C9606-RACK-KIT= |
Cisco Catalyst 9600 Series 6 slot chassis Rack Mount |
|
C9606-ACC-KIT= |
Cisco Catalyst 9600 Series 6 slot chassis Accessory Kit |
|
C9606-SHELF-KIT= |
Cisco Catalyst 9600 Series 6 slot chassis Shelf Install Kit |
|
C9606-FB-23-KIT= |
Cisco Catalyst 9600 Series 6 slot chassis Front to Back Kit |
Compare to Similar Item
Table 3 shows the comparison.
|
SKU |
C9404R |
C9606R |
|
Series |
Catalyst 9400 |
Catalyst 9600 |
|
Total number of slots |
4 |
6 |
|
Line-card slots |
2 |
4 |
|
Supervisor engine slots |
2 |
2 |
|
Dedicated supervisor engine slot numbers |
2 and 3 |
3 and 4 |
|
Maximum Bandwidth scalability per line-card slot |
Up to 480 Gbps on all slots |
6.4 Tbps (Hardware ready) 2.4 Tbps (With C9600-SUP-1) |
Before Purchasing
Do you have any question about the C9606R?
Contact us – Email Live Chat or [email protected].
C9606R Datasheet
C9606R Specification |
|
|
Total number of slots |
6 |
|
Line-card slots |
4 |
|
Supervisor engine slots |
2 |
|
Dedicated supervisor engine slot numbers |
3 and 4 |
|
Supervisor engine redundancy |
Yes |
|
Supervisor engines supported |
C9600-SUP-1 |
|
Maximum bandwidth scalability per line-card slot |
6.4 Tbps (Hardware ready) 2.4 Tbps (With C9600-SUP-1) |
|
Number of power supply bays |
4 |
|
Minimum number of power supplies |
2 (Fully loaded 9606R chassis, Minimum 3 power supplies required if input voltage is 110V) |
|
Power supplies supported |
2000W AC, 2000W DC |
|
Number of fan-tray bays |
1 |
|
Dimensions |
35.43 x 44.2 x 40.9 cm 13.95 x 17.4 x 16.1 in. |
|
Rack Units (RU) |
8 |
|
Input voltage |
AC: 90V to 264V, 47 to 63 Hz AC DC: -40V to -72V |
|
Operating temperature |
-5° to 45° C (23° to 113° F) up to 6000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet |
|
Storage temperature |
-40° to 75° C (40° to 167° F) |
|
Relative humidity, operating and nonoperating, noncondensing |
10% to 95%, noncondensing |
|
Altitude |
-60 to 3000 m (-197 to 9843 feet) |
|
Mean Time Between Failures (MTBF) (hours) |
C9606R chassis: 4,113,900 C9606 fan tray: 452,570 |
