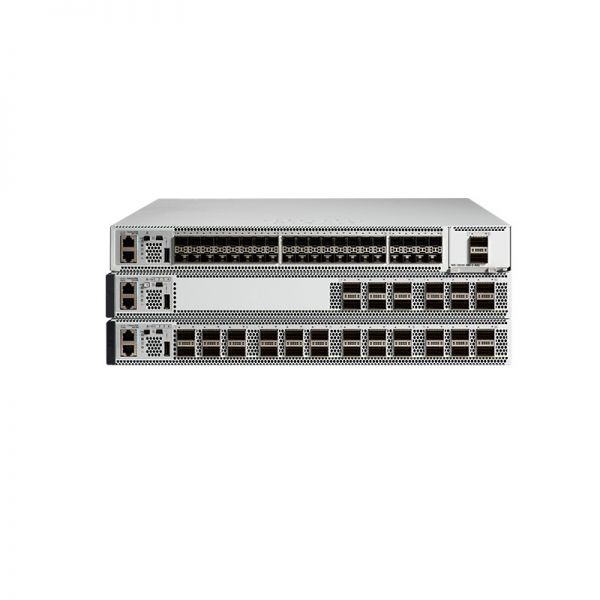

C9500-40X-A is one of the the Cisco Catalyst 9500 Series Switches. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
C9500-40X-A |
|
Description |
Catalyst 9500 40-port 10Gig switch, Network Advantage |
|
Switching capacity |
Up to 960 Gbps |
|
Forwarding rate |
Up to 720 Mpps |
|
AC power max rating |
950W |
|
System power consumption |
850W max |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 21.52 in |
|
Rack units (RU) |
1 RU |
Product Details
Figure 2 shows the front panel of C9500-40X-A.
Note:
|
¢Ù |
40 10G SFP ports |
|
¢Ú |
Network modules |
|
¢Û |
RFID |
|
¢Ü |
Console port (RJ-45 Serial) |
|
¢Ý |
Blue beacon LED |
|
¢Þ |
USB mini Type B console port |
|
¢ß |
Mode button |
|
¢à |
USB 2.0 host port |
|
¢á |
Ethernet management RJ-45 port |
The Accessories
Table 2 shows the recommended elements for the C9500-40X-A.
|
Category |
Model |
Description |
|
Power Supply
|
PWR-C4-950WAC-R |
950W AC Config 4 Power Supply front to back cooling |
|
PWR-C4-950WAC-R/2 |
950W AC Config 4 Power Supply front to back cooling |
|
|
Console Cables
|
CAB-CONSOLE-RJ45 |
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
|
CAB-CONSOLE-USB |
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
Before Purchasing
Do you have any question about the C9500-40X-A?
Contact us – Email Live Chat or [email protected].
C9500-40X-A Datasheet
C9500-40X-A specifications |
||
|
Chassis with 2 power supplies and built-In fan |
25.75 lbs (11.68 kg) |
|
|
Dimensions (H x W x D) |
1.73 x 17.5 x 21.52 in |
|
|
Rack Units (RU) |
1 RU |
|
|
Chassis with 2 power supplies and built-In fan |
25.75 lb (11.68 kg) |
|
|
Input voltage |
90 to 264 VAC* |
|
|
Operating temperature |
32¡ã to 104¡ãF (0¡ã to 40¡ãC) up to altitude of 10,000 feet |
|
|
Altitude |
Operation up to 10,000 feet at 40¡ãC; up to 6,000 feet at 45¡ãC |
|
|
Storage temperature |
-4¡ã to 149¡ãF (-20¡ã to 65¡ãC) |
|
|
Relative humidity operating and nonoperating (noncondensing) |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
|
|
NEBS criteria levels |
NEBS: ¡ñ ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations.
¡ñ SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue)
|
|
| MTBF (hours) |
277,310 |
|
* Minimum input voltage is 90VAC, and maximum input voltage is 264VAC.
