Product Model: C9500-16X-E
Retail Price: US$4,636.00
Email Us To Get Special Price Today: [email protected]

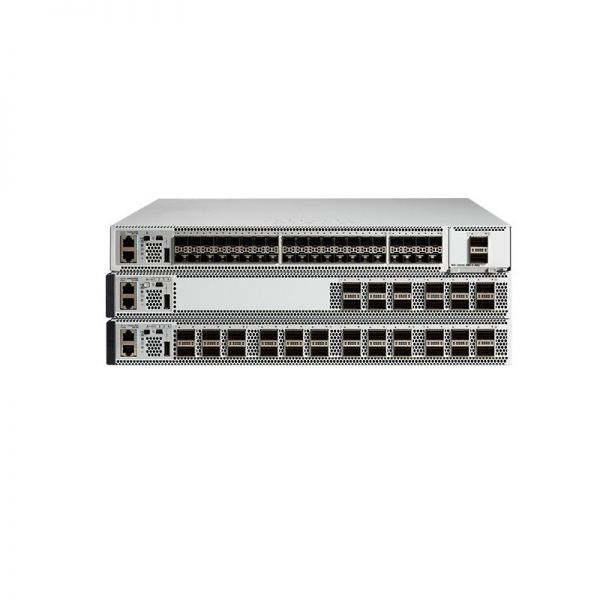

C9500-16X-E is a Cisco Catalyst 9500 16-port 10G switch, NW Ess. License. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
C9500-16X-E |
|
Description |
Cisco Catalyst 9500 16-port 10G switch, NW Ess. License |
|
Switching capacity |
Up to 480 Gbps |
|
Forwarding rate |
Up to 360 Mpps |
|
DRAM |
16 G |
|
Flash |
16 G |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 21.52 in |
|
Rack units (RU) |
1 RU |
Product Details
Highlights of Catalyst 9500 1/10-G 16- and 40-port switches: C9500-16X, C9500-48X
- ¡ñ 16 to 40 ports of 1/10 G with rich campus features
- ¡ñ SFP/SFP+, 8 x 1/10 G or 2 x 40 G uplinks
- ¡ñ Secure segmentation with SD-Access
- ¡ñ MPLS Level 2/3 VPNs, MVPN; flexible design templates
- ¡ñ Enhanced Limited Lifetime Warranty (E-LLW)
Compare to Similar Item
Table 2 shows the comparison.
|
Product Code |
C9500-16X-E |
C9500-32C-A |
|
Description |
Cisco Catalyst 9500 16-port 10G switch, NW Ess. License |
Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Adv. License |
|
Switching capacity |
Up to 480 Gbps |
Up to 6.4 Tbps |
|
Forwarding rate |
Up to 360 Mpps |
Up to 2 Bpps |
|
DRAM |
16 G |
16 G |
|
Flash |
16 G |
16 G |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 21.52 in |
1.73 x 17.5 x 21.2 in |
|
Rack units (RU) |
1 RU |
1RU |
Before Purchasing
Do you have any question about the Cisco C9500-16X-E?
Contact us – Email Live Chat or [email protected].
C9500-16X-E Datasheet
C9500-16X-E Specifications |
|
|
Performance specifications |
|
|
Switching capacity |
Up to 480 Gbps |
|
Forwarding rate |
Up to 360 Mpps |
|
Total number of MAC addresses |
Up to 64,000 |
|
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) |
Up to 64,000 indirect Up to 80,000 host |
|
Total number of IPv6 routes |
Up to 32,000 indirect Up to 40,000 host |
|
QoS ACL scale |
Up to 18000 |
|
Security ACL scale |
Up to 18000 |
|
FNF entries |
Up to 512,000 |
|
DRAM |
16 GB |
|
Flash |
16 GB |
|
VLAN IDs |
4000 |
|
Total Switched Virtual Interfaces (SVIs) |
4000 |
|
Jumbo frame |
9198 bytes |
|
Power supply specifications |
|
|
Power Supply Selection |
PWR-C4-950WAC-R or PWR-C4-950WDC-R |
|
Power max rating |
950 W |
|
Dimensions, physical specifications, weight, and MTBF |
|
|
Dimensions (H x W x D) |
1.73 x 17.5 x 21.52 in |
|
Rack units (RU) |
1 RU |
|
Input voltage |
90 to 264 VAC |
|
Operating temperature |
32¡ã to 104¡ãF (0¡ã to 40¡ãC) |
|
Storage temperature |
-4¡ã to 149¡ãF (-20¡ã to 65¡ãC) |
|
Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
|
Altitude |
Operation up to 6000 feet at 55¡ãC and 13,000 feet at 45¡ãC |
|
MTBF (hours) |
315,790 |
