Product Model: C9410R-96U-BNDL-E

Retail Price: US$16,538.00

Email Us To Get Special Price Today: [email protected]

Catalyst 9400 Series 10 slot,Sup, 2xC9400-LC-48U, DNA-E?LIC. The Cisco Catalyst? 9400 Series switches are Cisco¡¯s leading modular enterprise switching access platform built for security, IoT and cloud. The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE).

Quick Specs

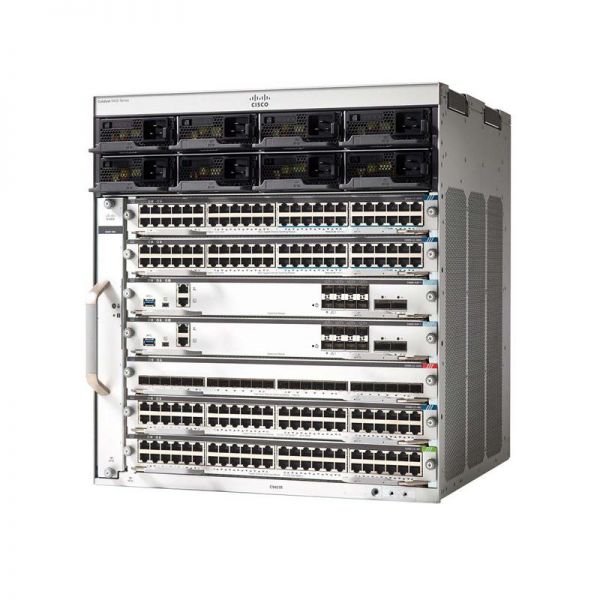

Figure 1 shows the appearance of C9410R-96U-BNDL-E

Table 1 shows the Quick Specs.

Feature	C9410R-96U-BNDL-E
Total number of slots	10
Line-card slots	8
Supervisor engine slots	2
Dedicated supervisor engine slot numbers	5 and 6
Supervisor engine redundancy	Yes
Supervisor engines supported	C9400-SUP-1
Maximum PoE per slot	2880W
Maximum Bandwidth scalability per line-card slot	Up to 480 Gbps on all slots
Number of power supply bays	8
AC input power	Yes
Integrated PoE	Yes
Power supplies supported	3200W AC
Number of fan-tray bays	1
Location of 19-inch rack-mount	Front
Dimensions (H x W x D)	22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70cm)
Rack Units (RU)	13 RU
Chassis weight (with fan tray)	65.0 lb (29.48 kg)
Mounting	19-in. rack compatible (19-in. rack and cable guide hardware included)
Regulatory compliance	22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70cm)
Safety	● ??UL 60950-1 ● ??CAN/CSA-C222.2 No. 60950-1 ● ??EN 60950-1 ● ??IEC 60950-1 ● ??AS/NZS 60950.1 ● ??IEEE 802.3
EMC	● ??47 CFR Part 15 ● ??CISPR22 Class A ● ??KN 32 Class A ● ??EN 300 386 V1.6.1 ● ??EN 55022 Class A ● ??EN 55032 Class A ● ??CISPR 32 Class A ● ??EN61000-3-2 ● ??EN61000-3-3 ● ??ICES-003 Class A ● ??TCVN 7189 Class A ● ??V-3 Class A ● ??CNS13438 Class A ● ??CISPR24 ● ??EN 300 386 ● ??EN55024 ● ??TCVN 7317 ● ??KN35
Industry EMC, safety, and environmental standards	● ??NEBS: Operating temperature: -5 to 55C ● ??Relative Humidity: 10-93% ● ??Operating Altitude: up to 1829 m (6000 ft) at 55C ● ??ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. ● ??SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) ● ??ETS 300 019-2-1, Class 1.2 Storage ● ??ETS 300 019-2-2, Class 2.3 Transportation ● ??ETS 300 019-2-3, Class 3.2 Stationary ● ??EN50121-4 ● ??EN 300 386
ROHS compliance	ROHS5

The?Modules, Cards

Table 2 shows the recommended elements for the C9410R-96U-BNDL-E

Model	Description
Cards
C9400-SUP-1-B	Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option
Power Supply?
C9400-PWR-3200AC	Cisco Catalyst 9400 Series 3200W AC Power Supply

Compare to Similar Items

Table 3?shows the comparison between C9407R-96U-BNDL-E and C9410R-96U-BNDL-E

Feature	C9407R-96U-BNDL-E	C9410R-96U-BNDL-E
Total number of slots	7	10
Line-card slots	5	8
Supervisor engine slots	2	2
Dedicated supervisor engine slot numbers	3 and 4	5 and 6
Supervisor engine redundancy	Yes	Yes
Supervisor engines supported	C9400-SUP-1	C9400-SUP-1
Maximum PoE per slot	2880W	2880W
Maximum Bandwidth scalability per line-card slot	Up to 480 Gbps on all slots	Up to 480 Gbps on all slots
Number of power supply bays	8	8
AC input power	Yes	Yes
Integrated PoE	Yes	Yes
Power supplies supported	3200W AC	3200W AC
Number of fan-tray bays	1	1
Location of 19-inch rack-mount	Front	Front

Before Purchasing

Do you have any question about the Cisco C9410R-96U-BNDL-E

Specification

C9410R-96U-BNDL-E Datasheet

C9410R-96U-BNDL-E Specification
Total number of slots	10
Line-card slots	8
Supervisor engine slots	2
Dedicated supervisor engine slot numbers	5 and 6
Supervisor engine redundancy	Yes
Supervisor engines supported	C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y
Maximum PoE per slot	2880W
Maximum Bandwidth scalability per line-card slot	Up to 480 Gbps on all slots
Number of power supply bays	8
AC input power	Yes
Integrated PoE	Yes
Power supplies supported	3200W AC, 2100W AC
Number of fan-tray bays	1
Location of 19-inch rack-mount	Front
Dimensions (H x W x D)	22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70cm)
Rack Units (RU)	13 RU
Chassis weight (with fan tray)	65.0 lb (29.48 kg)
Mounting	19-in. rack compatible (19-in. rack and cable guide hardware included)
Regulatory compliance	22.61 x 17.30 x 16.30 in. (57.43 x 43.97 x 31.70cm)
Safety	¡ñ UL 60950-1 ¡ñ CAN/CSA-C222.2 No. 60950-1 ¡ñ EN 60950-1 ¡ñ IEC 60950-1 ¡ñ AS/NZS 60950.1 ¡ñ IEEE 802.3
EMC	¡ñ 47 CFR Part 15 ¡ñ CISPR22 Class A ¡ñ KN 32 Class A ¡ñ EN 300 386 V1.6.1 ¡ñ EN 55022 Class A ¡ñ EN 55032 Class A ¡ñ CISPR 32 Class A ¡ñ EN61000-3-2 ¡ñ EN61000-3-3 ¡ñ ICES-003 Class A ¡ñ TCVN 7189 Class A ¡ñ V-3 Class A ¡ñ CNS13438 Class A ¡ñ CISPR24 ¡ñ EN 300 386 ¡ñ EN55024 ¡ñ TCVN 7317 ¡ñ KN35
Industry EMC, safety, and environmental standards	¡ñ NEBS: Operating temperature: -5 to 55C ¡ñ Relative Humidity: 10-93% ¡ñ Operating Altitude: up to 1829 m (6000 ft) at 55C ¡ñ ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. ¡ñ SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) ¡ñ ETS 300 019-2-1, Class 1.2 Storage ¡ñ ETS 300 019-2-2, Class 2.3 Transportation ¡ñ ETS 300 019-2-3, Class 3.2 Stationary ¡ñ EN50121-4 ¡ñ EN 300 386
ROHS compliance	ROHS5
