Product Model: C9407R=

Retail Price: US$2,916.78

Email Us To Get Special Price Today: [email protected]

Cisco Catalyst 9400 Series 7 slot chassis. The Cisco Catalyst? 9400 Series switches are Cisco’s leading modular enterprise switching access platform built for security, IoT and cloud. The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE).

Quick Specs

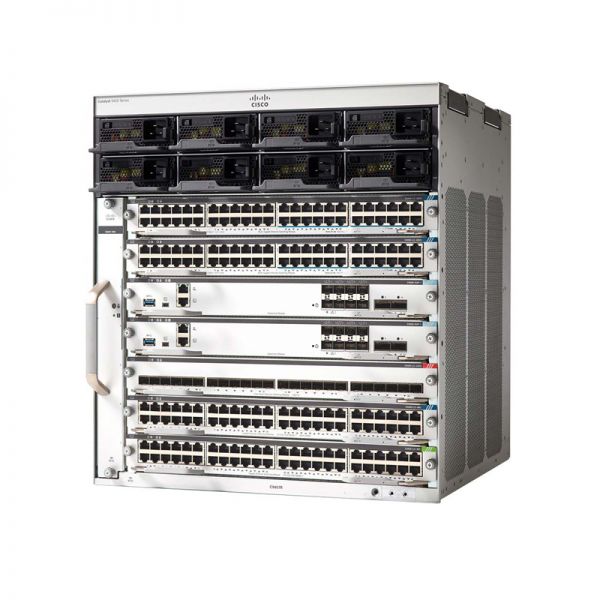

Figure 1 shows the appearance of C9407R=.

Table 1 shows the Quick Specs.

Feature	Cisco Catalyst C9407R?
Total number of slots	7
Line-card slots	5
Supervisor engine slots	2
Dedicated supervisor engine slot numbers	3 and 4
Supervisor engine redundancy	Yes
Supervisor engines supported	C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y
Maximum PoE per slot	2880W
Maximum Bandwidth scalability per line-card slot	Up to 480 Gbps on all slots
Number of power supply bays	8
AC input power	Yes
Integrated PoE	Yes
Power supplies supported	3200W AC, 2100W AC
Number of fan-tray bays	1
Location of 19-inch rack-mount	Front
Dimensions (H x W x D)	17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm)
Rack Units (RU)	10 RU
Chassis weight (with fan tray)	63.0 lb (28.58 kg)
Mounting	19-in rack compatible (19-in. rack and cable guide hardware included)
Regulatory compliance	CE Marking
Safety	● ??UL 60950-1 ● ??CAN/CSA-C222.2 No. 60950-1 ● ??EN 60950-1 ● ??IEC 60950-1 ● ??AS/NZS 60950.1 ● ??IEEE 802.3
EMC	● ??47 CFR Part 15 ● ??CISPR22 Class A ● ??KN 32 Class A ● ??EN 300 386 V1.6.1 ● ??EN 55022 Class A ● ??EN 55032 Class A ● ??CISPR 32 Class A ● ??EN61000-3-2 ● ??EN61000-3-3 ● ??ICES-003 Class A ● ??TCVN 7189 Class A ● ??V-3 Class A ● ??CNS13438 Class A ● ??CISPR24 ● ??EN 300 386 ● ??EN55024 ● ??TCVN 7317 ● ??KN35
Industry EMC, safety, and environmental standards	● ??NEBS: Operating temperature: -5 to 55C ● ??Relative Humidity: 10-93% ● ??Operating Altitude: up to 1829 m (6000 ft) at 55C ● ??ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. ● ??SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) ● ??ETS 300 019-2-1, Class 1.2 Storage ● ??ETS 300 019-2-2, Class 2.3 Transportation ● ??ETS 300 019-2-3, Class 3.2 Stationary ● ??EN50121-4 ● ??EN 300 386
ROHS compliance	ROHS5

The?Modules, Cards

Table 2 shows the recommended elements for the C9407R=.

Model	Description
Modules
C9400-SUP-1=	Cisco Catalyst 9400 Series Supervisor 1 Module
C9400-SUP-1XL-Y	Cisco Catalyst 9400 Series Supervisor 1XL-Y with 25G Module
C9400-SUP-1XL-Y/2	Cisco Catalyst 9400 Series Redundant Supervisor 1XL-Y with 25G Module
Power Supply?
C9400-PWR-3200AC	Cisco Catalyst 9400 Series 3200W AC Power Supply
C9400-PWR-2100AC	Cisco/Cisco Switches/Cisco Switch Catalyst 9400/Cisco Switch Catalyst 9400 Accessories

Compare to Similar Items

Table 3?shows the comparison.

Feature	Cisco Catalyst C9404R	Cisco Catalyst C9407R	Cisco Catalyst C9410R
Total number of slots	4	7	10
Line-card slots	2	5	8
Supervisor engine slots	2	2	2
Dedicated supervisor engine slot numbers	2 and 3	3 and 4	5 and 6
Supervisor engine redundancy	Yes	Yes	Yes
Supervisor engines supported	C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y	C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y	C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y
Maximum PoE per slot	2880W	2880W	2880W
Maximum Bandwidth scalability per line-card slot	Up to 480 Gbps on all slots	Up to 480 Gbps on all slots	Up to 480 Gbps on all slots
Number of power supply bays	4	8	8
AC input power	Yes	Yes	Yes
Integrated PoE	Yes	Yes	Yes
Power supplies supported	3200W AC, 2100W AC	3200W AC, 2100W AC	3200W AC, 2100W AC

Before Purchasing

Do you have any question about the Cisco C9407R=

Specification

C9407R= Datasheet

Cisco Catalyst C9407R Specification
Total number of slots	7
Line-card slots	5
Supervisor engine slots	2
Dedicated supervisor engine slot numbers	3 and 4
Supervisor engine redundancy	Yes
Supervisor engines supported	C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y
Maximum PoE per slot	2880W
Maximum Bandwidth scalability per line-card slot	Up to 480 Gbps on all slots
Number of power supply bays	8
AC input power	Yes
Integrated PoE	Yes
Power supplies supported	3200W AC, 2100W AC
Number of fan-tray bays	1
Location of 19-inch rack-mount	Front
Dimensions (H x W x D)	17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm)
Rack Units (RU)	10 RU
Chassis weight (with fan tray)	63.0 lb (28.58 kg)
Mounting	19-in rack compatible (19-in. rack and cable guide hardware included)
Regulatory compliance	CE Marking
Safety	¡ñ UL 60950-1 ¡ñ CAN/CSA-C222.2 No. 60950-1 ¡ñ EN 60950-1 ¡ñ IEC 60950-1 ¡ñ AS/NZS 60950.1 ¡ñ IEEE 802.3
EMC	¡ñ 47 CFR Part 15 ¡ñ CISPR22 Class A ¡ñ KN 32 Class A ¡ñ EN 300 386 V1.6.1 ¡ñ EN 55022 Class A ¡ñ EN 55032 Class A ¡ñ CISPR 32 Class A ¡ñ EN61000-3-2 ¡ñ EN61000-3-3 ¡ñ ICES-003 Class A ¡ñ TCVN 7189 Class A ¡ñ V-3 Class A ¡ñ CNS13438 Class A ¡ñ CISPR24 ¡ñ EN 300 386 ¡ñ EN55024 ¡ñ TCVN 7317 ¡ñ KN35
Industry EMC, safety, and environmental standards	¡ñ NEBS: Operating temperature: -5 to 55C ¡ñ Relative Humidity: 10-93% ¡ñ Operating Altitude: up to 1829 m (6000 ft) at 55C ¡ñ ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. ¡ñ SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) ¡ñ ETS 300 019-2-1, Class 1.2 Storage ¡ñ ETS 300 019-2-2, Class 2.3 Transportation ¡ñ ETS 300 019-2-3, Class 3.2 Stationary ¡ñ EN50121-4 ¡ñ EN 300 386
ROHS compliance	ROHS5
