Product Model: C9300L-24P-4X-A
Retail Price: US$1,602.00
Email Us To Get Special Price Today: [email protected]
Cisco Catalyst 9300 Series is the next generation of the industrys most widely deployed stackable switching platform. Built for security, IoT, and the cloud, these network switches form the foundation for Ciscos Software-Defined Access, our leading enterprise architecture. Cisco Catalyst 9300L switches are the Catalyst 9300 switches with fixed modules.
Product Details

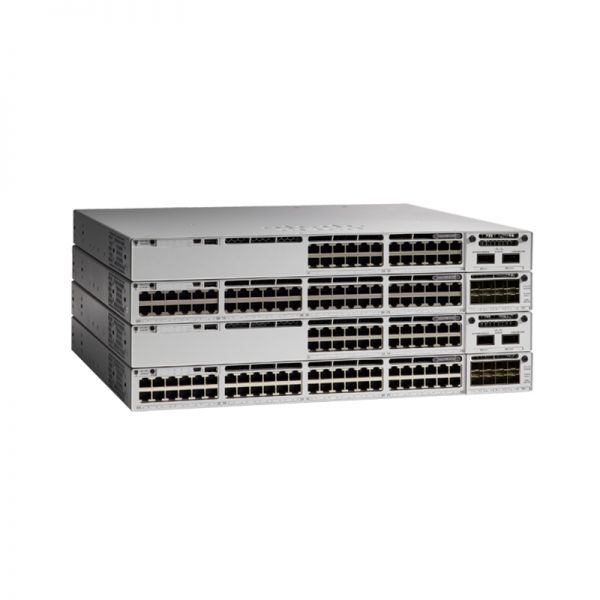

Figure 1 shows the appearance of C9300L-24P-4X-A.
Table 1 shows the models list.
|
SKU |
Description |
|
C9300L-24T-4G-E |
Catalyst 9300 24-port fixed uplinks data only, 4X1G uplinks, Network Essentials |
|
C9300L-24T-4G-A |
Catalyst 9300 24-port fixed uplinks data only, 4X1G uplinks, Network Advantage |
|
C9300L-24P-4G-E |
Catalyst 9300 24-port fixed uplinks PoE+, 4X1G uplinks, Network Essentials |
|
C9300L-24P-4G-A |
Catalyst 9300 24-port fixed uplinks PoE+, 4X1G uplinks, Network Advantage |
|
C9300L-48T-4G-E |
Catalyst 9300 48-port fixed uplinks data only, 4X1G uplinks, Network Essentials |
|
C9300L-48T-4G-A |
Catalyst 9300 48-port fixed uplinks data only, 4X1G uplinks, Network Advantage |
|
C9300L-48P-4G-E |
Catalyst 9300 48-port fixed uplinks PoE+, 4X1G uplinks, Network Essentials |
|
C9300L-48P-4G-A |
Catalyst 9300 48-port fixed uplinks PoE+, 4X1G uplinks, Network Advantage |
|
C9300L-48PF-4G-E |
Catalyst 9300 48-port fixed uplinks Full PoE+, 4X1G uplinks, Network Essentials |
|
C9300L-48PF-4G-A |
Catalyst 9300 48-port fixed uplinks Full PoE+, 4X1G uplinks, Network Advantage |
|
C9300L-24T-4X-E |
Catalyst 9300 24-port fixed uplinks data only, 4X10G uplinks, Network Essentials |
|
C9300L-24T-4X-A |
Catalyst 9300 24-port fixed uplinks data only, 4X10G uplinks, Network Advantage |
|
C9300L-24P-4X-E |
Catalyst 9300 24-port fixed uplinks PoE+, 4X10G uplinks, Network Essentials |
|
C9300L-24P-4X-A |
Catalyst 9300 24-port fixed uplinks PoE+, 4X10G uplinks, Network Advantage |
|
C9300L-48T-4X-E |
Catalyst 9300 48-port fixed uplinks data only, 4X10G uplinks, Network Essentials |
|
C9300L-48T-4X-A |
Catalyst 9300 48-port fixed uplinks data only, 4X10G uplinks, Network Advantage |
|
C9300L-48P-4X-E |
Catalyst 9300 48-port fixed uplinks PoE+, 4X10G uplinks, Network Essentials |
|
C9300L-48P-4X-A |
Catalyst 9300 48-port fixed uplinks PoE+, 4X10G uplinks, Network Advantage |
|
C9300L-48PF-4X-E |
Catalyst 9300 48-port fixed uplinks Full PoE+, 4X10G uplinks, Network Essentials |
|
C9300L-48PF-4X-A |
Catalyst 9300 48-port fixed uplinks Full PoE+, 4X10G uplinks, Network Advantage |
Table 2 shows the supported stacking options.
| Model | C9300L-24P-4X-A |
| Stacking support | StackWise-320 |
| Stacking bandwidth support | 320 Gbps |
| Optional Stacking hardware | C9300L-STACK-KIT Or C9300L-STACK-KIT2 |
| Number of members | 8 |
| Supported stack members |
Stacks with other Catalyst 9300L and 9300LM models with same license level |
Before Purchasing
Do you have any question about the Cisco Catalyst 9300L Switches?
Contact us – Email Live Chat or [email protected].
C9300L-24P-4X-A Datasheet
C9300L-24P-4X-A Specifications |
|
|---|---|
| Dimensions (H x W x D) inches | 1.73 x 17.5 x 16.1 |
| Weights | 14.99 Pounds |
| MTBF (hours) | 340,710 |
| Designed to replace | Catalyst 3850 |
| Supported IOS | Network Advantage, Network Essentials |
| Network modules options | Fixed Modules |
| Stack Technology | StackWise-320 |
| Stacking bandwidth | 320 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | – |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 5,120 |
| ACL scale entries | 5,120 |
| Packet buffer per SKU | 16 MB buffer for 24 and 48 port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Switching capacity | 56 Gbps – 176 Gbps |
| Forwarding rate | 41.66 Mpps – 130.95 Mpps |
