Product Model: C9200L-48PXG-4X-E
Retail Price: US$3,602.00
Email Us To Get Special Price Today: [email protected]

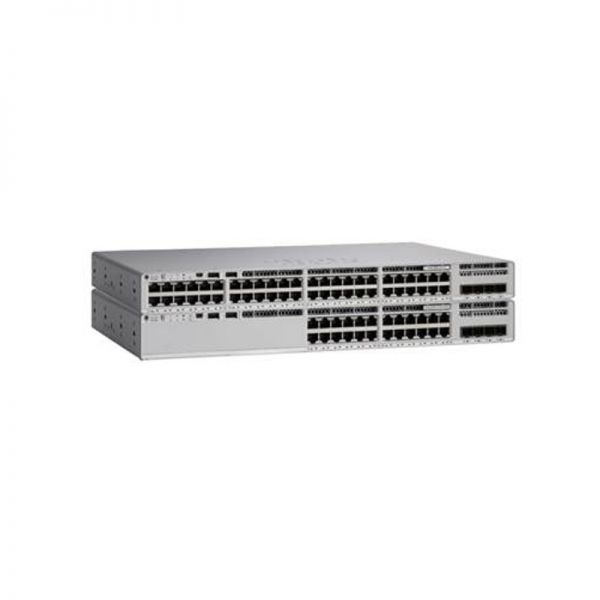

C9200L-48PXG-4X-E is the C9200L 48-p (12xmGig, 36x1G), 4x10G PoE+, Network Essentials. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise ?C it is secure, always on, and IT simplified.
Quick Spec
Table 1 shows the quick spec.
|
Model |
C9200L-48PXG-4X-E |
|
Downlinks total 10/100/1000 or PoE+ copper ports |
48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) |
|
Uplink configuration |
4x 10G fixed uplinks |
|
Default primary AC power supply |
PWR-C5-1KWAC |
|
Fans |
Fixed redundant |
|
Software |
Network Essentials |
|
Stacking bandwidth |
80 Gbps |
|
DRAM |
2 GB |
|
Flash |
4 GB |
|
Switching capacity |
392 Gbps |
|
Forwarding rate |
291.66 Mpps |
|
Chassis Dimensions |
1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
Product Details
Catalyst 9200 series provides these highlights:
- ¡ñ Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
- ¡ñ Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
- ¡ñ Flexible downlink options with data or PoE+
- ¡ñ Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- ¡ñ UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- ¡ñ Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
- ¡ñ Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- ¡ñ Advanced network monitoring using Full Flexible NetFlow
- ¡ñ Cisco Software-Defined Access (SD-Access):
- ¡ñ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
- ¡ñ Network assurance and improved resolution time through Cisco DNA Center
- ¡ñ Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
- ¡ñ Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming
- ¡ñ ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries telemetry
Supported Products
Table 2 shows the recommended supported products.
|
StackWise-80 and StackWise-160 Kit and cables |
|
|
Product number |
Product description |
|
C9200L-STACK-KIT= |
C9200L Stack Kit Spare |
|
STACK-T4-50CM |
50CM Type 3 Stacking Cable |
|
STACK-T4-1M |
1M Type 3 Stacking Cable |
|
STACK-T4-3M |
3M Type 3 Stacking Cable |
|
Soft Licenses |
|
|
Product number |
Product description |
|
C9200L-DNA-P-48 |
C9200L DNA Premier Term, 48-Port: Includes Term Licenses for DNA Advantage, 25 ISE Base & 25 ISE Plus Endpoints, 25 Stealthwatch Flows (including Virtual Flow Collector & Management Console). Requires separate purchase of ISE appliance/ISE VM and DNA Center appliance |
|
C9200L-DNA-P-48-3Y |
C9200L DNA Premier, 48-port, 3Y Term ?C DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
|
C9200L-DNA-P-48 -5Y |
C9200L DNA Premier, 48-port, 5Y Term ?C DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
|
C9200L-DNA-P-48 -7Y |
C9200L DNA Premier, 48-port, 7Y Term ?C DNA, 25 ISE PLS and ISE BASE, 25 SWATCH |
|
Power supplies |
|
|
Product Number |
Product Description |
|
PWR-C5-1KWAC/2= |
1000WAC power supply spare |
Compare to Similar Items
Table 3 shows the comparison.
|
Model |
Downlinks |
Uplinks |
Power Supply |
Fans |
|
C9200L-24PXG-4X-E |
24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) |
4x 10G fixed uplinks |
PWR-C5-600WAC |
Fixed redundant |
|
C9200L-48PXG-4X-E |
48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) |
4x 10G fixed uplinks |
PWR-C5-1KWAC |
Fixed redundant |
|
C9200L-24PXG-2Y-E |
24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) |
2x 25G fixed uplinks |
PWR-C5-600WAC |
Fixed redundant |
|
C9200L-48PXG-2Y-E |
48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) |
2x 25G fixed uplinks |
PWR-C5-1KWAC |
Fixed redundant |
Before Purchasing
Do you have any question about the C9200L-48PXG-4X-E?
Contact us now via Live Chat or [email protected].
C9200L-48PXG-4X-E Datasheet
C9200L-48PXG-4X-E Specifications |
|
| Performance specifications | |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24 or 48-port Gigabit Ethernet models, 12 MB buffers for 24 or 48-port multigigabit models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24 and 48-port Gigabit Ethernet models, 32,000 flows on 24 or 48-port multigigabit models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| PVST Instances | 128 |
| STP Virtual Ports (Port *VLANs) for PVST |
13,000 |
| STP Virtual Ports (Port *VLANs) for MST |
13,000 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| IP SGT binding scale | 10K |
| Number of IPv4 bindings | 10K |
| Number of SGT/DGT policies | 2K |
| Number of SXP Sessions | 200 |
| Bandwidth specifications | |
| Switching capacity | 392 Gbps |
| Switch capacity with Stacking | 472 Gbps |
| Forwarding rate | 291.66 Mpps |
| Forwarding rate with Stacking | 351 Mpps |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 Inches |
| Weight | 12.6 Pounds |
| Mean time between failures (hours) | 337,360 |
