C9200-24P-E – Cisco Switch Catalyst 9200 Price & Product Datasheet

Product Model: C9200-24P-E

Retail Price: US$953.00

Email Us To Get Special Price Today: [email protected]

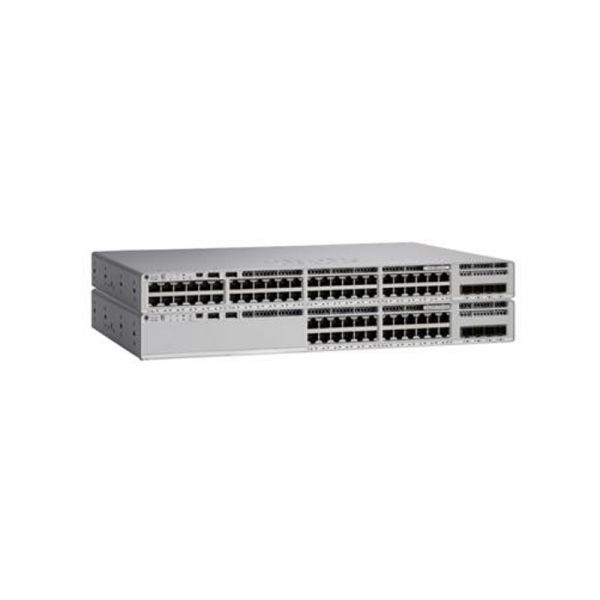

C9200-24P-E is the Catalyst 9200 24-port PoE+ Switch, withNetwork Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.

Quick Spec

Table 1 shows the quick spec.

Model	C9200-24P-E
Downlinks total 10/100/1000 or PoE+ copper ports	24-port PoE+
Uplink configuration	Modular uplink options
Default primary AC power supply	PWR-C6-600WAC
Fans	FRU redundant
Software	Network Essentials
Stacking bandwidth	160 Gbps
DRAM	4 GB
Flash	4 GB
Switching capacity	128 Gbps
Forwarding rate	190.4 Mpps
Chassis Dimensions	1.73 x 17.5 x 13.8in 4.4 x 44.5 x 35.0 cm

Product Details

Catalyst 9200 series provides these highlights:

• ¡ñ Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
• ¡ñ Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
• ¡ñ Flexible downlink options with data or PoE+
• ¡ñ Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
• ¡ñ UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
• ¡ñ Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
• ¡ñ Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
• ¡ñ Advanced network monitoring using Full Flexible NetFlow
• ¡ñ Cisco Software-Defined Access (SD-Access):
• ¡ñ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
• ¡ñ Network assurance and improved resolution time through Cisco DNA Center
• ¡ñ Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
• ¡ñ Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
• ¡ñ ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Supported Products

Table 2 shows the recommended supported products.

Network modules
Product number	Product description
C9200-NM-4G	Catalyst 9200 4 x 1GE Network Module
C9200-NM-4X	Catalyst 9200 4 x 10GE Network Module, spare
C9200-NM-BLANK	Catalyst 9200 BLANK Network Module
StackWise-80 and StackWise-160 Kit and cables
Product number	Product description
C9200-STACK-KIT=	C9200 Stack Kit Spare
C9200L-STACK-KIT=	C9200L Stack Kit Spare
STACK-T4-50CM	50CM Type 3 Stacking Cable
STACK-T4-1M	1M Type 3 Stacking Cable
STACK-T4-3M	3M Type 3 Stacking Cable
Power supplies
Product Number	Product Description
PWR-C6-600WAC	600WAC power supply spare

Compare to Similar Items

Table 3 shows the comparison.

Product number	Product description
C9200-24T-A	Catalyst 9200 24-port Data Switch, Network Advantage
C9200-24T-E	Catalyst 9200 24-port Data Switch, Network Essentials
C9200-24P-A	Catalyst 9200 24-port PoE+ Switch, Network Advantage
C9200-24P-E	Catalyst 9200 24-port PoE+ Switch. Network Essentials

Before Purchasing

Do you have any question about the Cisco C9200-24P-E?

Contact us – Email Live Chat or [email protected].
