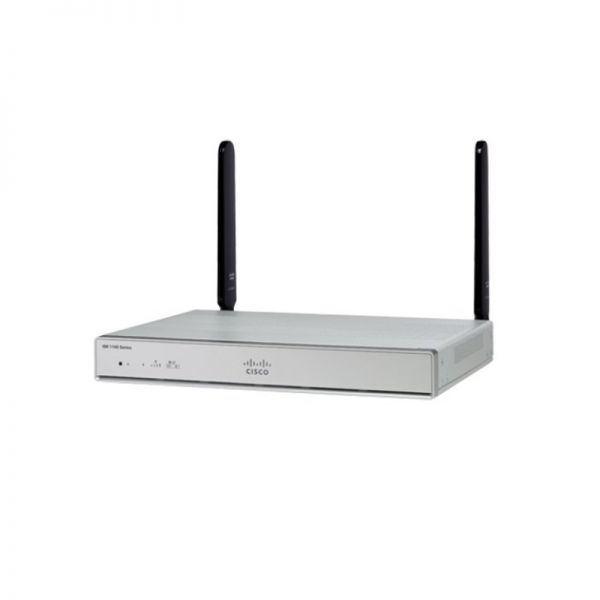

C1113-8PWB – Cisco Router ISR 1100 Price & Datasheet

Model

C1113-8PWB

GE

N/A

GE/SFP combo

1

ADSL2/VDSL2+

1 G.FAST
(Annex A)

LTE Advanced (CAT6)

N/A

802.11ac

2X2 MIMO

GE

8

PoE

4

PoE+

2

Integrated USB 3.0 AUX/console

Yes

Business need

Features/description

Lightweight, compact size with low power consumption

Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors.

High performance to run concurrent services

High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.

High availability and business continuity

Redundant WAN connections for failover protection and load balancing.

Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).

Consistent, high application performance levels

The router can run multiple services simultaneously with minimal performance degradation.

Risk mitigation with multilevel security

Network perimeter security with integrated application inspection firewall.

Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.

High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN

Cisco Umbrellasecurity architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources.

Enforced security policy with OpenDNS.

Security hardware acceleration.

Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.

Encrypted traffic analytics maintain integrity of encrypted flow

Unified control of wired and wireless networks from a common console for streamlined operations

Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.

Supports Mobility Express for WLAN-enabled routers.

Remote configuration and management to keep local IT staff lean

Supports separate console/auxiliary and USB ports.

Can be configured to work with optional USB token.

Supports TR-069.

Performance

Throughput

Service reliability

Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P.

A distributed multicore architecture with the industrys first internal services plane.

Remote installation of application-aware services that run identically to their counterparts in dedicated appliances.

Lower WAN expenditures

Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection.

Pay as you grow: IPsec performance upgrade model

Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management.

IT consolidation, space savings, and improved Total Cost of Ownership (TCO)

Single converged branch platform integrates routing, switching, security, and performance management capabilities.

Business continuity and increased resiliency

The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power toendpoints.

Models

Description

C1-SL-1100-8P-APP

AppX Foundation License for Cisco ISR 1100 8P Series

SL-1100-8P-SEC

Security License for Cisco ISR 1100 8P Series

SL-1100-8P-SECNPE

NPE Security License for Cisco ISR 1100 8P Series

C1-SL-1100-8P-SEC

Security Foundation License for Cisco ISR 1100 8P Series

FL-VPERF-8P-200

IPSEC PLUS 200 Mbps License for Cisco ISR 1100 8P Series

GLC-EX-SMD

1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM.

GLC-LH-SMD

GE SFP, LC connector LX/LH transceiver; with DOM.

GLC-SX-MMD

GE SFP, LC connector SX transceiver; with DOM.

GLC-ZX-SMD

1000BASE-ZX SFP; with DOM.

GLC-FE-100ZX

100BASE-ZX SFP (80km).

GLC-BX-D

1000BASE-BX SFP, 1490NM.

GLC-BX-U

1000BASE-BX SFP, 1310NM.

Model

C1112-8PWE

C1113-8PWB

WAN GE

N/A

N/A

WAN GE/SFP combo

1

1

ADSL2/VDSL2+

1 G.FAST
(Annex B)

1 G.FAST
(Annex A)

LTE Advanced (CAT6)

N/A

N/A

802.11ac

2X2 MIMO

2X2 MIMO

LAN GE

8

8

PoE

4

4

PoE+

2

2

Integrated USB 3.0 AUX/console

Yes

Yes

C1113-8PWB Specification

GE

N/A

GE/SFP combo

1

ADSL2/VDSL2+

1 G.FAST
(Annex A)

LTE Advanced (CAT6)

N/A

802.11ac

2X2 MIMO

GE

8

PoE

4

PoE+

2

Integrated USB 3.0 AUX/console

Yes

Memory (default and maximum)

DRAM: 4 GB

Flash: 4 GB

Console

· Micro USB console (USB 3.0).

Mini-USB port (reserved)

· Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).

802.11ac

· 2×2 SU-MIMO/MU-MIMO with two spatial streams.

· Maximal Ratio Combining (MRC).

· 20-, 40-, and 80-MHz channels.

· PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz).

· Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).

· 802.11 Dynamic Frequency Selection (DFS).

· Cyclic Shift Diversity (CSD) support.

Software

· Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5
(8.7 for 1101 series) MR1 or later.

DSL interfaces

· G.FAST (spectrum up to 106MHz) Annex A, Annex B, Annex M and compatible with ADSL2/2+ and VDSL2.

· ITU G.993.2 (VDSL2) and supported profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, and 35b.

· ITU G.9700/9701/997.2 G.FAST and supported profiles: 106a, and 106b.

External power supply

· AC input voltage: Universal 100 to 240 VAC.

· Frequency: 50 to 60 Hz.

· Maximum output power: 66W (default).

· Output voltages: 12 VDC.

· Optional PoE and PoE+:

◦   Single 150W power supply required for Cisco 1100-8P series router

◦   Single 115W power supply required for Cisco 1100-4P series router

· External output voltage: 48 VDC.

USB 3.0

· USB devices supported:

◦   USB eTokens and USB flash memory

· Note: Devices USB 3.0 supports to be connected externally.

LEDs

· WWAN (green/amber).

· SIM status (green/amber).

· Received signal strength indication (RSSI) bar (green).

· 3G/LTE service (green/amber).

· GPS (green/amber).

· Speed and link for Gigabit Ethernet WAN port (green).

· Speed and link for all Fast Ethernet LAN ports (green).

Physical dimensions

(H x W x D)

C111X Models

·  1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models).

·  1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models).

C1101-4PLTEP and C1101-4PLTEPWX Models

·  1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models).

Weight

C111X Models

· 1.94 lb to 4.59 lb (1.94kg to 2.08 kg).

· 4.50 lb (2.04 kg) with LTE Advanced.

· 4.76 lb (2.16 kg) with Wave 2 802.11ac Dual Radio.

· 4.89 lb (2.22 kg) with LTE Advanced plus Wave 2 802.11ac Dual Radio.

Environmental operating range

· Nonoperating temperature: -4° to 149°F (-0° to 65°C).

· Nonoperating humidity: 5% to 95% relative humidity (noncondensing).

· Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m).

· Operating temperature: 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C).

· Operating humidity: 10% to 85% relative humidity (noncondensing).

· Operating altitude: 0 to 10,000 ft (0 to 3000 m).
