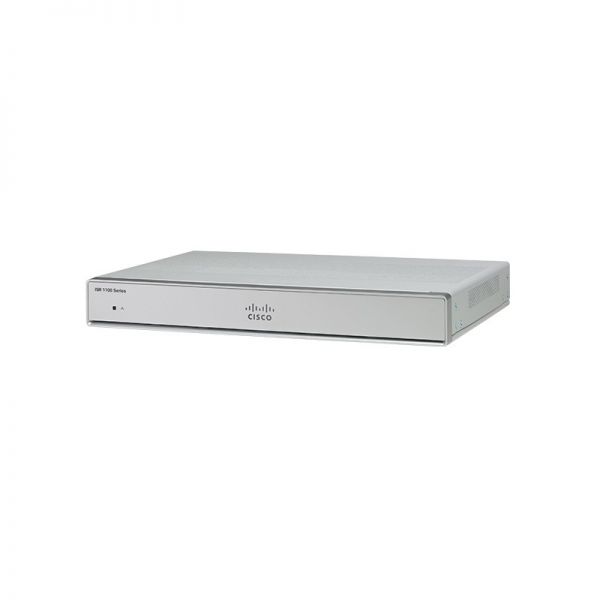

Product Model: C1111-4PLTELA
Retail Price: US$1,366.00
Email Us To Get Special Price Now: [email protected]
Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS? XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1111-4PLTELA is the ISR 1100 Dual GE Ethernet w/ LTE Adv SMS/GPS LATAM and APAC.
Quick Spec
Table 1 shows the quick spec.
|
Model |
C1111-4PLTELA |
|
WAN GE |
1 |
|
WAN GE/SFP combo |
1 |
|
ADSL2/VDSL2+ |
N/A |
|
LTE Advanced (CAT6) |
1 LATAM & APAC |
|
802.11ac |
N/A |
|
LAN GE |
4 |
|
PoE |
2 |
|
PoE+ |
1 |
|
Integrated USB 3.0 AUX/console |
Yes |
|
Dimensions (H x W x D) |
1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet) |
Product Details
Table 2 shows the business benefits
|
Business need |
Features/description |
|
Lightweight, compact size with low power consumption |
��Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. |
|
High performance to run concurrent services |
��High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. |
|
High availability and business continuity |
��?Redundant WAN connections for failover protection and load balancing. ��?Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC?2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
|
Consistent, high application performance levels |
��?The router can run multiple services simultaneously with minimal performance degradation. |
|
Risk mitigation with multilevel security |
��?Network perimeter security with integrated application inspection firewall. ��?Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. ��?High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN ��?Cisco Umbrella??security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. ��?Enforced security policy with OpenDNS. ��?Security hardware acceleration. ��?Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. ��?Encrypted traffic analytics maintain integrity of encrypted flow |
|
Unified control of wired and wireless networks from a common console for streamlined operations |
��?Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. ��?Supports Mobility Express for WLAN-enabled routers. |
|
Remote configuration and management to keep local IT staff lean |
��?Supports separate console/auxiliary and USB ports. ��?Can be configured to work with optional USB token. ��?Supports TR-069. |
|
Performance ��?Throughput ��?Service reliability |
��?Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P. ��?A distributed multicore architecture with the industry��s first internal services plane. ��?Remote installation of application-aware services that run identically to their counterparts in dedicated appliances. |
|
Lower WAN expenditures |
��?Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection. |
|
Pay as you grow: IPsec performance upgrade model |
��?Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management. |
|
IT consolidation, space savings, and improved Total Cost of Ownership (TCO) |
��?Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
|
Business continuity and increased resiliency |
��?The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to?endpoints. |
Product Accessories
Licenses
Table 3 shows the licenses for C1111-4P.
|
Licenses |
Description |
|
SL-1100-4P-APP |
AppX License for Cisco ISR 1100 4P Series |
|
C1-SL-1100-4P-APP |
AppX Foundation License for Cisco ISR 1100 4P Series |
|
SL-1100-4P-SEC |
Security License for Cisco ISR 1100 4P Series |
|
C1-SL-1100-4P-SEC |
Security License for Cisco ISR 1100 4P Series |
|
SL-1100-4P-SECNPE |
NPE Security License for Cisco ISR 1100 4P Series |
Small Form-Factor Pluggable Supported
Table 4 shows the SFP for Cisco 1100 Series Routers.
|
Small Form-Factor Pluggable |
ISR 1100 8P |
ISR 1100 4P |
Description |
|
GLC-EX-SMD |
Yes |
Yes |
1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. |
|
GLC-LH-SMD |
Yes |
Yes |
GE SFP, LC connector LX/LH transceiver; with DOM. |
|
GLC-SX-MMD |
Yes |
Yes |
GE SFP, LC connector SX transceiver; with DOM. |
|
GLC-ZX-SMD |
Yes |
Yes |
1000BASE-ZX SFP; with DOM. |
|
GLC-FE-100ZX |
Yes |
Yes |
100BASE-ZX SFP (80km). |
|
GLC-GE-100FX |
Yes |
Yes |
100FX SFP on GE ports. |
|
GLC-BX-D |
Yes |
Yes |
1000BASE-BX SFP, 1490NM. |
|
GLC-BX-U |
Yes |
Yes |
1000BASE-BX SFP, 1310NM. |
Compare to Similar Item
Table 5 shows the comparison between C1111-4PLTELA and C1117-4P.
|
Model |
C1117-4P |
C1111-4PLTELA |
|
WAN GE |
N/A |
1 |
|
WAN GE/SFP combo |
1 |
1 |
|
ADSL2/VDSL2+ |
1 VA-DSL (Annex A) |
N/A |
|
LTE Advanced (CAT6) |
N/A |
1 LATAM & APAC |
|
802.11ac |
N/A |
N/A |
|
LAN GE |
4 |
4 |
|
PoE |
2 |
2 |
|
PoE+ |
1 |
1 |
|
Integrated USB 3.0 AUX/console |
Yes |
Yes |
Get More Information
Do you have any question about the C1111-4PLTELA?
Contact us now via Live Chat or [email protected].
Specification
C1111-4PLTELA Datasheet
C1111-4PLTELA Specification |
|
|
Description |
ISR 1100 Dual GE Ethernet w/ LTE Adv SMS/GPS LATAM and APAC |
|
Physical Properties |
|
|
Dimensions (H x W x D) |
LTE models: H x W X D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet) |
|
AC Input Power |
|
|
Input voltage |
Universal 100 to 240 VAC |
|
Frequency |
50-60 Hz |
|
Input current |
PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum |
|
Surge current |
90 A peak and less than 8 Arms per half cycle |
|
Ports |
|
|
Micro USB Port |
One RJ-45: Separate console port |
|
USB port |
USB 3.0 Type A host port USB devices supported: USB flash memory |
|
Console port |
One USB 5-pin micro Type B: Console management connectivity |
|
10/100/1000 Gigabit Ethernet |
Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) |
|
Wireless VLANs |
32 (encrypted and non-encrypted VLANs) |
|
Wireless specifications |
2×2 .11ac Wave 2 |
|
Default and maximum DRAM |
4GB |
|
Default and maximum flash |
4GB |
|
Inline PoE |
4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE+ |
|
Acoustic for Cisco 1100 Series ISRs |
Not Applicable – Fanless design |
|
Approvals and compliance |
Emission 47 CFR Part 15
CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
|
Environmental |
|
|
Operating humidity |
5 to 85% relative humidity |
|
Operating temperature |
32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft |
|
Altitude in China |
0-6560 ft (0-2000 m) |
|
Altitude in all other countries |
0-10,000 ft (0-3050 m) |
|
Transportation and Storage |
|
|
Nonoperating temperature |
-40 to 158°F (-40 to 70°C) |
|
Nonoperating humidity |
5 to 95% relative humidity (noncondensing) |
|
Nonoperating altitude |
0 to 15,000 ft (0 to 4570m) |
