Product Model: C1-N9K-C93108EXB24
Retail Price: US$38,636.00
Email Us To Get Special Price Today: [email protected]

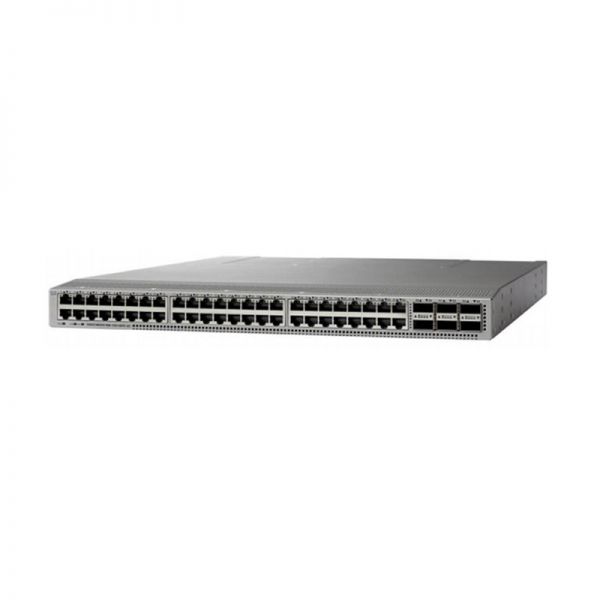

The Cisco C1-N9K-C93108EXB24 is an essential part of modern networking solutions, bringing together the robust features of the Cisco ONE line with the high-performance capabilities of the Nexus 9300 series. This product includes two Cisco 93108TC-FX switches, equipped with eight QSFP-100G-PSM4-S OR QSFP-100G-SR4-S modules. Ideal for data centers and enterprise environments, this device ensures enhanced connectivity and optimized network performance.
Quick Spec
| Model | C1-N9K-C93108EXB24 |
| Switch Series | Cisco Nexus 9300 |
| Port Speed | 100G |
| Included Modules | 8x QSFP-100G-PSM4-S OR QSFP-100G-SR4-S |
| Operational Layer | Layer 3 |
Product Datasheet
- Unified ports providing a mix of Ethernet and Fibre Channel
- Highly scalable with support for up to 1.2 Tbps throughput
- Advanced security features including TrustSec
- Automation capabilities with NX-OS and Cisco ACI
- Energy-efficient design reducing operational costs
Product Applications
- Ideal for data center spine-leaf architectures
- Suitable for high-density 100G campus deployments
- Perfect for environments demanding advanced security and automated operations
Supported Options
| Accessory | Model |
| 100G Optical Transceiver | QSFP-100G-PSM4-S |
| 100G Optical Transceiver | QSFP-100G-SR4-S |
| Power Supply | C9K-PWR-650W-R |
Compare to Similar Items
| Model | Differences |
| N9K-C93180YC-FX | Offers 48 1/10/25-Gbps SFP ports compared to 8 100G QSFP+ ports |
| N9K-C92160YC-X | Supports up to 160 Gbps throughput compared to 1.2 Tbps in C1-N9K-C93108EXB24 |
| N9K-C9332PQ | Includes 32 40-Gbps QSFP ports, differing in speed and scalability |
Before Purchasing
For further details about the Cisco C1-N9K-C93108EXB24, including pricing information, please contact us through Live Chat or email us at [email protected].
Specification
C1-N9K-C93108EXB24 Datasheet
C1-N9K-C93108EXB24 Specifications | |
| Brand | Cisco |
| Model | C1-N9K-C93108EXB24 |
| Network Type | Switch |
| Ports | 48 x 10GBASE-T |
| Uplinks | 6 x 100-Gigabit QSFP28 |
| Switching Capacity | 3.6 Tbps |
| Forwarding Rate | 2.6 Bpps |
| Latency | Sub-1 microsecond |
| Power Supply | Dual redundant power supplies |
| Power Consumption | 500W typical |
| Dimensions | 1.72 x 17.3 x 18 inches |
| Operating Temperature | 32??F to 104??F (0??C to 40??C) |
| Storage Temperature | -40??F to 158??F (-40??C to 70??C) |
| Humidity | 5% to 95% (non-condensing) |
| Airflow Direction | Front-to-back |
| Warranty | Limited lifetime warranty |
| Software Image | Cisco NX-OS |
| MTBF | 490,000 hours |
| Management | Cloud-based or on-premise management |
| Compliance | RoHS, UL, CE, FCC |
