Product Model: ASR1013
Retail Price: US$9,566.00
Email Us To Get Special Price Now: [email protected]

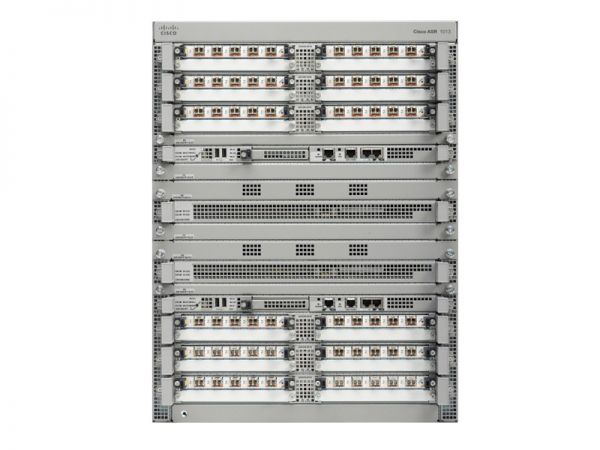

This product is Cisco ASR 1013 Chassis, Dual P/S. Before the router operates, necessary components must be installed. About its configuration, you cancontact us via Live Chat or [email protected].
The Cisco ASR 1013 Router supports full-width card modules. It is designed with a single midplane with connectors on one interface midplane. The Cisco ASR 1013 Router supports:
?? Up to 6 ASR1000-SIP40G shared port adapter modules
?? Up to 24 shared port adapters (SPAs) and up to six SIPs
?? Two embedded services processors
?? Cisco ASR1000-RP2 route processor
?? Quad power supplies (redundant pairs) by default; option of either AC or DC power supplies and two power supply zones.
Quick Specs
|
Models |
ASR1013 |
|
Scalability |
40 to 200 Gbps |
|
Targeted for |
Large enterprise Internet edge, service provider |
|
Rack Height |
13U |
|
Shared port adapters |
24 |
|
Ethernet port adapters |
12 |
|
Embedded services processor slots |
2 |
|
Route processor slots |
2 |
|
Number of SPA interface processors (SIPs) supported |
6 |
|
Redundancy |
Yes: Hardware |
|
Dimension (H x W x D) |
579.1 x 437.4 x 461.0mm |
The System Level Components
These components should be purchased seperately.
|
Components |
Models |
Details |
|
SPA Interface Processor |
Cisco ASR1000-SIP40 |
Cisco ASR1000 Series SPA Interface Processor 40G |
|
Embedded Services Processor |
Cisco ASR1000-ESP40 |
Cisco ASR 1000 Processor ASR1000-ESP40 |
|
Cisco ASR1000-ESP100 |
Cisco ASR 1000 Processor ASR1000-ESP100 |
|
|
Cisco ASR1000-ESP200 |
Cisco ASR 1000 Processor ASR1000-ESP200 |
|
|
Route Processor |
ASR1000-RP2 |
Cisco ASR 1000 Processor ASR1000-RP2 |
Compare to Similar Items
|
Models |
ASR1001 |
ASR1001-X |
ASR1002 |
ASR1002-X |
ASR1004 |
ASR1006 |
ASR1013 |
|
Scalability |
2.5 to 5 Gbps |
2.5 to 20 Gbps |
2.5 to 5, 10, 20Gbps |
5 to 36 Gbps |
10 to 40 Gbps |
10 to 100 Gbps |
40 to 200 Gbps |
|
Rack Height |
1U |
1U |
2U |
2U |
4U |
6U |
13U |
|
SFP Ports |
4 x 1G |
6 x 1 G |
4 x 1G |
6 x 1G |
Optional |
Optional |
Optional |
|
SPA slots |
1 |
1 |
3 |
3 |
8 |
12 |
24 |
|
SIP Slots |
Integrated |
Integrated |
Integrated |
Integrated |
2 |
3 |
6 |
|
ESP Slots |
Integrated |
Integrated |
1 |
Integrated |
1 |
2 |
2 |
|
RP Slots |
Integrated |
Integrated |
Integrated |
Integrated |
1 |
2 |
2 |
Get more information
Do you have any question about the Cisco ASR1013
Contact us now via Live Chat or [email protected].
Specification
ASR1013 Datasheet
ASR1013 Specification |
|
|
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 22.8 in. (579.1 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: ● 184.0 lb (83.46 kg) (with redundant AC power supply, SPA, route processor, SIP blank covers, two Cisco ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100] or ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], six Cisco ASR 1000 Series 40-Gbps SIPs [ASR1000-SIP40], and no SPAs) |
|
Default memory |
8-GB DRAM RP2 8-GB DRAM RP3 |
|
Number of SIPs or Ethernet line cards supported |
6 |
|
Shared port adapters |
24 SPA slots |
|
Ethernet port adapters |
12 EPA slots |
|
Cisco ASR 1000 Series ESP |
2 ESP slots |
|
Route processor |
2 route-processor slots |
|
Redundancy |
Hardware: Yes |
|
Built-in Gigabit Ethernet ports |
0 |
|
Built-in 10 Gigabit Ethernet port |
No |
|
Network interface module |
No |
|
Cisco ASR 1000 Series |
Cisco ASR 1013 |
|
ESP support |
Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40), |
|
ESP bandwidth |
40 to 200 Gbps |
|
ESP memory |
Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40): Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200): 32-GB DRAM |
|
SIPs and Ethernet line cards |
Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE (ASR1000-2T+20X1GE) line cards; and six 10 GE line cards (ASR1000-6TGE) |
|
Embedded hardware-based encryption |
Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput, Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput, and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) with up to 78-Gbps crypto support throughput |
|
Minimum Cisco IOS XE Software release |
Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) requires Cisco IOS XE Software Release 3.1.0S, ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) requires Cisco IOS XE Software Release 3.7.0S, and ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) requires Cisco IOS XE Software Release 3.10.0S |
|
Rack-mounting |
Yes: 19-inch |
|
Wall-mounting |
No |
|
External USB flash memory |
1-GB USB flash-memory support |
|
Redundant power supply |
Yes: Quad power supplies (redundant pairs) by default; option of either AC or DC power supplies Note: A mix of AC and DC power supplies is not supported. |
|
Power input |
Worldwide ranging AC (180 to 264V; 240V; 60 or 50 Hz nominal) Worldwide ranging DC (-40.5 to |
|
Power consumption |
● Maximum (DC): 4200W ● Maximum (AC-high line): 4000W ● Maximum (out): 3390W |
|
Airflow |
Front-to-back |
|
Operating temperature (nominal) |
Same as for Cisco ASR 1001-X |
|
Operating temperature (short-term) |
Same as for Cisco ASR 1001-X |
|
Operating humidity (nominal) (relative humidity) |
Same as for Cisco ASR 1001-X |
|
Operating humidity (short-term) |
Same as for Cisco ASR 1002 |
|
Storage temperature |
Same as for Cisco ASR 1001-X |
|
Storage humidity (relative humidity) |
Same as for Cisco ASR 1001-X |
|
Operating altitude |
Same as for Cisco ASR 1001-X |
|
Network Equipment Building Standards (NEBS) |
GR-1089 and GR-63 |
|
EMC standards |
Same as for Cisco ASR 1001-X |
|
Safety Standard |
|
