Product Model: ASR1006-X
Retail Price: US$8,606.00
Email Us To Get Special Price Now: [email protected]
ASR1006-X is a Cisco ASR1006-X Chassis. The Cisco ASR 1006-X Router in a 6-rack unit (RU) form factor is providing the most flexible edge routing solution in the Cisco ASR 1000 Series. It supports: dual routing processors, embedded services processor, up to 100 Gbps throughput, up to 8 shared port adapters (SPAs), and the highest port density solution of the three Cisco ASR 1000 Routers.
Quick Spec
Table 1 shows the quick spec.
|
Part Number |
ASR1006-X |
|
Route Processor |
2 route-processor slots |
|
Cisco ASR 1000 Series ESP |
2 ESP slots |
|
Ethernet Port Adapters |
4 EPA slots |
|
Shared Port Adapters |
8 SPA slots |
|
Number of SIPs or Ethernet line cards supported |
2 |
|
Default Memory |
8-GB DRAM RP2 8-GB DRAM RP3 |
|
Dimension |
Height: 10.47 in. (265.9 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) |
|
Weight |
36.5 lb empty |
Product Details

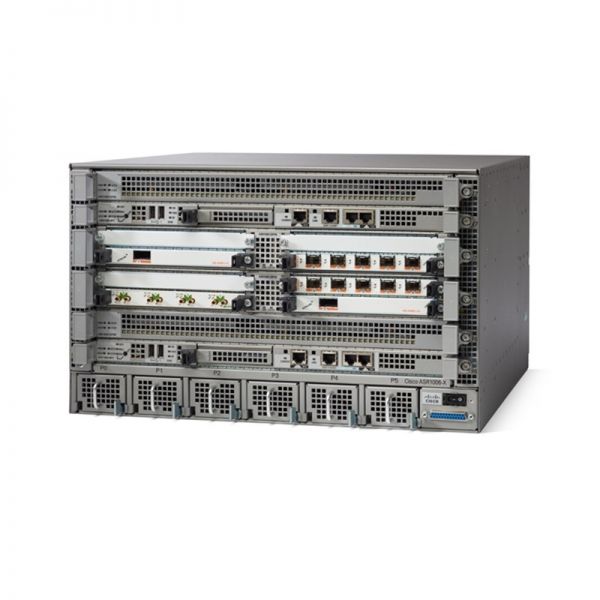

Figure 1 shows the appearance of ASR1006-X. It’s only a chassis. Those modules need to be purchased separately.
Figure 2 shows the back view of ASR1006-X.
The Cisco ASR 1006-X Router can support up to six AC or six DC power supplies. The chassis does not support mixed AC and DC configuration.
The Modules, Cards and Accessories
Table 2 shows the recommended modules, cards and accessories of ASR1006-X.
|
Model |
Description |
|
Card |
|
|
ASR1000-RP2 |
Cisco ASR1000 Route Processor 2, 8GB DRAM |
|
ASR1000-RP3 |
Cisco ASR1000 Route Processor 3 |
|
ASR1000-SIP40 |
Cisco ASR1000 SPA Interface Processor 40 |
|
License |
|
|
FLASR1-SBC-16K |
Cisco ASR 1000 License FLASR1-SBC-16K |
|
FLASR1-CUBEE-100R |
Cisco ASR 1000 License FLASR1-CUBEE-100R |
|
FLASR1-IPB-AESK9 |
Cisco ASR 1000 Upgrade License FLASR1-IPB-AESK9 |
|
Embedded Services Processor |
|
|
ASR1000-ESP100= |
Cisco ASR1000 Embedded Services Processor, 100G |
|
ASR1000-ESP40 |
Cisco ASR1000 Embedded Services Processor, 40G |
Compare to Similar Item
Table 3 shows the comparison.
|
Models |
ASR1006-X |
ASR1001-X |
|
Rack Height |
6U |
1U |
|
SFP Ports |
N/A |
6 x 1 G |
|
SPA slots |
8 |
1 |
|
ESP Slots |
2 |
Integrated |
|
RP Slots |
2 |
Integrated |
Get more information
Do you have any question about the Cisco ASR1006-X
Contact us now via Live Chat or [email protected].
Specification
ASR1006-X Datasheet
ASR 1006-X Specification |
|
|
Dimension |
Height: 10.47 in. (265.9 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) |
|
Default memory |
8-GB DRAM RP2 8-GB DRAM RP3 |
|
Number of SIPs or Ethernet line cards supported |
2 |
|
Shared port adapters |
8 SPA slots |
|
Ethernet port adapters |
4 EPA slots |
|
Cisco ASR 1000 Series ESP |
2 ESP slots |
|
Route processor |
2 route-processor slots |
|
Redundancy |
Hardware: Yes |
|
Built-in Gigabit Ethernet ports |
0 |
|
Built-in 10 Gigabit Ethernet port |
No |
|
Network interface module |
No |
|
ESP support |
Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) and |
|
ESP bandwidth |
40 to 100 Gbps |
|
ESP memory |
Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40): Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM |
|
SIPs and Ethernet line cards |
Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE line cards (ASR1000-2T+20X1GE); and six 10 GE line cards (ASR1000-6TGE) |
|
Embedded hardware-based encryption |
Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput |
|
Minimum Cisco IOS XE Software release |
Cisco IOS XE Software Release 3.16.0 |
|
Rack-mounting |
Yes: 19-inch |
|
Wall-mounting |
No |
|
External USB flash memory |
1-GB USB flash-memory support |
|
Redundant power supply |
Yes: Dual power supplies by default, expandable up to a total of six, depending on configuration and redundancy preferences; option of either 1100W AC or 950W DC Note: A mix of AC and DC power supplies is not supported. |
|
Power input |
Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72; -48V nominal) |
|
Power consumption |
● Maximum (DC): 4600W ● Maximum (AC): 4500W |
|
Airflow |
Front-to-back |
|
Operating temperature (nominal) |
Same as for Cisco ASR 1001-X |
|
Operating temperature (short-term) |
Same as for Cisco ASR 1001-X |
|
Operating humidity (nominal) (relative humidity) |
Same as for Cisco ASR 1001-X |
|
Operating humidity (short-term) |
Same as for Cisco ASR 1001-X |
|
Storage temperature |
Same as for Cisco ASR 1001-X |
|
Storage humidity (relative humidity) |
Same as for Cisco ASR 1001-X |
|
Operating altitude |
Same as for Cisco ASR 1001-X |
|
Network Equipment Building Standards (NEBS) |
GR-1089 and GR-63 |
|
EMC standards |
Same as for Cisco ASR 1001-X |
|
Safety Standard |
UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
