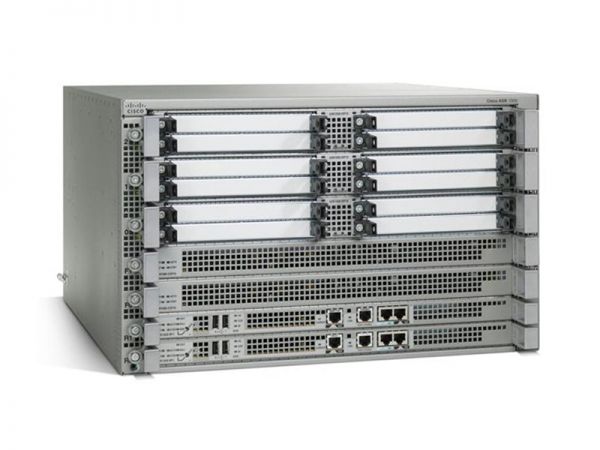

Product Model: ASR1006-20G-SHA/K9
Retail Price: US$81,316.00
Email Us To Get Special Price Now: [email protected]
ASR1006-20G-SHA/K9): This router bundle includes security features such as firewall and intrusion prevention, as well as high availability for businesses that require enhanced security measures.
Quick Spec
Table 1 shows the quick spec of ASR1006-20G-SHA/K9.
| Product Type | Router |
| Processor | 2 x 2.13 GHz Intel Xeon quad-core processors |
| Memory | 16 GB DDR3 SDRAM |
| Network Interface | 2 x 10 Gigabit Ethernet, 8 x Gigabit Ethernet, 2 x Gigabit Ethernet/SFP combo, 1 x 10/100/1000 Ethernet management |
| Security Features | Firewall, VPN, intrusion prevention system, content filtering, malware protection |
| High Availability Features | Redundant components and software |
Product Features
- ● ● Offers high-performance, reliable routing
- ● ● Provides comprehensive security features for enhanced protection
- ● ● Supports multiple WAN interfaces for flexible connectivity
- ● ● Offers high availability with redundant components and software
- ● ● Includes integrated services modules for additional services
Product Applications
- ● ● Branch offices and small to medium-sized businesses
- ● ● Secure remote connectivity over VPN
- ● ● Routing for cloud and data center environments
Supported Options
Table 2 shows the supported options of ASR1006-20G-SHA/K9.
| Model | Description |
| ASR1006-20G-SHA/K9 | Cisco ASR 1000 Router Security + HA Bundle ASR1006-20G-SHA/K9 |
| ASR1006-4X1GE | Cisco ASR 1000 4-Port Gigabit Ethernet Shared Port Adapter, Version 2 |
| ASR1000-ESP20 | Cisco ASR 1000 Embedded Services Processor, 20G |
Compare to Similar Items
Table 3 shows the comparison to similar items of ASR1006-20G-SHA/K9.
| Model | Description | Differences |
| ASR1006-20G-SEC/K9 | Cisco ASR 1000 Router Security Bundle ASR1006-20G-SEC/K9 | No high availability features |
| ASR1006-20G-VPN/K9 | Cisco ASR 1000 Router VPN Bundle ASR1006-20G-VPN/K9 | No security features |
Get more information
Do you have any question about the ASR1006-20G-SHA/K9
Contact us now via Live Chat or [email protected].
Specification
ASR1006-20G-SHA/K9 Datasheet
ASR1006-20G-SHA/K9 Specification |
|
| General | |
| Device Type | Router – with 2 x Cisco ASR 1000 Series Embedded Services Processor, 20Gbps / 2 x Route Processor 1 / SPA Interface Processor 10G |
| Enclosure Type | Desktop – modular – 6U |
| Connectivity Technology | Wired |
| Performance | Bandwidth: 20 Gbps |
| Capacity | Concurrent L2TP VPN tunnels: 16000 ¦ IPSec VPN tunnels: 10000 ¦ NAT entries: 1000000 ¦ ACL rules: 16000 ¦ QoS hardware entries: 128000 |
| Network / Transport Protocol | L2TP, IPSec |
| Remote Management Protocol | Telnet, SNMP 3, SSH, CLI |
| Encryption Algorithm | Triple DES, AES |
| Authentication Method | Secure Shell (SSH) |
| Features | Firewall protection, NAT support, VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN, software redundancy |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1 |
| RAM | 12 GB |
| Expansion / Connectivity | |
| Interfaces | Management: 2 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 2 x console – RJ-45 ¦ Management: 2 x auxiliary – RJ-45 ¦ USB: 1 x |
| Expansion Slots | 2 (total) / 0 (free) x processor board ¦ 17 (total) / 14 (free) x expansion slot |
| Installed Modules Qty (Max) | 5 (installed) / 19 (max) |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| OS Provided | Cisco IOS Advanced Enterprise Services |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 21.9 in |
| Height | 10.5 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – 90 days ¦ Limited warranty – replacement – 90 days – response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 90% |
