Product Model: ASR1004-20G-VPN/K9
Retail Price: US$42,518.00
Email Us To Get Special Price Now: [email protected]

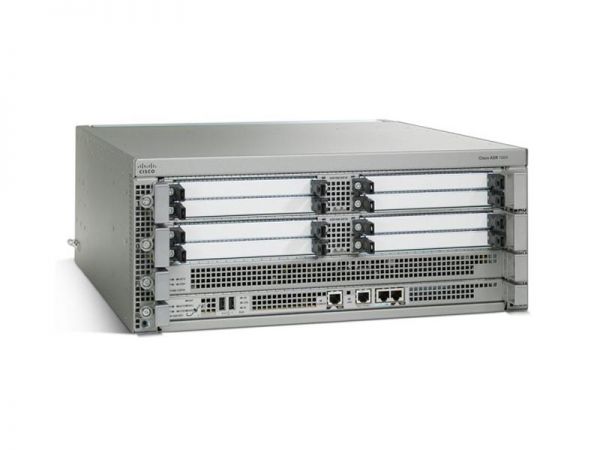

The ASR1004-20G-VPN/K9 is a Cisco ASR 1000 router that offers a VPN bundle solution, providing secure and reliable connectivity for virtual private networks. It is designed to meet the requirements of businesses and organizations needing robust and encrypted communication for remote offices, partners, and clients.
Quick Spec
Table 1 shows the quick spec of ASR1004-20G-VPN/K9.
| Parameter | Description |
|---|---|
| VPN Bundle | Optimized for secure and encrypted connectivity |
| Interface | 20 Gigabit Ethernet |
| Routing Protocol | OSPF, BGP, ISIS, and more |
| VPN Features | IPsec, SSL, DMVPN, and more |
| Scalability | Supports a large number of VPN connections |
Product Features
- ● ● VPN bundle solution for secure and encrypted connectivity
- ● ● High-speed 20 Gigabit Ethernet interface for fast data transfer
- ● ● Support for multiple routing protocols for flexible network design
- ● ● Advanced VPN features including IPsec, SSL, and DMVPN
- ● ● Scalable architecture supporting a large number of VPN connections
Product Applications
- ● ● Businesses requiring secure remote access for employees
- ● ● Organizations with multiple branch offices needing secure interconnectivity
- ● ● Service providers offering VPN services to clients
- ● ● Remote collaboration and communication for distributed teams
- ● ● Government and military agencies needing secure communication networks
Supported Options
Table 2 shows the supported options of ASR1004-20G-VPN/K9.
| Accessory Model | Description |
|---|---|
| ASR1000-ESP20 | Cisco ASR 1000 Embedded Services Processor, 20Gbps |
| ASR1000-RP2 | Cisco ASR 1000 Route Processor 2 |
| ASR1000-SIP20 | Cisco ASR 1000 SPA Interface Processor, 20Gbps |
Compare to Similar Items
Table 3 shows the comparison to similar items of ASR1004-20G-VPN/K9.
| Model | Differences |
|---|---|
| ASR1004-20G-SHA/K9 | Includes security features in addition to VPN capabilities |
| ASR1004-20G-SEC/K9 | Focuses on security features without VPN capabilities |
| ASR1004-20G-HA/K9 | Includes high availability features |
Get more information
Do you have any questions about the ASR1004-20G-VPN/K9 Cisco ASR 1000 Router VPN Bundle
Contact us now via Live Chat or [email protected].
Specification
ASR1004-20G-VPN/K9 Datasheet
ASR1004-20G-VPN/K9 Specification |
|
| General | |
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable – modular – 4U |
| Connectivity Technology | Wired |
| Performance | Forwarding performance: 23 Mbps ¦ Bandwidth: 20 Gbps |
| Capacity | Access control entries: 100000 ¦ QoS hardware queues: 128000 ¦ Concurrent IPSec VPN tunnels: 10000 ¦ NAT/ firewall sessions: 2000000 ¦ GRE tunnels: 4000 ¦ Maximum number of instances: 4000 ¦ Concurrent RTP sessions: 4000 ¦ Concurrent L2TP VPN tunnels: 16000 ¦ Concurrent sessions: 32000 |
| Network / Transport Protocol | IPSec |
| Remote Management Protocol | SNMP, Telnet, SSH, CLI |
| Features | NAT support, VPN support, load balancing, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Quality of Service (QoS), IPv4 support, NetFlow |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03 |
| Hard Drive | 40 GB |
| Expansion / Connectivity | |
| Interfaces | Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ Management: 1 x USB – 4 pin USB Type A |
| Expansion Slots | 1 (total) / 0 (free) x processor board ¦ 11 (total) / 9 (free) x expansion slot |
| Installed Modules Qty (Max) | 3 (installed) / 12 (max) |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| OS Provided | Cisco IOS Advanced Enterprise Services |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 22 in |
| Height | 7 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – advance parts replacement – 90 days – response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
