Product Model: ASR1004-20G-SEC/K9
Retail Price: US$47,833.00
Email Us To Get Special Price Now: [email protected]

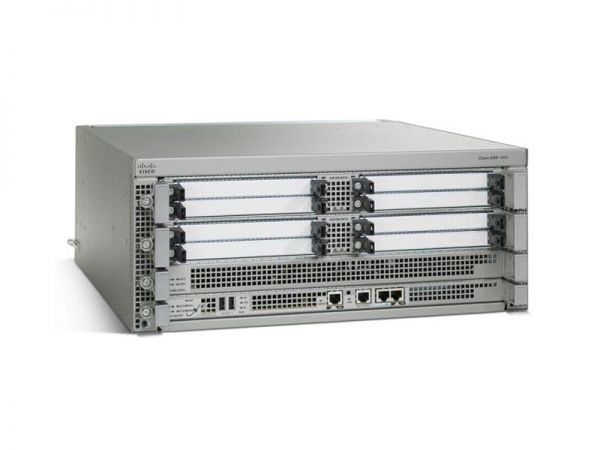

The ASR1004-20G-SEC/K9 is a Cisco ASR 1000 router that offers a security bundle, providing comprehensive network security features for data protection. It is designed for organizations that require advanced security measures to safeguard their networks and sensitive information, ensuring a secure and resilient networking environment.
Quick Spec
Table 1 shows the quick spec of ASR1004-20G-SEC/K9.
| Parameter | Description |
|---|---|
| Security Bundle | Optimized for network security |
| Interface | 20 Gigabit Ethernet |
| Routing Protocol | OSPF, BGP, ISIS, and more |
| Security Features | Firewall, VPN, IPS, content filtering, and more |
| Scalability | Supports large-scale deployments |
Product Features
- ● ● Security bundle offering comprehensive network protection
- ● ● High-speed 20 Gigabit Ethernet interface for fast data transfer
- ● ● Advanced security features including firewall, VPN, IPS, and content filtering
- ● ● Scalable architecture supporting large-scale deployments
- ● ● Support for multiple routing protocols for flexible network design
Product Applications
- ● ● Enterprise networks requiring robust security measures for data protection
- ● ● Government organizations handling sensitive information
- ● ● Financial institutions with high-security requirements
- ● ● Healthcare facilities safeguarding patient data
- ● ● E-commerce platforms ensuring secure transactions
Supported Options
Table 2 shows the supported options of ASR1004-20G-SEC/K9.
| Accessory Model | Description |
|---|---|
| ASR1000-ESP20 | Cisco ASR 1000 Embedded Services Processor, 20Gbps |
| ASR1000-RP2 | Cisco ASR 1000 Route Processor 2 |
| ASR1000-SIP20 | Cisco ASR 1000 SPA Interface Processor, 20Gbps |
Compare to Similar Items
Table 3 shows the comparison to similar items of ASR1004-20G-SEC/K9.
| Model | Differences |
|---|---|
| ASR1004-20G-VPN/K9 | Focuses on VPN capabilities in addition to security features |
| ASR1004-20G-SHA/K9 | Includes high availability features in addition to security capabilities |
| ASR1004-20G-HA/K9 | Focuses on high availability features without security capabilities |
Get more information
Do you have any questions about the ASR1004-20G-SEC/K9 Cisco ASR 1000 Router Security Bundle
Contact us now via Live Chat or [email protected].
Specification
ASR1004-20G-SEC/K9 Datasheet
ASR1004-20G-SEC/K9 Specification |
|
| General | |
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable – modular – 4U |
| Connectivity Technology | Wired |
| Performance | Forwarding performance: 23 Mbps ¦ Bandwidth: 20 Gbps |
| Capacity | Access control entries: 100000 ¦ QoS hardware queues: 128000 ¦ Concurrent IPSec VPN tunnels: 10000 ¦ NAT/ firewall sessions: 2000000 ¦ GRE tunnels: 4000 ¦ Maximum number of instances: 4000 ¦ Concurrent RTP sessions: 4000 ¦ Concurrent L2TP VPN tunnels: 16000 ¦ Concurrent sessions: 32000 |
| Network / Transport Protocol | IPSec |
| Remote Management Protocol | SNMP, Telnet, SSH, CLI |
| Features | Firewall protection, NAT support, VPN support, load balancing, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Quality of Service (QoS), IPv4 support, NetFlow |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03 |
| Hard Drive | 40 GB |
| Expansion / Connectivity | |
| Interfaces | Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ Management: 1 x USB – 4 pin USB Type A |
| Expansion Slots | 1 (total) / 0 (free) x processor board ¦ 11 (total) / 9 (free) x expansion slot |
| Installed Modules Qty (Max) | 3 (installed) / 12 (max) |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
