Product Model: ASR1001-X
Retail Price: US$19,768.00
Email Us To Get Special Price Today: [email protected]
Cisco ASR 1000-X is designed for high-end enterprise, data center, service provider edging network in order to handle explosive traffic through the network. It supports only software redundancy, and it is based on a Quad-core 2.13GHz processor with 4GB memory, 8GB flash memory, 1 SPA bay, SPA interface processor 10 (SIP10).
This ASR1001-X is similar with the ASR1001-X=. The ASR1001-X= is a spare one.
Quick Specs

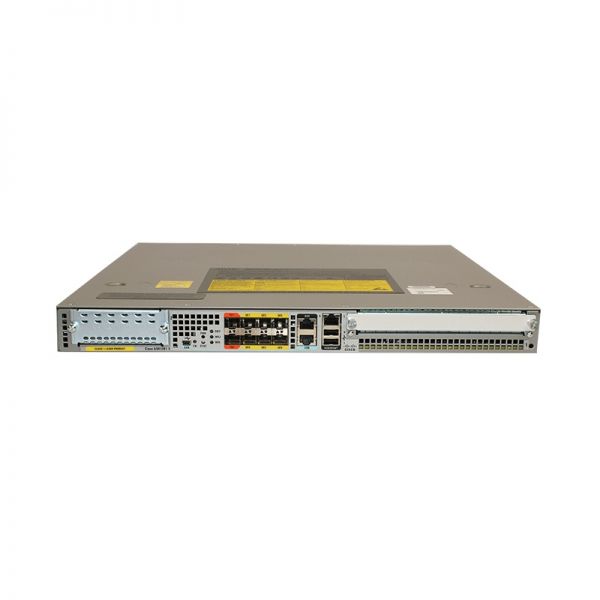

Figure 1 shows the appearance of the Cisco ASR 1001-X.
Table 1 shows the Quick Specs.
|
Product Code |
Cisco ASR 1001-X |
|
Rack Height |
1RU |
|
System Bandwidth |
2.5G (default) / 5G, 10G, 20G (upgrade) |
|
Router Processor (RP) |
Quad-core 2.13Ghz processor |
|
Build-in Gigabit Ethernet port |
6 x SFP ports, 2 x SFP+ ports |
|
Redundancy |
Software (license purchase separately) |
|
SIP and Ethernet line card |
Integrated in chassis; not upgradable |
|
Embedded hardware-based encryption |
up to 8-Gbps crypto support throughput |
|
Rack-mounting |
19-inch |
|
DRAM Memory |
8 GB |
|
Flash Memory |
8 GB |
|
Shared port adapters |
1 SPA slot |
|
External USB flash memory |
1-GB USB flash-memory support |
Product Details
Figure 2 shows the front panel of Cisco ASR 1001-X.
Note:
¢Ù NIM slots
¢Ú CON¡ªOne mini eUSB por
¢Û STAT¡ªStatus LED
¢Ü CRIT LED¡ªCritical alarm indicator; MAJ LED¡ªMajor alarm indicator; MIN LED¡ªMinor alarm indicator
¢Ý 6 x SFP ports, 2 x SFP+ ports
¢Þ CON¡ªOne RJ-45/RS-232 compatible console port
¢ß USB port 1
¢à USB port 0
¢á Shared port adapter slot
¢â MGMT¡ªOne RJ-45 10/100/1000 management Ethernet port.
?AUX¡ªOne RJ-45/RS-232 compatible auxiliary port
?PWR¡ªPower LED
¡¤Six built-in 1 GE SFP-only interfaces (do not support SFP+), and two built-in 10 GE SFP+ interfaces (support only 10-GE rate)
Table 2 shows some LEDs¡¯ Descriptions.
|
LEDs |
Color |
Description |
|
PWR (Power) |
Solid green |
All power requirements are within specification. |
|
Off |
The router is in standby mode. |
|
|
STAT (System Status) |
Solid green |
Cisco IOSD and other required processes have loaded successfully and are operating. |
|
Yellow |
ROMMON is running (including a permanent failure of RP software) or the Process Manager has declared a critical RP process (including IOSD) dead. A user can log in to recover. |
|
|
Red |
Occurs during system failure or power-up. |
|
|
CRIT (Critical) |
Solid Red |
Functions as a critical alarm indicator. The LED is lso a solid red during the boot process. |
|
MAJ (Major) |
Solid Red |
Major alarm indicator. |
|
MIN (Minor) |
Amber |
Minor alarm indicator. |
Figure 3 shows the back panel of ASR1001-X.
Note£º
¢Ù Two power supplies, either two AC power supplies or two DC power supplies are accessed from the rear of the router and are hot-swappable.
¢Ú Four internal fans draw cooling air into the chassis and across internal components to maintain an acceptable operating temperature.
The Configuration
The ASR1001-X should be configured with some modules and accessories for normal operation.
Table 3 shows the recommended configuration.
|
Items |
Quantity |
Descriptions |
|
ASR1001-X-PWR-AC |
2 |
Cisco ASR1001-X AC Power Supply |
|
CAB-L620P-C13-US |
2 |
Power Cord, 250VAC, 15A, NEMA L6-20 to C13, US |
|
SASR1K1XU-313S |
1 |
Cisco ASR1001-X IOS XE UNIVERSAL ¨C NO ENCRYPTION |
|
NIM-BLANK |
1 |
Blank faceplate for NIM slot on Cisco ISR 4400 |
|
SPA-BLANK |
1 |
Blank Cover for regular SPA |
|
M-ASR1001X-8GB |
1 |
Cisco ASR1001-X 8GB DRAM |
|
ASR1K-OTHER |
1 |
ASE1K-other applications for Enterprise or SP-Tracking only |
|
L-SLASR1-IPB= |
1 |
Cisco ASR1001 License L-SLASR1-IPB= Cisco ASR 1000 IP BASE E-Delivery PAK |
Before Purchasing
Do you have any question about the Cisco ASR 1001-X?
Contact us – Email Live Chat or [email protected].
ASR1001-X Datasheet
ASR1001-X Specifications |
|
|
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 1.71 in. (43.43 mm) Width: 17.3 in. (439.42 mm) Depth: 18.17 in. (461.5 mm) Weight:25 lb (11.35 kg) fully loaded Note: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated. |
|
Default memory |
8-GB DRAM shared across route processor, ESP, and SIP |
|
Number of SIPs or Ethernet line cards supported |
Integrated in chassis |
|
Shared port adapters |
1 single-height SPA slot |
|
Ethernet port adapters |
N/A |
|
Cisco ASR 1000 Series ESP |
Integrated in chassis |
|
Route processor |
Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor |
|
Redundancy |
Software: Yes |
|
Built-in Gigabit Ethernet ports |
Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports |
|
Built-in 10 Gigabit Ethernet port |
Yes: Two 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports Note:Built-in 10-GB ports cannot be reduced to 1-GB speed. |
|
Network interface module |
Yes |
|
Cisco ASR 1000 Series |
Cisco ASR 1001-X |
|
ESP support |
Cisco ASR 1000 Series 2.5-Gbps ESP (default) Upgradable through a software-activated feature license to 5, 10, or 20 Gbps |
|
ESP bandwidth |
2.5 to 20 Gbps |
|
ESP memory |
Share the same control memory on route processor |
|
SIPs and Ethernet line cards |
Integrated in chassis; not upgradable |
|
Embedded hardware-based encryption |
Yes: Up to 8-Gbps crypto support throughput |
|
Minimum Cisco IOS XE Software release |
Cisco IOS XE Software Release 3.12.0 |
|
Rack-mounting |
Yes: 19-inch |
|
Wall-mounting |
No |
|
External USB flash memory |
1-GB USB flash-memory support |
|
Redundant power supply |
Yes: Dual power supplies by default; option of either AC or DC power supply Note: A mix of one AC and one DC power supply is not supported. |
|
Power input |
Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72V; 48V nominal) |
|
Power consumption |
¡ñ Maximum (DC): 242W ¡ñ Maximum (AC): 250W ¡ñ Maximum (out): 250W |
|
Airflow |
Front-to-back |
|
Operating temperature (nominal) |
32 to 104¡ãF |
|
Operating temperature (short-term) |
32 to 122¡ãF |
|
Operating humidity (nominal) (relative humidity) |
10 to 85% |
|
Operating humidity (short-term) |
5 to 90% |
|
Storage temperature |
-40 to 150¡ãF (-40 to 70¡ãC) |
|
Storage humidity (relative humidity) |
5 to 95% |
|
Operating altitude |
-500 to 10,000 feet |
|
Network Equipment Building Standards (NEBS) |
GR-1089 and GR-63 (in progress) |
|
EMC standards |
¡ñ FCC 47 CFR Part 15 Class A ¡ñ VCCI Class A ¡ñ AS/NSZ Class A ¡ñ ICES-003 Class A ¡ñ EN55022/CISPR 22 Information Technology Equipment (Emissions) ¡ñ EN55024/CISPR 24 Information Technology Equipment (Immunity) ¡ñ EN300 386 Telecommunications Network Equipment ¡ñ (EMC) ¡ñ EN50082-1/EN61000-6-1 Generic Immunity Standard |
|
Safety Standard |
UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
