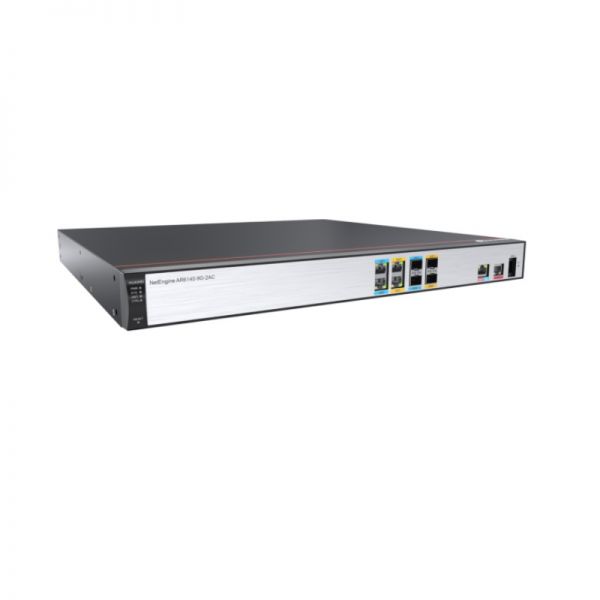

Product Model: AR6140E-9G-2AC
Retail Price: US$703.00
Email Us To Get Special Price Now: [email protected]
The industry’s first enterprise-class Access Routers (AR) designed for the cloud era, the NetEngine AR series features 5G ultra-broadband uplink and boasts a forwarding performance that’s 3x the industry average. Offering diverse features supporting Software-Defined-Wide-Area Network (SD-WAN), cloud management, Virtual Private Network (VPN), Multiprotocol Label Switching (MPLS), security, and voice the series also excels at coping with uplink traffic surges and promoting diversified service development.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
AR6140E-9G-2AC |
|
Forwarding Performance (LAN -> WAN + WAN -> LAN, NAT + ACL + QoS, IMIX) |
2 Gbit/s |
|
IPsec Performance (IMIX) |
2 Gbit/s |
|
Fixed WAN Ports |
2 x GE RJ45 and 2 x GE SFP |
|
Fixed LAN Ports |
2 x GE SFP and 3 x GE RJ45 (can be configured as WAN) |
|
SIC Slots |
4 |
|
WSIC Slots |
0 (default)/2 (maximum) |
|
USB Port |
1 x USB 3.0 (compatible with USB 2.0) |
|
5G |
Support 5G-SIC |
|
Auxiliary or Console Port |
1 x RJ45 console port |
|
Memory |
2 GB |
|
Flash Memory |
1 GB |
|
Hot Swapping |
Supported |
Product Details
Features
● 5G Ultra-Broadband, High-Speed Interconnection
Full GE access: Ultra-broadband interconnection for enterprises with multiple branches, easily handling the traffic surges that result from increased mobile use and cloudification.
Cabling-free plug-and-play: Network provisioning anytime, anywhere and within just one day.
● 3x the Forwarding Performance, Congestion-Free Services
Innovative “CPU + NP” forwarding architecture: Five built-in hardware acceleration engines achieve non-blocking concurrent services.
3x the forwarding performance: Ready for rapid traffic growth over the next three to five years, protecting investment.
● SD-WAN for an Intelligent Experience
SD-WAN and built-in Adaptive-Forward Error Correction (A-FEC) algorithm: Frame freezing and artifacts are eliminated even with 20% packet loss, delivering a smooth experience.
Application-based intelligent traffic steering: Traffic of key applications is always transmitted on the optimal link.
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
AR6121E |
AR6140E-9G-2AC |
|
Forwarding Performance (LAN -> WAN + WAN -> LAN, NAT + ACL + QoS, IMIX) |
2 Gbit/s |
2 Gbit/s |
|
IPsec Performance (IMIX) |
2 Gbit/s |
2 Gbit/s |
|
Fixed WAN Ports |
2 x GE combo and 1 x 10 GE SFP+ (compatible with GE SFP) |
2 x GE RJ45 and 2 x GE SFP |
|
Fixed LAN Ports |
1 x GE combo + 8 x GE RJ45 (can be configured as WAN) |
2 x GE SFP and 3 x GE RJ45 (can be configured as WAN) |
|
SIC Slots |
2 |
4 |
|
WSIC Slots |
0 (default)/1 (maximum) |
0 (default)/2 (maximum) |
|
USB Port |
1 x USB 3.0 (compatible with USB 2.0) and 1 x USB 2.0 |
1 x USB 3.0 (compatible with USB 2.0) |
|
5G |
Support 5G-SIC |
Support 5G-SIC |
|
Auxiliary or Console Port |
1 x RJ45 console port |
1 x RJ45 console port |
|
Memory |
2 GB |
2 GB |
|
Flash Memory |
1 GB |
1 GB |
|
Hot Swapping |
Supported |
Supported |
Get More Information
Do you have any question about the AR6140E-9G-2AC?
Contact us now via Live Chat or [email protected].
Specification
AR6140E-9G-2AC Datasheet
AR6140E-9G-2AC Specification |
|
|
Installation type |
Rack |
|
Dimensions without packaging (H x W x D) [mm(in.)] |
|
|
Dimensions with packaging (H x W x D) [mm(in.)] |
175 mm x 710 mm x 550 mm (6.89 in. x 27.95 in. x 21.65 in.) |
|
CPU |
1.4 GHz, 4 Cores |
|
Memory |
4 GB |
|
NAND Flash |
1 GB |
|
Console port |
RJ45 |
|
RTC |
Supported |
|
Maximum power consumption [W] |
34 W |
|
Power supply mode |
AC built-in |
|
Number of power modules |
2 |
|
Rated input voltage [V] |
100 V to 240 V, 50 Hz/60 Hz |
|
Input voltage range [V] |
90 V to 264 V, 47 Hz to 63 Hz |
|
Maximum input current [A] |
2 A |
|
Maximum output power [W] |
70 W |
|
Type of fans |
Built-in |
|
Number of fan modules |
0 |
|
Heat dissipation mode |
Air cooling |
|
Airflow direction |
Left to right |
|
Extended slots (standard configuration) |
4 x SIC |
|
Number of service board slots |
4 |
|
Redundant power supply |
Support double power supply (1:1 backup) |
|
PoE |
Not supported |
|
Noise at normal temperature (acoustic power) [dB(A)] |
49.9 dB(A) |
|
Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature [°C(°F)] |
-40°C to +70°C (-40°F to +158°F) |
|
Long-term operating relative humidity [RH] |
5% to 95%, noncondensing |
|
Long-term operating altitude [m(ft.)] |
< 5000 m (16404.2 ft.) |
