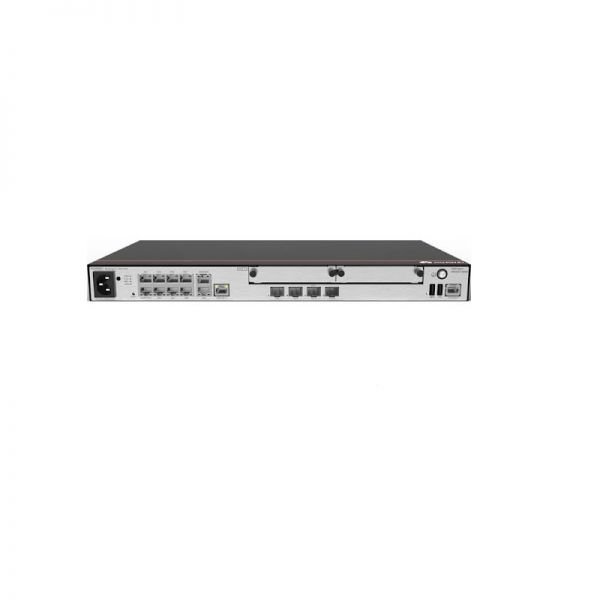

Product Model: AR6121E
Retail Price: US$507.00
Email Us To Get Special Price Now: [email protected]
The industry’s first enterprise-class Access Routers (AR) designed for the cloud era, the NetEngine AR series features 5G ultra-broadband uplink and boasts a forwarding performance that’s 3x the industry average. Offering diverse features supporting Software-Defined-Wide-Area Network (SD-WAN), cloud management, Virtual Private Network (VPN), Multi-protocol Label Switching (MPLS), security, and voice the series also excels at coping with uplink traffic surges and promoting diversified service development.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
AR6121E |
|
Forwarding Performance (LAN -> WAN + WAN -> LAN, NAT + ACL + QoS, IMIX) |
2 Gbit/s |
|
IPsec Performance (IMIX) |
2 Gbit/s |
|
Fixed WAN Ports |
2 x GE combo and 1 x 10 GE SFP+ (compatible with GE SFP) |
|
Fixed LAN Ports |
1 x GE combo + 8 x GE RJ45 (can be configured as WAN) |
|
SIC Slots |
2 |
|
WSIC Slots |
0 (default)/1 (maximum) |
|
USB Port |
1 x USB 3.0 (compatible with USB 2.0) and 1 x USB 2.0 |
|
5G |
Support 5G-SIC |
|
Auxiliary or Console Port |
1 x RJ45 console port |
|
Memory |
2 GB |
|
Flash Memory |
1 GB |
|
Hot Swapping |
Supported |
Product Details
Features
● 5G Ultra-Broadband, High-Speed Interconnection
Full GE access: Ultra-broadband interconnection for enterprises with multiple branches, easily handling the traffic surges that result from increased mobile use and cloudification.
Cabling-free plug-and-play: Network provisioning anytime, anywhere and within just one day.
● 3x the Forwarding Performance, Congestion-Free Services
Innovative “CPU + NP” forwarding architecture: Five built-in hardware acceleration engines achieve non-blocking concurrent services. 3x the forwarding performance: Ready for rapid traffic growth over the next three to five years, protecting investment.
● SD-WAN for an Intelligent Experience
SD-WAN and built-in Adaptive-Forward Error Correction (A-FEC) algorithm: Frame freezing and artifacts are eliminated even with 20% packet loss, delivering a smooth experience.
Application-based intelligent traffic steering: Traffic of key applications is always transmitted on the optimal link.
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
AR6121E |
AR6140E-9G-2AC |
|
Forwarding Performance (LAN -> WAN + WAN -> LAN, NAT + ACL + QoS, IMIX) |
2 Gbit/s |
2 Gbit/s |
|
IPsec Performance (IMIX) |
2 Gbit/s |
2 Gbit/s |
|
Fixed WAN Ports |
2 x GE combo and 1 x 10 GE SFP+ (compatible with GE SFP) |
2 x GE RJ45 and 2 x GE SFP |
|
Fixed LAN Ports |
1 x GE combo + 8 x GE RJ45 (can be configured as WAN) |
2 x GE SFP and 3 x GE RJ45 (can be configured as WAN) |
|
SIC Slots |
2 |
4 |
|
WSIC Slots |
0 (default)/1 (maximum) |
0 (default)/2 (maximum) |
|
USB Port |
1 x USB 3.0 (compatible with USB 2.0) and 1 x USB 2.0 |
1 x USB 3.0 (compatible with USB 2.0) |
|
5G |
Support 5G-SIC |
Support 5G-SIC |
|
Auxiliary or Console Port |
1 x RJ45 console port |
1 x RJ45 console port |
|
Memory |
2 GB |
2 GB |
|
Flash Memory |
1 GB |
1 GB |
|
Hot Swapping |
Supported |
Supported |
Get More Information
Do you have any question about the AR6121E ?
Contact us now via Live Chat or [email protected].
Specification
AR6121E Datasheet
AR6121E Specification |
|
|
Installation type |
|
|
Dimensions without packaging (H x W x D) [mm(in.)] |
|
|
Dimensions with packaging (H x W x D) [mm(in.)] |
390 mm x 570 mm x 390 mm (15.35 in. x 22.44 in. x 15.35 in.) |
|
CPU |
1.4 GHz, 4 Cores |
|
Memory |
4 GB |
|
NAND Flash |
1 GB |
|
Console port |
RJ45 |
|
RTC |
Supported |
|
Maximum power consumption [W] |
33 W |
|
Power supply mode |
AC built-in |
|
Number of power modules |
1 |
|
Rated input voltage [V] |
100 V to 240 V, 50 Hz/60 Hz |
|
Input voltage range [V] |
90 V to 264 V, 47 Hz to 63 Hz |
|
Maximum input current [A] |
2 A |
|
Maximum output power [W] |
60 W |
|
Type of fans |
Built-in |
|
Number of fan modules |
0 |
|
Heat dissipation mode |
Air cooling |
|
Airflow direction |
Left to right |
|
Extended slots (standard configuration) |
2 x SIC |
|
Number of service board slots |
2 |
|
Redundant power supply |
Not supported |
|
RPS input |
Not supported |
|
PoE |
Not supported |
|
Noise at normal temperature (acoustic power) [dB(A)] |
52.3 dB(A) |
|
Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature [°C(°F)] |
-40°C to +70°C (-40°F to +158°F) |
|
Long-term operating relative humidity [RH] |
5% to 95%, noncondensing |
|
Long-term operating altitude [m(ft.)] |
< 5000 m (16404.2 ft.) |
