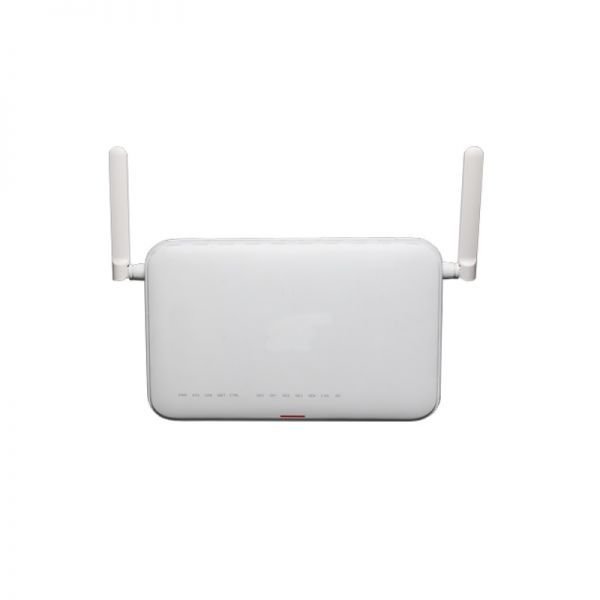

Product Model: AR611W
Retail Price: US$284.00
Email Us To Get Special Price Now: [email protected]
Huawei’s next-generation NetEngine AR600 series enterprise routers use multi-core processors and a non-blocking switching structure, helping to deliver three times the industry average performance. The NetEngine AR600 also integrates functions such as SD-WAN, cloud management, routing, switching, VPN, WLAN, and security, ensuring diversified and cloud-based services are fully supported.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
AR611W |
|
CPU |
1.1 GHz, 2 Cores |
|
Memory |
1 GB |
|
NAND Flash |
1 GB |
|
Console port |
RJ45 |
|
RTC |
Supported |
|
Maximum power consumption [W] |
12 W |
Compare to Similar Items
Table2shows the comparison.
|
Parameters |
NetEngine AR651C |
NetEngine AR651 |
NetEngine AR651W |
NetEngine AR657W |
|
Forwarding Performance |
1 Gbit/s |
1 Gbit/s |
1 Gbit/s |
1 Gbit/s |
|
Forwarding Performance |
1.5 Gbit/s |
2 Gbit/s |
2 Gbit/s |
2 Gbit/s |
|
IPsec Performance (IMIX) |
800 Mbit/s |
1 Gbit/s |
1 Gbit/s |
1 Gbit/s |
|
Fixed WAN Ports |
2 x GE SFP and 2 x GE RJ45 |
2 x GE combo |
2 x GE combo |
2 x GE combo and 1 x VDSL 35b |
|
Fixed LAN Ports |
8 x GE RJ45 (can be configured as WAN) |
8 x GE RJ45 (can be configured as WAN) |
8 x GE RJ45 (can be configured as WAN) |
8 x GE RJ45 (can be configured as WAN) |
|
WLAN |
– |
– |
Dual-band (2.4 GHz and 5 GHz), 802.11b/g/n/ac |
Dual-band (2.4 GHz and 5 GHz), 802.11b/g/n/ac |
|
Service extension slot |
– |
1 x MIC |
1 x MIC |
1 x MIC |
|
USB Port |
1 x USB 3.0 (compatible with USB 2.0) |
1 x USB 3.0 (compatible with USB 2.0) |
1 x USB 3.0 (compatible with USB 2.0) |
1 x USB 3.0 (compatible with USB 2.0) |
|
Auxiliary or Console Port |
1 x RJ45 console port |
1 x RJ45 console port |
1 x RJ45 console port |
1 x RJ45 console port |
|
Memory |
1 GB |
2 GB |
2 GB |
2 GB |
|
Flash Memory |
1 GB |
1 GB |
1 GB |
1 GB |
Get More Information
Do you have any question about the AR611W
Contact us now via Live Chat or [email protected].
Specification
AR611W Datasheet
AR611W Specification |
|
|
Item |
Specification |
|
Installation type |
|
|
Dimensions without packaging (H x W x D) [mm(in.)] |
|
|
Dimensions with packaging (H x W x D) [mm(in.)] |
90 mm x 370 mm x 297 mm (3.54 in. x 14.57 in. x 11.69 in.) |
|
CPU |
1.1 GHz, 2 Cores |
|
Memory |
1 GB |
|
NAND Flash |
1 GB |
|
Console port |
RJ45 |
|
RTC |
Supported |
|
Maximum power consumption [W] |
12 W |
|
Power supply mode |
AC external |
|
Number of power modules |
1 |
|
Rated input voltage [V] |
100 V to 240 V, 50 Hz/60 Hz |
|
Input voltage range [V] |
90 V to 270 V, 45 Hz to 65 Hz |
|
Maximum input current [A] |
0.8 A |
|
Maximum output power [W] |
24 W |
|
Type of fans |
None |
|
Number of fan modules |
0 |
|
Heat dissipation mode |
Natural heat dissipation |
|
Redundant power supply |
Not supported |
|
PoE |
Not supported |
|
Noise at normal temperature (acoustic power) [dB(A)] |
0 (Natural heat dissipation) |
|
Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) NOTE: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature [°C(°F)] |
-40°C to +70°C (-40°F to +158°F) |
|
Long-term operating relative humidity [RH] |
5% to 95%, noncondensing |
|
Long-term operating altitude [m(ft.)] |
< 5000 m (16404.2 ft.) |
