Product Model: AR2204XE
Retail Price: US$834.00
Email Us To Get Special Price Now: [email protected]

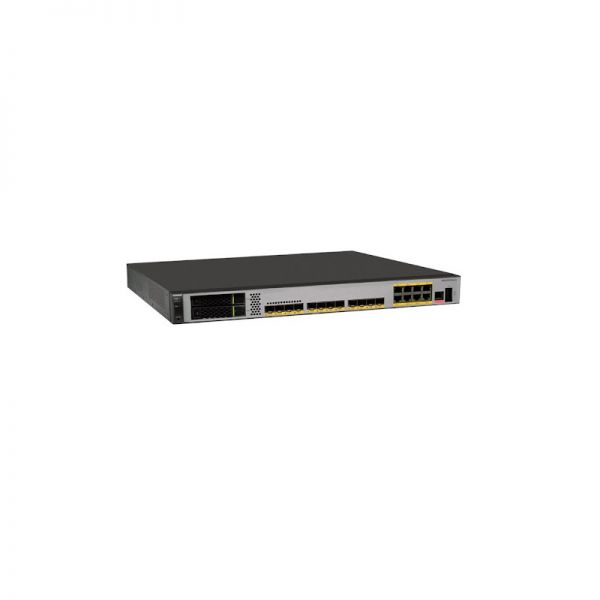

AR2204XE, 2*10GE SFP+ WAN, 10*GE SFP WAN, 8*GE WAN(PoE), 1 USB, 4 SIC, 2 HDD, 60W AC power supply (1+1).
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
AR2204XE |
|
Processor |
8-core, 1.5 GHz |
|
Memory |
4 GB |
|
Flash |
512 MB |
|
Micro SD card (default sd1) |
None |
|
Hard disk |
Supported |
|
Typical power consumption |
70 W |
Compare to Similar Items
Table2shows the comparison.
|
Specifications |
AR2204-27GE/ |
AR2204-51GE-P |
AR2204E |
AR2204XE |
|
WAN Speed with Services |
200 Mbit/s |
200 Mbit/s |
200 Mbit/s |
900 Mbit/s |
|
Fixed WAN Ports |
3 x GE (1 x Combo) |
3 x GE (1 x Combo) |
3 x GE (1 x Combo port) |
2 x 10 GE SFP+, 10 x GE SFP, 8 x GE RJ45 WAN |
|
Fixed LAN Ports |
24 x GE/24 x GE (8 x GE ports support PoE) |
48 x GE (8 x GE ports support PoE) |
– |
– |
|
SIC Slots |
4 |
4 |
4 |
4 |
|
WSIC Slots (default/max.) |
0 |
0 |
0/2 |
0/2 |
|
XSIC Slots (default/max.) |
0 |
0 |
0 |
0 |
Get More Information
Do you have any question about the AR2204XE
Contact us now via Live Chat or [email protected].
Specification
AR2204XE Datasheet
AR2204XE Specification |
|
|
System parameters |
|
|
Processor |
8-core, 1.5 GHz |
|
Memory |
4 GB |
|
Flash |
512 MB |
|
Micro SD card (default sd1) |
None |
|
Hard disk |
Supported |
|
Dimensions |
|
|
Dimensions (H x W x D) |
|
|
Power specifications |
|
|
Rated input voltage |
100 V AC to 240 V AC, 50 Hz/60 Hz |
|
Maximum AC input voltage |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
Maximum input current |
2 A |
|
Maximum output power |
150 W |
|
RPS power supply |
Not supported |
|
PoE power supply |
Supported (interfaces GE10 to GE17) |
|
Power consumption (empty chassis) |
|
|
Typical power consumption |
70 W |
|
Maximum power consumption |
85 W |
|
Heat dissipation |
|
|
Fans |
Built-in, unpluggable |
|
Airflow (facing the front panel) |
Left to right |
|
Interface density |
|
|
Management interfaces |
1 (RJ45) |
|
Console interfaces |
1 (RJ45) |
|
USB 2.0 interfaces |
1 |
|
Service interfaces |
WAN interfaces: 8 GE electrical interfaces, 2 10GE optical interfaces, and 10 GE optical interfaces |
|
Extended slots |
4xSIC |
|
Environment parameters |
|
|
Operating temperature |
0°C to +45°C (32°F to 113°F) NOTE: When the altitude is 1800-5000 m (5906-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 300 m (984 ft.). |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Operating relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
< 5000 m (16404.2 ft.) |
