Product Model: AR1220E-S
Retail Price: US$442.00
Email Us To Get Special Price Now: [email protected]
Huawei AR1220E-S router is next-generation, enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP).
Quick Specs

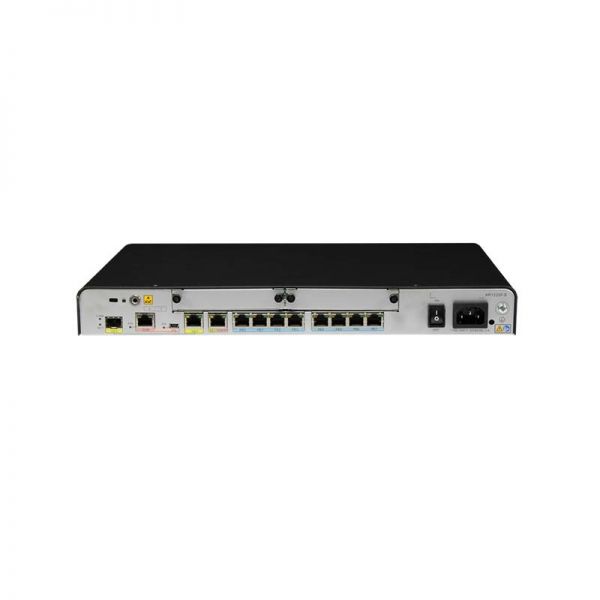

Figure 1 shows the appearance of Huawei Router – AR1220E-S.
Table 1 shows the Quick Specs.
|
Product Code |
AR1220E-S |
|
Memory |
1 GB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 2 GE combo interfaces LAN interfaces: 8 10/100/1000M auto-sensing Ethernet electrical interfaces |
|
Extended slots |
2 SIC slots |
|
Interface number |
LAN interfaces: GE0-GE7 |
|
Power module type |
Built-in AC power module |
|
Weight |
12.42 kg |
|
Dimensions (W x D x H) |
390.0 mm x 232.5 mm x 44.5 mm |
Product Details
Figure 2 shows the front panel of Huawei Router – AR1220E-S.
Note:
|
① |
Two USB interfaces (host) |
|
② |
RST button |
Figure 3 shows the back panel of Huawei Router – AR1220E-S.
Note:
|
① |
Two GE combo interfaces |
|
② |
Console interface |
|
③ |
Mini USB interface |
|
④ |
Eight GE electrical interfaces |
|
⑤ |
AC power jack |
|
⑥ |
Two SIC slots |
The Optical transceiver, Cards
Table 2 shows the recommended elements for the Huawei Router – AR1220E-S.
|
Model |
Description |
|
FE optical transceiver |
|
|
SFP-FE-LX-SM1310-BIDI |
eSFP,FE,BIDI Single-mode module(TX1310/RX1550,15km,LC) |
|
eSFP-FE-LX-SM1310 |
eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
S-SFP-FE-LH40-SM1310 |
eSFP,FE,Single-mode Module(1310nm,40km,LC) |
|
GE optical transceiver |
|
|
SFP-1000BaseT |
Electrical Transceiver,eSFP,GE,Electrical Interface Module(100m,RJ45) |
|
eSFP-GE-SX-MM850 |
Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
S-SFP-GE-LH40-SM1310 |
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
S-SFP-GE-LH40-SM1550 |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
|
WAN interface card |
|
|
AR-1E3T3M-W |
1-Port Channelized/Unchannelized E3/T3 WAN Interface Card |
|
xDSL interface card |
|
|
AR01SLV1XA |
1-Port VDSL2 over POTS WAN Interface Module |
Compare to Similar Items
Table 3 shows the comparison between AR1220E-S and AR0M12VWBA00.
|
Model |
AR1220E-S |
AR0M12VWBA00 |
|
WAN Speed with Services |
400 Mbit/s |
200 Mbit/s |
|
Fixed WAN Ports |
2 x GE Combo |
2 x GE |
|
Fixed LAN Ports |
8 x GE (can be configured as WAN interfaces) |
8 x FE (can be configured as WAN interfaces) |
|
Slots |
SIC slots: 2 WSIC slots (default/max): 0/1 |
|
|
Memory |
1 GB |
512 MB |
Get more information
Do you have any question about the AR1220E-S
Contact us now via Live Chat or [email protected].
Specification
AR1220E-S Datasheet
AR1200E-S Specification |
|
|
WAN speed with services |
400 Mbit/s |
|
Firewall Performance (large packet) |
1,800 Mbit/s |
|
Device Switching Capacity |
8 Gbit/s |
|
Slot Switching Bandwidth |
SIC & WSIC slots: 2 Gbit/s |
|
Number of Recommended Users |
100 |
|
Fixed WAN Ports |
2 x GE Combo |
|
Fixed LAN Ports |
8 x GE (can be configured as WAN interfaces) |
|
SIC Slots |
2 |
|
WSIC Slots (default/max) |
0/1 |
|
DSP Slots |
– |
|
Wi-Fi |
– |
|
USB 2.0 Ports |
2 |
|
Mini-USB Ports |
1 |
|
Serial Auxiliary/Console Port |
1 |
|
Memory |
1 GB |
|
Flash |
512 MB |
|
Max. Power |
60W |
|
PoE Power |
– |
|
AC Power |
100V to 240V |
|
Frequency |
50 Hz/60 Hz |
|
DC power |
– |
|
Dimensions (H x W x D) |
44.5 mm x 390 mm x 220 mm |
|
Weight |
12.42 kg |
|
Ambient Temperature |
0°C to 45°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
