Product Model: AR109
Retail Price: US$206.00
Email Us To Get Special Price Now: [email protected]

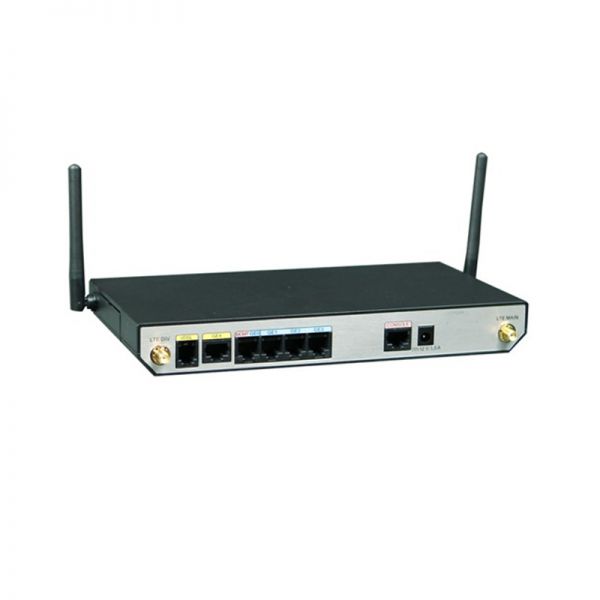

AR109 – Huawei AR100 Series Enterprise Routers.AR109,1 GE WAN,1 VDSL WAN,4 GE LAN,1 USB2.0.
Quick Specs
Table 1 shows the Quick Specs.
|
WAN Speed with Services*(IMIX) |
40 Mbit/s |
|
Number of Recommended Users |
20 |
|
Fixed WAN Ports |
1 x VDSL2 (compatible with ADSL2+ Annex A/M, Annex B/J), and 1 x GE |
|
Fixed Ethernet Switching Ports |
4 x GE |
|
Integrated LTE |
none |
|
Wi-Fi |
none |
|
USB 2.0 Ports |
1 |
|
Console Ports |
1 |
|
Memory Size |
256 MB |
|
Flash Memory |
256 MB |
|
Maximum Power |
24W |
|
Power Supply (AC) |
100V to 240V |
|
Frequency |
50 Hz/60 Hz |
|
Dimensions (H x W x D) |
30 mm x 230 mm x 130 mm (1.18 in. x 9.1 in. x 5.1 in.) |
|
Operating Temperature |
0°C to 40°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
Get more information
Do you have anyquestionabouttheAR109
Contact us now via Live Chat or [email protected].
Specification
AR109 Datasheet
AR109 Specification |
|
|
WAN Speed with Services* |
40 Mbit/s |
|
Number of Recommended Users |
20 |
|
Fixed WAN Ports |
1 x VDSL2 (compatible with ADSL2+ Annex A/M, Annex B/J), and 1 x GE |
|
Fixed Ethernet Switching Ports |
4 x GE |
|
Integrated LTE |
none |
|
Wi-Fi |
none |
|
USB 2.0 Ports |
1 |
|
Console Ports |
1 |
|
Memory Size |
256 MB |
|
Flash Memory |
256 MB |
|
Maximum Power |
24W |
|
Power Supply (AC) |
100V to 240V |
|
Frequency |
50 Hz/60 Hz |
|
Dimensions (H x W x D) |
30 mm x 230 mm x 130 mm (1.18 in. x 9.1 in. x 5.1 in.) |
|
Operating Temperature |
0°C to 40°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
|
Basic Features |
ARP , PBR, DNS, DHCP, and NAT |
|
LAN |
IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc. |
|
IPv4 Routing |
Static route, RIP |
|
IPv6 Routing |
Static route, RIPng |
|
Multicast |
IGMP v1/v2/v3 |
|
VPN |
IPSec VPN, GRE VPN, and L2TP Client |
|
QoS |
Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), and congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ) |
|
Security |
ACL, firewall, AAA authentication, ICMP attack defense, URPF, and HTTPS |
|
Management and Maintenance |
Upgrade management, device management, web-based GUI, RMON, CWMP, Auto-Config, site deployment using USB disk, and CLI |
