Product Model: AFi-R
Retail Price: US$169.15
Email Us To Get Special Price Now: [email protected]
The AmpliFi HD (High Density) Mesh Router can be used as a stand-alone router or with other AmpliFi Mesh Routers for multi-hop, self-healing wireless coverage and enhanced range.
Quick Specs

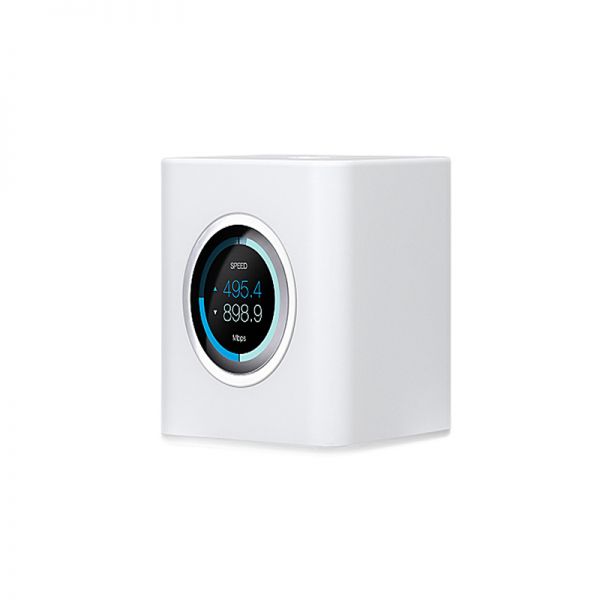

Figure 1 shows the appearance of AFI-R.
Table 1 shows the Quick Specs.
|
Product Code |
AFI-R |
|
Networking Interface |
Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN |
|
Max. Power Consumption |
11W |
|
Antennas |
(1) Dual-Band Antenna, Tri-Polarity |
|
Display |
40.6 mm (1.6″) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color |
Product Details
Figure 2 shows the front panel of AFI-R.
Figure 3 shows the back panel of AFI-R.
AFI-R provides these features:
For a typical home, the Router alone delivers maximum throughput to meet your streaming and gaming demands with lag-free performance.
The Router features an innovative and simple design with an intuitive touchscreen display.
A mobile app is available for iOS and Android platforms for instant setup and easy management.
Compare to Similar Items
Table 2 shows the comparison of AFI-R.
|
Module |
AFI-R |
AFi-HD |
|
Networking Interface |
Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN |
Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN |
|
Max. Power Consumption |
11W |
11W |
|
Antennas |
(1) Dual-Band Antenna, Tri-Polarity |
(1) Dual-Band Antenna, Tri-Polarity |
|
Display |
40.6 mm (1.6″) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color |
40.6 mm (1.6″) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color |
Get More Information
Do you have any question about the AFI-R
Contact us now via Live Chat or [email protected].
Specification
AFi-R Datasheet
AFi-R Specification |
|
|
Dimensions |
99.5 x 97.8 x 99.6 mm (3.91 x 3.85 x 3.92″) |
|
Max. TX Power |
26 dBm |
|
Radios |
2 |
|
MIMO Chains |
6 |
|
Speed |
1750 Mbps |
|
Networking Interface |
Wi-Fi/Gigabit Ethernet (1) WAN, (4) LAN |
|
Max. Power Consumption |
11W |
|
ESD/EMP Protection |
± 24kV Air/Contact |
|
Buttons |
Reset |
|
Antennas |
(1) Dual-Band Antenna, Tri-Polarity |
|
Display |
40.6 mm (1.6″) Diagonal, 240 x 240, 212 ppi, G+F Touch, Full Color |
|
Wi-Fi Standards |
802.11ac |
|
Power Save |
Supported |
|
Wireless Security |
WPA2-PSK AES/TKIP |
|
Operating Temperature |
14 to 131° F (-10 to 55° C) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
FCC / CE / IC |
|
Supported Data Rates |
|
|
802.11ac |
13 Mbps to 1300 Mbps (MCS0 – MCS9, VHT 20/40/80) |
|
802.11n |
6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
