Product Model: A9K-RSP-4G
Retail Price: US$17,007.00
Email Us To Get Special Price Now: [email protected]
A9K-RSP-4G is the Cisco ASR 9000 Equipment ASR9K Fabric, Controller with 4G memory. Cisco ASR 9000 Series Route Switch Processor (RSP) is a scalable, low-power, next-generation Carrier Ethernet platform with a system architecture specifically designed to accommodate service providers’ unique convergence requirements of Layer 2 Ethernet transport plus Layer 3 services.
Quick Specs

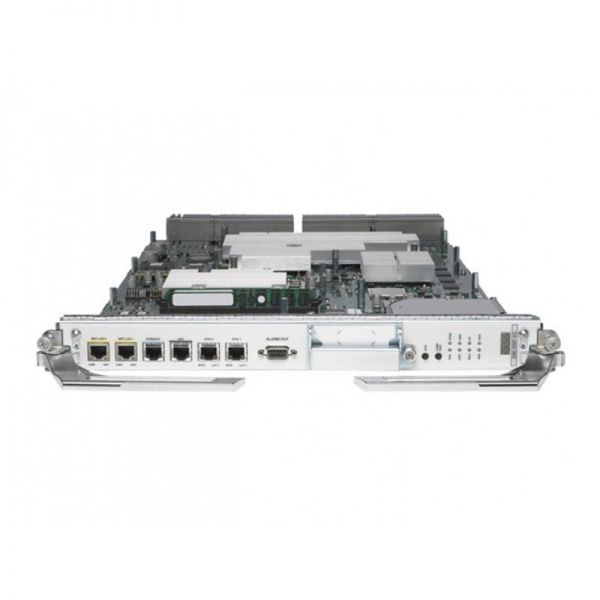

This figure shows the appearance of A9K-RSP-4G.
Table 1 shows the quick specs.
|
Model |
A9K-RSP-4G |
|
Type |
Cisco ASR 9000 Equipment ASR9K Fabric, Controller with 4G memory |
|
Memory internal |
4-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP-4G Hard disk: 40-GB SAS HDD 4-GB eUSB Flash memory |
|
Memory external |
1-GB Compact Flash Timing (two independent clock source connections) RJ-45 connector for external timing reference interfaces (for example, BITS/SSU) |
Compatibility
Table 2 shows the compatibility products of A9K-RSP-4G.
|
Model |
Description |
|
ASR-9010-DC |
Cisco ASR 9010 DC Chassis |
|
ASR-9010-DC-V2 |
ASR 9010 DC Chassis with PEM Version 2 |
|
ASR-9010-AC |
Cisco ASR 9010 AC Chassis |
|
ASR-9010-AC-V2 |
ASR 9010 AC Chassis with PEM Version 2 |
|
ASR-9006-DC |
Cisco ASR 9006 DC Chassis |
|
ASR-9006-DC-V2 |
ASR-9006-DC-V2 ASR 9006 DC Chassis with PEM Version 2 |
|
ASR-9006-AC |
Cisco ASR 9006 AC Chassis |
|
ASR-9006-AC-V2 |
ASR-9006-AC-V2 ASR 9006 AC Chassis with PEM Version 2 |
Compare to Similar Item
Table 3 shows the comparison between A9K-RSP-4G and A9K-RSP-8G.
|
Model |
A9K-RSP-4G |
A9K-RSP-8G |
|
Type |
Cisco ASR 9000 Equipment ASR9K Fabric, Controller with 4G memory |
Cisco ASR 9000 Equipment ASR9K Fabric, Controller with 8G memory |
|
Memory internal |
4-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP-4G Hard disk: 40-GB SAS HDD 4-GB eUSB Flash memory |
8-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP-8G Hard disk: 40-GB SAS HDD 4-GB eUSB Flash memory |
|
Memory external |
1-GB Compact Flash Timing (two independent clock source connections) RJ-45 connector for external timing reference interfaces (for example, BITS/SSU) |
1-GB Compact Flash Timing (two independent clock source connections) RJ-45 connector for external timing reference interfaces (for example, BITS/SSU) |
Get more information
Do you have any question about the Cisco A9K-RSP-4G
Contact us now via Live Chat or [email protected].
Specification
A9K-RSP-4G Datasheet
A9K-RSP-4G Specifications |
|
|
CPU |
◦ High-performance dual-core processors |
|
Memory internal |
◦ 4-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP-4G ◦ Hard disk: 40-GB SAS HDD ◦ 4-GB eUSB Flash memory |
|
Memory external |
◦ 1-GB Compact Flash ◦ Timing (two independent clock source connections) ◦ RJ-45 connector for external timing reference interfaces (for example, BITS/SSU) |
|
Management |
◦ Two 10/100/1000 BASE-T (RJ-45) LAN management ports ◦ One console port ◦ One auxiliary port |
|
Alarms |
Alarm outputs: Critical alarm (CR), major alarm (MJ), and minor alarm (MN) |
|
LEDs |
◦ Amber alarm cut-off (ACO) and lamp test ◦ System synchronization alarm (SYNC) ◦ Compact Flash activity (CF) ◦ Hard Disk Drive (HDD) ◦ Fan tray visual indicator (UFAN/LFAN) |
