Product Model: A9K-MOD80-SE
Retail Price: US$36,777.00
Email Us To Get Special Price Now: [email protected]
A9K-MOD80-SE is Cisco ASR 9000 Mod80 Modular Line Card, Service Edge Optimized, requires modular port adapters. Cisco ASR 9000 Series modular line cards provide customers with a flexible solution supporting multiple combinations of Ethernet ports, all in a single slot of the Cisco ASR 9000 Series Aggregation Services Routers. Modular line cards support a wide range of interfaces and densities.
Quick Specs

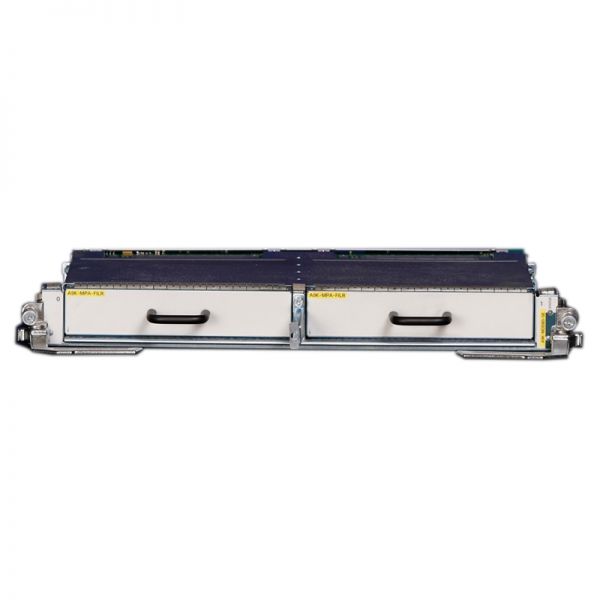

Figure 1 shows the appearance of the A9K-MOD80-SE with installed A9K-MPA-FILR. It needs to be purchased separately.
Table 1 shows the quick specs.
|
Product Number |
A9K-MOD80-SE |
|
Type |
ASR 9000 Mod80 Modular Line Card, Service Edge Optimized, requires modular port adapters |
|
Physical Dimensions |
14.5 W x 1.72 H x 22.40 L 14.5 W x 1.72 H x 24.25 L (including ejector levers) |
|
Weight |
17.5 lbs. (est.) (7.93 Kg) |
|
Chassis compatibility |
Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems |
|
Port density |
Up to 2 modular port adapters are supported per line card. |
Compatibility
Table 2 shows the compatibility products.
|
Model |
Description |
|
ASR-9010-DC |
Cisco ASR 9010 DC Chassis |
|
ASR-9010-DC-V2 |
ASR 9010 DC Chassis with PEM Version 2 |
|
ASR-9010-AC |
Cisco ASR 9010 AC Chassis |
|
ASR-9010-AC-V2 |
ASR 9010 AC Chassis with PEM Version 2 |
|
ASR-9006-DC |
Cisco ASR 9006 DC Chassis |
|
ASR-9006-DC-V2 |
ASR-9006-DC-V2 ASR 9006 DC Chassis with PEM Version 2 |
|
ASR-9006-AC |
Cisco ASR 9006 AC Chassis |
|
ASR-9006-AC-V2 |
ASR-9006-AC-V2 ASR 9006 AC Chassis with PEM Version 2 |
|
ASR-9001 |
Cisco ASR 9001 Chassis |
Compare to Similar Item
Table 3 shows the comparison between A9K-MOD80-TR and A9K-MOD80-SE.
|
Model |
A9K-MOD80-TR |
A9K-MOD80-SE |
|
Type |
ASR 9000 Mod80 Modular Line Card, Packet Transport Optimized, requires modular port adapters |
ASR 9000 Mod80 Modular Line Card, Service Edge Optimized, requires modular port adapters |
|
Physical Dimensions |
14.5 W x 1.72 H x 22.40 L 14.5 W x 1.72 H x 24.25 L (including ejector levers) |
14.5 W x 1.72 H x 22.40 L 14.5 W x 1.72 H x 24.25 L (including ejector levers) |
|
Weight |
17.5 lbs. (est.) (7.93 Kg) |
17.5 lbs. (est.) (7.93 Kg) |
|
Chassis compatibility |
Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems |
Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems |
Get more information
Do you have any question about the Cisco A9K-MOD80-SE
Contact us now via Live Chat or [email protected].
Specification
A9K-MOD80-SE Datasheet
A9K-MOD80-SE Specifications |
|
|
Type |
ASR 9000 Mod80 Modular Line Card, Service Edge Optimized, requires modular port adapters |
|
Physical Dimensions |
14.5 W x 1.72 H x 22.40 L 14.5 W x 1.72 H x 24.25 L (including ejector levers) |
|
Weight |
17.5 lbs. (est.) (7.93 Kg) |
|
Chassis compatibility |
Compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems |
|
Port density |
Up to 2 modular port adapters are supported per line card. |
|
Ethernet |
· IEEE 802.3 compliant · 10 Gigabit Ethernet PHY monitoring · IEEE 802.x flow control · Full-duplex operation · Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets |
|
Card density |
Maximum number of line cards per system: Cisco ASR 9922 = 20, Cisco ASR 9010 = 8, and Cisco ASR 9006 = 4 |
|
Options |
Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card. |
|
Reliability and availability |
Line card online insertion and removal (OIR) support without system impact |
|
Network Equipment Building Standards (NEBS) |
Cisco ASR 9000 Series Routers are designed to meet: · SR-3580: NEBS Criteria Levels (Level 3) · GR-1089-CORE: NEBS EMC and Safety · GR-63-CORE: NEBS Physical Protection |
|
Operating temperature (nominal) |
41 to 104ºF (5 to 40ºC) |
|
Operating temperature (short-term) |
23 to 131ºF (–5 to 55ºC) |
|
Operating humidity (nominal) relative humidity |
10 to 85% |
|
Storage temperature |
–40 to 158ºF (–40 to 70ºC) |
|
Storage relative humidity |
5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air |
|
Operating altitude |
–60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) |
|
ETSI standards |
Cisco ASR 9000 Series Routers are designed to meet: · EN300 386: Telecommunications Network Equipment (EMC) · ETSI 300 019 Storage Class 1.1 · ETSI 300 019 Transportation Class 2.3 · ETSI 300 019 Stationary Use Class 3.1 · EN55022: Information Technology Equipment (Emissions) · EN55024: Information Technology Equipment (Immunity) · EN50082-1/EN-61000-6-1: Generic Immunity Standard |
|
EMC standards |
Cisco ASR 9000 Series Routers are designed to meet: · FCC Class A · ICES 003 Class A · AS/NZS 3548 Class A · CISPR 22 (EN55022) Class A · VCCI Class A · BSMI Class A · IEC/EN 61000-3-2: Power Line Harmonics · IEC/EN 61000-3-3: Voltage Fluctuations and Flicker |
|
Immunity |
Cisco ASR 9000 Series Routers are designed to meet: · IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) · IEC/EN-61000-4-3: Radiated Immunity (10V/m) · IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) · IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) · IEC/EN-61000-4-5: Signal Ports (1kV) · IEC/EN-61000-4-5: Surge DC Port (1kV) · IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) · IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) · IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations |
|
Safety |
Cisco ASR 9000 Series Routers are designed to meet: · UL/CSA/IEC/EN 60950-1 · IEC/EN 60825 Laser Safety · ACA TS001 · AS/NZS 60950 · FDA: Code of Federal Regulations Laser Safety |
