Product Model: A4H124-24P
Retail Price: US$403.00
Email Us To Get Special Price Today: [email protected]

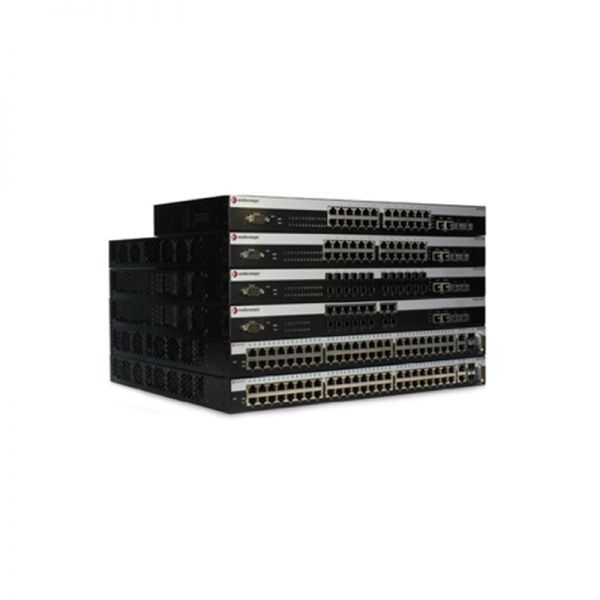

The Extreme A4H124-24P is a high-performance A-Series stackable L2/L3 edge switch designed to meet the needs of modern network environments. Equipped with 24 x 10/100 PoE (.af) ports, 2 SFP ports, and 2 10/100/1000 stacking/uplink RJ45 ports, this versatile switch offers robust connectivity and power options. Additionally, the A4H124-24P supports external RPS for added reliability, ensuring seamless data flow in both small and large-scale deployments.
Quick Spec
| Port Configuration | 24 x 10/100 PoE (.af) |
| SFP Ports | 2 |
| RJ45 Ports | 2 x 10/100/1000 |
| Stacking Capability | Yes |
| External RPS | Supported |
Product Datasheet
- ● High-performance L2/L3 switching capabilities
- ● 24 PoE (.af) ports for powering connected devices
- ● Enhanced network management with stacking capability
- ● Dual purpose uplink ports C SFP and RJ45
- ● External Redundant Power Supply support for increased reliability
Product Applications
- ● Small-to-medium business networks requiring reliable edge switching
- ● VoIP phone deployments needing PoE support
- ● Retail environments necessitating high-availability PoE networking
Supported Options
| Redundant Power Supply | Extreme RPS-500 |
| 10G SFP+ Module | Extreme SFP-SX |
| Stacking Cable | Extreme STACK-CBL-3M |
Compare to Similar Items
| Model | Extreme A4H124-24P | Extreme A4H124-24T | Extreme A4H124-48P |
| PoE Ports | 24 | 0 | 48 |
| Stacking Capability | Yes | Yes | Yes |
| Uplink Ports | 2 x 10/100/1000 | 2 x 10/100/1000 | 2 x 10/100/1000 |
| SFP Ports | 2 | 2 | 2 |
Before Purchasing
For further information about the Extreme A4H124-24P, its datasheet, and the best prices available, please contact us through Live Chat or email at [email protected]. Check Extreme A4H124-24P price and A4H124-24P datasheet, buy Extreme A4H124-24P Switch with best price and fast shipping. Free Live Chat is supported.
A4H124-24P Datasheet
A4H124-24P Specifications | |
| Brand | Extreme |
| Model | A4H124-24P |
| Series | A-Series |
| Type | Stackable L2/L3 Edge Switch |
| Ports | 24 x 10/100 PoE (.af) |
| SFP Ports | 2 x SFP Ports |
| Stacking/Uplink Ports | 2 x 10/100/1000 stacking/uplink RJ45 ports |
| Power Supply | External RPS (Redundant Power Supply) |
| Switch Capacity | 12.8 Gbps |
| Forwarding Rate | 9.5 Mpps (Million packets per second) |
| VLANs Supported | 4096 VLANs |
| QoS | 8 queues per port |
| MAC Address Table | 16K entries |
| Jumbo Frame Support | Up to 9 KB |
| Mounting | Rack Mountable |
| Dimensions | 17.4 x 10.0 x 1.7 inches |
| Operating Temperature | 0??C to 40??C |
| Management | Web-based GUI, SNMP |
| Warranty | Lifetime |
| Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3af |
