Product Model: HPE DL360 Gen10 8SFF 875838-425
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
875838-425 is an HPE ProLiant DL360 Gen10 4110 85W 1P 16G-2R P408i-a 8SFF 1x500W Server/TV.
Quick Spec

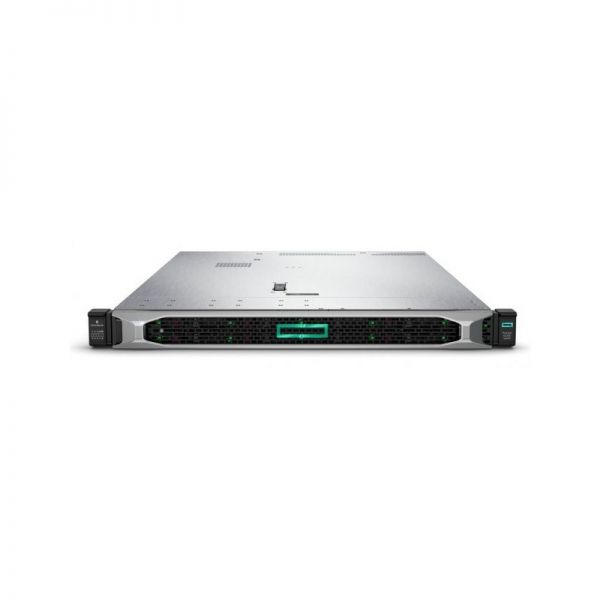

Figure 1 shows the appearance of HPE DL360 Gen10 8SFF Server Front View. 8 SFF + 2 SFF Universal Media Bay option shown.
Table 1 shows the quick spec.
|
Product Model |
875838-425 |
|
Description |
HPE ProLiant DL360 Gen10 4110 85W 1P 16G-2R P408i-a 8SFF 1x500W Server/TV |
|
Number of processors |
Up to 2 |
|
Processor core available |
8 |
|
Processor cache |
11 MB |
|
Processor speed |
2.1 GHz |
|
Product dimensions (H x W x D) |
17.11 x 27.83 x 1.69 in |
|
Weight |
28.74 lb minimum 35.86 lb maximum |
Product Details
Figure 2 shows the front panel of HPE DL360 Gen10 8SFF Server Front ports.
Note:
|
① |
Drive support label |
|
② |
Quick removal access panel |
|
③ |
Serial no. label pull tab |
|
④ |
Universal Media Bay Options: Option shown: +2 SFF SAS/SATA (total 10SFF) Option: +2 SFF NVMe drives Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit Option: +2 Dual uFF (4x M.2 cartridges) Option: Display port + USB 2.0 port Kit + Blank |
|
⑤ |
Power On/Standby button and system power LED |
|
⑥ |
Health LED |
|
⑦ |
NIC status LED |
|
⑧ |
UID button/LED |
|
⑨ |
USB 3.0 port |
|
⑩ |
iLO Service Port |
|
⑪ |
Standard 8 SAS/SATA/SSD drive bays |
Figure 3 shows the back panel of HPE DL360 Gen10 Server Back View.
Note:
|
① |
Slot 1 PCIe 3.0 port Option: Rear Drive +1 SFF or 1 uFF SSD (2x M.2 cartridges) |
|
② |
Slot 2 PCIe 3.0 |
|
③ |
Option: Slot 3 PCIe 3.0 (Requires 2nd processor) |
|
④ |
Power Supply 2 |
|
⑤ |
Power Supply 1 |
|
⑥ |
VGA port |
|
⑦ |
Embedded 4x 1GbE Adapter |
|
⑧ |
iLO Management Port |
|
⑨ |
Option: Serial Port |
|
⑩ |
USB 3.0 Ports |
|
⑪ |
Option: FlexibleLOM (Shown: 4x 1GbE) |
The Accessories
Table 2 shows the recommended elements.
|
Product number |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
870753-B21 |
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
868818-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
875503-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Model |
875838-425 |
826565-B21 |
|
Description |
HPE ProLiant DL360 Gen10 4110 85W 1P 16G-2R P408i-a 8SFF 1x500W Server/TV |
HPE ProLiant DL380 Gen10 4114 1P 32GB-R P408i-a 8SFF 500W PS Base Server |
|
Processor Number |
1 |
1 |
|
Processor core available |
8 |
10 |
|
Processor cache |
11 MB |
13.75 MB |
|
Processor speed |
2.1 GHz |
2.2 GHz |
Get more information
Do you have any question about the HPE 875838-425 Sever
Contact us now via Live Chat or [email protected].
HPE DL360 Gen10 8SFF 875838-425 Datasheet
HPE 875838-425 Specification |
|
|
Description |
HPE ProLiant DL360 Gen10 4110 85W 1P 16G-2R P408i-a 8SFF 1x500W Server/TV |
|
Processor |
Intel Xeon-Silver 4110 (2.1GHz/8-core/85W) processor |
|
Processor family |
Intel Xeon-Silver 4110 series |
|
Number of processors |
Up to 2 |
|
Processor number |
1 |
|
Processor core available |
8 |
|
Processor cache |
11 MB |
|
Processor speed |
2.1 GHz |
|
Form factor |
1U |
|
Power supply type |
1 HPE 500W Flex Slot Platinum hot-plug power supply kit |
|
Expansion slots |
2 PCIe 3.0 |
|
Maximum memory |
768 GB memory supported differs by processor selection |
|
Memory, standard |
16 GB (1x 16 GB) RDIMM |
|
Memory slots |
24 DIMM slots |
|
Included hard drives |
None ship standard, supports 8 SFF drives |
|
Optical drive type |
Optional |
|
System fan features |
5 Hot-plug standard dual rotor redundant fans |
|
Network controller |
Broadcom 4x 1GbE |
|
Storage controller |
Smart Array S100i |
|
Product dimensions (H x W x D) |
17.11 x 27.83 x 1.69 in |
|
Weight |
28.74 lb minimum 35.86 lb maximum |
|
Infrastructure management |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses) |
