Product Model: 869081-B21
Retail Price: US$338.00
Email Us To Get Special Price Today: [email protected]

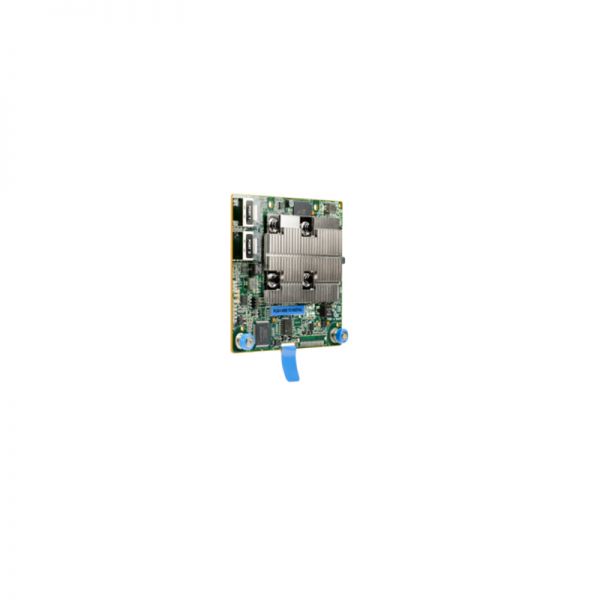

The HPE Smart Array P408i-a SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is ideal for maximizing performance while supporting advanced RAID levels with 2 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and offers encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs.
The Gen10 controllers are supported by the HPE Smart Storage Battery, which supports multiple devices and is sold separately.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Model |
869081-B21 |
|
Description |
Smart Array P408I-A SR G10 LH Controller |
|
Product Line |
Smart Array |
|
Product Model |
P408i-a |
|
Product Type |
SAS Controller |
|
Host Interface |
PCI Express 3.0 x8 |
|
Controller Type |
12Gb/s SAS Serial ATA/600 |
|
RAID Supported |
Yes |
|
RAID Levels |
0 1 5 6 10 50 60 1 ADM 10 ADM |
|
Data Backup Type |
Flash Backed Cache |
|
Number of SAS Ports (Internal) |
8 |
|
SAS Connector Details |
2 |
|
Cache Memory |
2 GB |
|
Form Factor |
Plug-in Module |
|
Manufacturer |
HPE |
Get more information
Do you have anyquestion aboutthe869081-B21
Contact us now via Live Chat or [email protected].
869081-B21 Datasheet
869081-B21 Specification |
|
| General | |
| Product Type | Storage controller (RAID) |
| Bay Adapter | |
| Features | Low profile heatsink |
| Bay Provided | |
| Type | None |
| Header | |
| Manufacturer | HP CTO Server Avnet |
| Packaged Quantity | 1 |
| Product Line | HPE Smart Array |
| Model | P408I-A SR Gen10 |
| Brand | HPE |
| Interface Provided | |
| Qty | 2 |
| Connector Location | Internal |
| Type | SATA 6Gb/s / SAS 12Gb/s |
| Miscellaneous | |
| Compliant Standards | FIPS 140-2 Level 1 |
| Color Category | Green, Silver |
| Power Device | |
| Type | None |
| Storage Controller | |
| Form Factor | Plug-in card |
| Supported Devices | Disk array (RAID), Hard drive |
| RAID Level | RAID 0, RAID 1, RAID 1 ADM, RAID 10, RAID 10 ADM, RAID 5, RAID 50, RAID 6, RAID 60 |
| Data Transfer Rate | 1.2 GBps |
| Channel Qty | 8 |
| Buffer Size | 2 GB |
| Maximum LUNs | 64 |
| Host Bus | PCIe 3.0 x8 |
| Interface | SATA 6Gb/s / SAS 12Gb/s |
| System Requirements | |
| Min Operating System | CentOS, Citrix XenServer, ClearOS, Microsoft Windows Hyper-V Server, Microsoft Windows Server, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, VMware vSphere (ESXi) |
