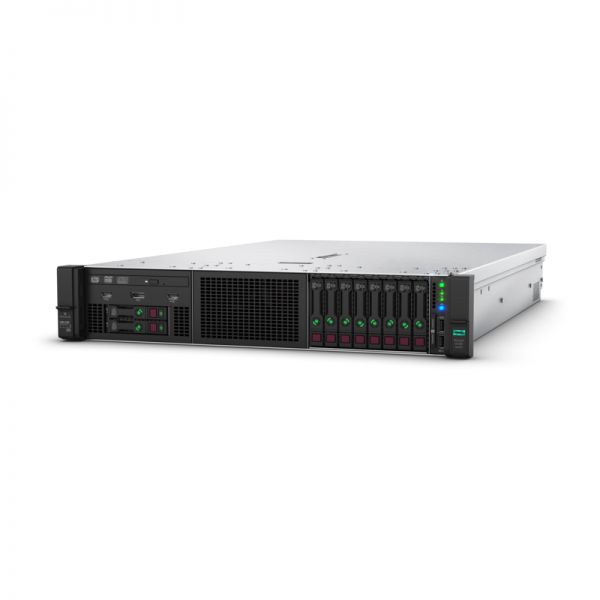

HPE DL388 Gen10 3104 1P 16G 8SFF Sever comes standard with an Intel Xeon-Bronze 3104 (1.7GHz/6-core/85W) processor supporting:
· Up to 2 processors;
· Standard 16GB DDR4-2666 mt/s (1× 16 GB) memory, standard 24 memory slots;
· Built-in HPE smart array S100I SR GEN10 SW 6GB SATA array controller;
· Standard 8 SFF Hot-Swappable Hard Disk Slots, Up To 24 + 6 SFF Hot-Plug Unplug the Hard Disk, standard without hard disk;
· Standard with 3 PCI-e 3.0 slots;
· Standard embedded 4-port gigabit ethernet card, standard with a flexiblelom slot;
· Standard with a 500w platinum hot-swappable power supply, supports redundancy;
· 4 hot-swappable fans are standard, and 6 hot-swappable fans (n+1) are standard;
· No optical drive is standard;
· Standard HPE ilo5;
· 2U rack-mountable, with convenient mounting rails, no reason wire rack;
· 3 years 5*9, NBD.
Product Details
Figure 1 shows the SFF front panel components.
Note:
|
① |
Box 1 (optional drives or universal media bay, see figure 2) |
③ |
Box 3 Drives 1-8 |
⑤ |
USB 3.0 port |
|
② |
Box 2 (optional drives) |
④ |
Serial label pull tab or optional Systems Insight Display |
⑥ |
iLO service port |
Figure 2 shows the Universal media bay components. It needs to be purchased separately.
Note:
|
① |
② |
③ |
④ |
⑤ |
|
USB 2.0 port |
Video display port |
Optical disk drive (optional) |
USB 2.0 port |
Drives (optional) |
Figure 3 shows the rear panel components. These installed drives need to be purchased separately.
Note：
|
① |
Primary riser slots 1-3 (Optional drive cage) |
⑤ |
Power supply 2 |
⑨ |
iLO management port |
|
② |
Optional riser slots 4-6 (Optional drive cage) |
⑥ |
Video port |
⑩ |
USB 3.0 ports |
|
③ |
Optional riser slots 7-8 (Optional drive cage) |
⑦ |
Serial port (optional)* |
? |
FlexibleLOM slot |
|
④ |
Power supply 1 |
⑧ |
1Gb RJ-45 ports 1–4 |
? |
|
*When a tertiary riser cage is installed as shown, the serial port can be installed in riser slot 6.
Supported Hard Drives
Table 1 shows the supported SFF hard drives.
|
Product number |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
870753-B21 |
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
868818-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
875503-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Get More Information
Do you have any question about the 868709-AA1
Contact us now via Live Chat or [email protected].
868709-AA1 Datasheet
868709-AA1 Specification |
|
|
Model |
HPE ProLiant DL388 Gen10 3104 1.7GHz 6C 85W 1P 16G-2R S100i 8SFF 1x500W Entry CN Server |
|
Processor |
Intel Xeon-Bronze 3104 (1.7GHz/6-core/85W) processor |
|
Memory |
Comes standard 16GB DDR4-2666 MT/s (1× 16 GB) memory, standard 24 memory slots |
|
Array controller |
Built-in HPE smart array S100I SR GEN10 SW 6GB SATA array controller |
|
PCIe slots |
3 |
|
Hard Drive |
Standard 8 SFF Hot-Swappable Hard Disk Slots, Up To 24 + 6 SFF Hot-Plug Unplug the Hard Disk, standard without hard dis |
|
Power Supply |
Standard with a 500w platinum hot-swappable power supply, supports redundancy |
|
Fan |
4 hot-swappable fans, up to 6 hot-swappable fans (N+1) |
|
Height |
2U |
