867449-S01 – HPE ProLiant DL380 Gen9 Server Price & Datasheet

Product Model: 867449-S01

Retail Price: US$2,294.15

Email Us To Get Special Price Today:  [email protected]

The HPE ProLiant DL380 Gen9 Server delivers the latest performance and expandability. Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, makes it ideal for any server environment. Deploy the data center standard.HPE 867449-S01,Designed to reduce costs and complexity, leveraging Intel’s latest E5-2600 v4 processors with 21%2 performance gain, plus the latest HPE 2400 MHZ DDR4 SmartMemory supporting 3.0 TB and up to 23%3 performance increase. Supporting 12 Gb/s SAS, 40 Gb NIC with broad range compute options. HPE Persistent Memory, the world’s first NVDIMM optimized on ProLiant, offering unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission critical applications, and can be deployed with confidence.

Quick Spec

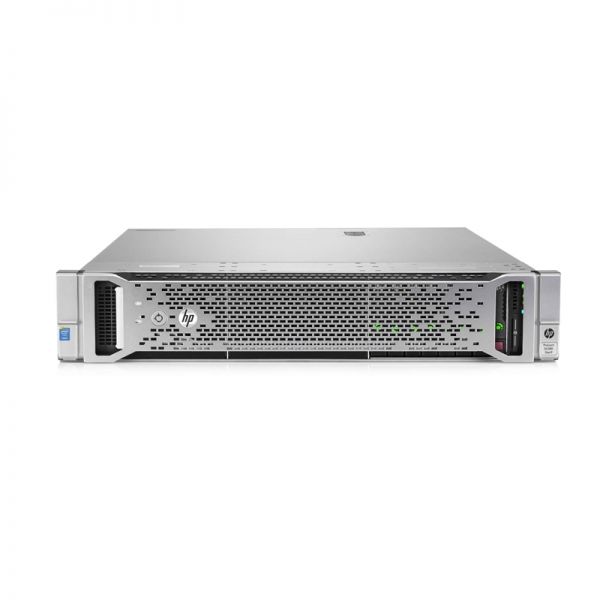

Figure 1 shows the appearance of HPE 867449-S01.

Table 1 shows the quick spec.

Product Model	867449-S01
Processor	● Intel® Xeon® E5-2620v4 (8 core, 2.1 GHz, 20 MB, 85W)
Number of processors	1
Processor core available	8
Processor cache	● 20MB
Processor speed	● 2.1GHz
Form factor (fully configured)	2U
Product dimensions (H x W x D)	3.44 x 17.54 x 26.75 in

Product Details

Figure 2 shows the front panel of HPE 867449-S01.

Note:

①	Quick removal access panel
②	Universal Media bay. 2 USB 2.0 and VGA standard (8SFF bay optional)
③	Optional Optical drive. Requires Universal Media bay
④	Optional 2 SFF HDD, blank shown. Requires Universal Media bay
⑤	Drive Bay 2. Blank shown, 8SFF or 6NVMe optional
⑥	8 SFF Drive Cage Bay
⑦	Power On/Standby button and system power LED button
⑧	Health LED
⑨	NIC status
⑩	UID button
⑪	USB 3.0
⑫	Serial label pull tag
⑬	Bay 3
⑭	Bay 2
⑮	Bay 1

Figure 3 shows the back panel of HPE 867449-S01.

Note:

①	PCI Slots (Slots 1-3 top to bottom, riser shipped standard)
②	PCI Slots (Slots 4-6top to bottom, requires second riser card, and second processor)
③	Optional serial port
④	Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)
⑤	Power supply Power connection
⑥	Power supply Power LED
⑦	HPE Flexible Slot Power Supply bay 2 (800w shown)
⑧	Power supply Power connection
⑨	Power supply Power LED
⑩	HPE Flexible Slot Power Supply bay 1 (800w shown)
⑪	VGA connector
⑫	Embedded 4x1GbE Network Adapter
⑬	USB 3.0 connectors (2)
⑭	Unit ID LED
⑮	Optional FlexibleLOM ports (Shown: 4x1GbE)

The Accessories

Table 2 shows the recommended elements for the HPE 867449-S01.

Product number	Description
872487-B21	HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
846524-B21	HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
819201-B21	HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD
872485-B21	HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD
877784-B21	HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

Compare to Similar Items

Table 3 shows the comparison between HPE 867449-S01 and HPE 875759-S01.

Product Model	867449-S01	875759-S01
Product Description	HPE ProLiant DL380 Gen9 E5-2620v4 1P 16GB-R P840ar 12LFF 2x800W PS Server/S-Buy	HPE ProLiant DL380 Gen10 4112 1P 16GB-R P408i-a 12LFF 1x500W PS Server/S-Buy
Number of processors	1	1
Processor core available	8	4
Processor cache	20MB	8.25 MB
Processor speed	2.1GHz	2.6 GHz
