Product Model: 830571-B21
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
HPE Basic PDUs provide a low-profile single-piece design for easy access to rear devices for maintenance. Vertical PDUs can be installed on either side of the rack with outlets facing back for easy access and improved clearance. HPE 830571-B21,For higher power density configurations, install side by side on both sides of the rack with the outlets facing center. Horizontal/Modular PDUs offer a modular architecture designed for data center customers who want to maximize power distribution and space efficiencies. The Control Unit or core can be mounted in any 1U space or in 0U space on the side of HPE Racks between the RETMA rails. Extension Bars mount directly to the frame so you can configure access to power where you need it.
Quick Spec

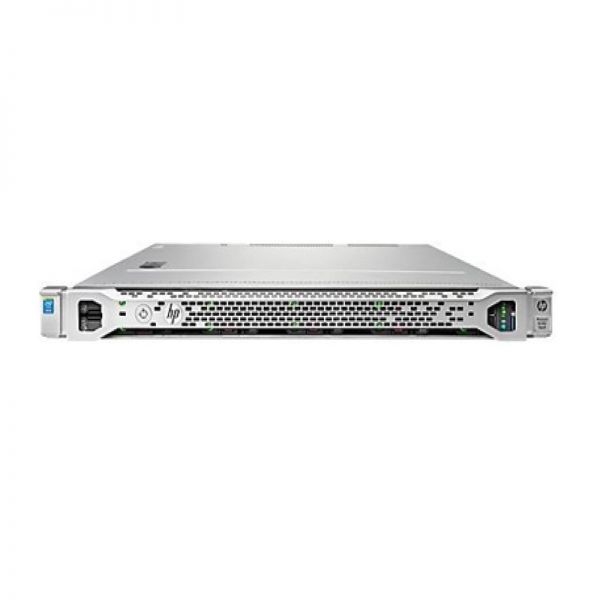

Figure 1 shows the appearance of HPE 830571-B21.
Table 1 shows the quick spec.
|
Product Model |
830571-B21 |
|
Processor |
Intel® Xeon® E5-2603 v4 (6 core, 1.7 GHz, 15MB, 85W) |
|
Number of processors |
1 |
|
Processor core available |
6 |
|
Processor cache |
15MB LLC |
|
Processor speed |
1.7GHz |
|
Form factor (fully configured) |
1U |
|
Product dimensions (H x W x D) |
17.1 x 23.92 x 1.71 in |
|
Weight |
22.55 lb |
Product Details
Figure 2 shows the front panel of HPE 830571-B21.
Note:
|
① |
Access Panel |
|
② |
Optional USB3.0 (optional with 8SFF only) |
|
③ |
Optical disk drive bay |
|
④ |
Serial label pull tab |
|
⑤ |
Power On/Standby button and system power LED |
|
⑥ |
Health LED |
|
⑦ |
NIC status LED |
|
⑧ |
USB 2.0 connector |
|
⑨ |
UID button/LED |
|
⑩ |
8SFF drive cage |
Figure 3 shows the back panel of HPE 830571-B21.
Note:
|
① |
PCIe3 slot 1 (primary, associated with processor 1) |
|
② |
PCIe3 slot 2 (primary, associated with processor 1) |
|
③ |
PCIe3 slot 3 (secondary, associated with processor 2) |
|
④ |
Power supply 1 bay |
|
⑤ |
Power supply 1 Power Connector (Optional) |
|
⑥ |
Power supply 1 LED (Optional) |
|
⑦ |
Power supply 2 bay |
|
⑧ |
Power supply 2 power connector |
|
⑨ |
Power Supply 2 LED |
|
⑩ |
Embedded 2x1GbE network adapter |
|
⑪ |
Unit ID LED |
|
⑫ |
Video Connector |
|
⑬ |
USB3.0 connectors |
|
⑭ |
4 Dedicated iLO connector (optional) |
The Accessories
Table 2 shows the recommended elements for the HPE 830571-B21.
|
Product number |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
870753-B21 |
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
868818-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
875503-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Compare to Similiar Items
Table 3 shows the comparison between HPE 830571-B21 and HPE 793308-B21.
|
Product Model |
830571-B21 |
793308-B21 |
|
Processor |
Intel® Xeon® E5-2603 v4 (6 core, 1.7 GHz, 15MB, 85W) |
Intel® Xeon® E7-4809 v3 (8 core, 2.0 GHz, 20MB, 115W) |
|
Number of processors |
1 |
2 |
|
Processor core available |
6 |
8 |
|
Processor cache |
15MB LLC |
20MB L3 |
|
Processor speed |
1.7GHz |
2.0GHz |
Get more information
Do you have any question about the HPE 830571-B21 Sever
Contact us now via Live Chat or [email protected].
830571-B21 Datasheet
830571-B21 Specification |
|
|
Processor |
Intel® Xeon® E5-2603 v4 (6 core, 1.7 GHz, 15MB, 85W) |
|
Number of processors |
1 |
|
Processor core available |
6 |
|
Processor cache |
15MB LLC |
|
Processor speed |
1.7GHz |
|
Form factor (fully configured) |
1U |
|
Form factor chassis |
Rack |
|
Power supply type |
(1) 550W factory integrated power supply |
|
Expansion slots |
(3) PCIe For detail descriptions reference the QuickSpecs |
|
Memory, maximum |
1TB |
|
Memory, standard |
8GB (1x8GB) RDIMM |
|
Memory slots |
16 DIMM slots |
|
Memory type |
1R x8 PC4-2400T-R |
|
Memory protection features |
Advanced ECC Memory Online Spare Mode Memory Mirroring Mode |
|
Included hard drives |
(8) SFF None ship standard |
|
Optical drive type |
Optional |
|
System fan features |
3 hot swap fans, non redundant |
|
Network controller |
1Gb 361i Ethernet Adapter 2 Ports per controller |
|
Storage controller |
Dynamic Smart Array B140i |
|
Product dimensions (H x W x D) |
17.1 x 23.92 x 1.71 in |
|
Weight |
22.55 lb |
|
Infrastructure management |
HP iLO Essentials (optional), HP iLO Advanced (optional) |
