Product Model: 830570-B21
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
The HPE ProLiant DL160 Gen9 Server delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis. 830570-B21 meets the needs of a diverse set of customers – from SMBs to service providers with a wide range of deployments – from general purpose IT infrastructure to the emerging “New Style of IT” deployments like cloud and big data in distributed computing environments.
Quick Spec

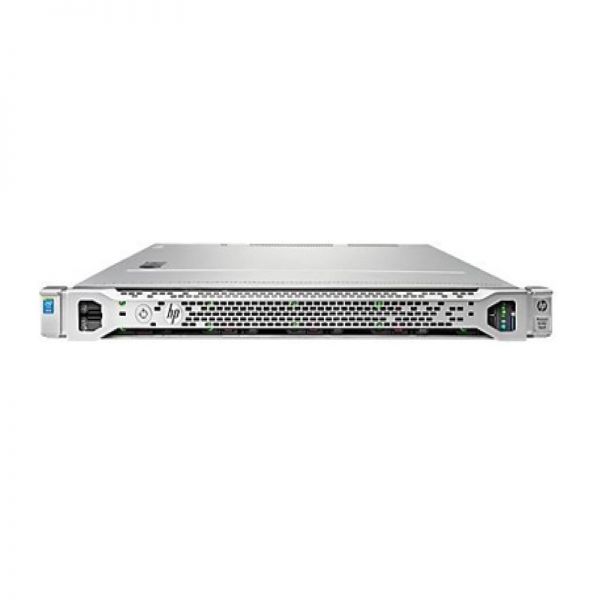

Figure 1 shows the appearance of HPE 830570-B21.
Table 1 shows the quick spec.
|
Product Model |
830570-B21 |
|
Processor |
Intel® Xeon® E5-2603 v4 (6 core, 1.7 GHz, 15MB, 85W) |
|
Number of processors |
1 |
|
Processor core available |
6 |
|
Processor cache |
15MB LLC |
|
Processor speed |
1.7GHz |
|
Form factor (fully configured) |
1U |
|
Product dimensions (H x W x D) |
17.1 x 23.92 x 1.71 in |
|
Weight |
22.55 lb |
Product Details
Figure 2 shows the front panel of HPE 830570-B21.
Note:
|
① |
Access Panel |
|
② |
Optional USB3.0 (optional with 8SFF only) |
|
③ |
Optical disk drive bay |
|
④ |
Serial label pull tab |
|
⑤ |
Power On/Standby button and system power LED |
|
⑥ |
Health LED |
|
⑦ |
NIC status LED |
|
⑧ |
USB 2.0 connector |
|
⑨ |
UID button/LED |
|
⑩ |
8SFF drive cage |
Figure 3 shows the back panel of HPE 830570-B21.
Note:
|
① |
PCIe3 slot 1 (primary, associated with processor 1) |
|
② |
PCIe3 slot 2 (primary, associated with processor 1) |
|
③ |
PCIe3 slot 3 (secondary, associated with processor 2) |
|
④ |
Power supply 1 bay |
|
⑤ |
Power supply 1 Power Connector (Optional) |
|
⑥ |
Power supply 1 LED (Optional) |
|
⑦ |
Power supply 2 bay |
|
⑧ |
Power supply 2 power connector |
|
⑨ |
Power Supply 2 LED |
|
⑩ |
Embedded 2x1GbE network adapter |
|
⑪ |
Unit ID LED |
|
⑫ |
Video Connector |
|
⑬ |
USB3.0 connectors |
|
⑭ |
4 Dedicated iLO connector (optional) |
The Accessories
Table 2 shows the recommended elements for the HPE 830570-B21.
|
Product number |
Description |
|
872487-B21 |
HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
846524-B21 |
HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
819201-B21 |
HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD |
|
872485-B21 |
HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
877784-B21 |
HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD |
Compare to Similar Items
Table 3 shows the comparison between HPE 830570-B21 and HPE 793308-B21.
|
Product Model |
830570-B21 |
793308-B21 |
|
Processor |
Intel® Xeon® E5-2603 v4 (6 core, 1.7 GHz, 15MB, 85W) |
Intel® Xeon® E7-4809 v3 (8 core, 2.0 GHz, 20MB, 115W) |
|
Number of processors |
1 |
2 |
|
Processor core available |
6 |
8 |
|
Processor cache |
15MB LLC |
20MB L3 |
|
Processor speed |
1.7GHz |
2.0GHz |
Get more information
Do you have any question about the HPE 830570-B21 Sever
Contact us now via Live Chat or [email protected].
830570-B21 Datasheet
830570-B21 Specification |
|
|
Processor |
Intel® Xeon® E5-2603 v4 (6 core, 1.7 GHz, 15MB, 85W) |
|
Number of processors |
1 |
|
Processor core available |
6 |
|
Processor cache |
15MB LLC |
|
Processor speed |
1.7GHz |
|
Form factor (fully configured) |
1U |
|
Form factor chassis |
Rack |
|
Power supply type |
(1) 550W factory integrated power supply |
|
Expansion slots |
(3) PCIe For detail descriptions reference the QuickSpecs |
|
Memory, maximum |
1TB |
|
Memory, standard |
8GB (1x8GB) RDIMM |
|
Memory slots |
16 DIMM slots |
|
Memory type |
1R x8 PC4-2400T-R |
|
Memory protection features |
Advanced ECC Memory Online Spare Mode Memory Mirroring Mode |
|
Included hard drives |
(4) LFF None ship standard |
|
Optical drive type |
Optional |
|
System fan features |
3 hot swap fans, non redundant |
|
Network controller |
1Gb 361i Ethernet Adapter 2 Ports per controller |
|
Storage controller |
Dynamic Smart Array B140i |
|
Product dimensions (H x W x D) |
17.1 x 23.92 x 1.71 in |
|
Weight |
22.55 lb |
|
Infrastructure management |
HP iLO Essentials (optional), HP iLO Advanced (optional) |
