830073-B21 – HPE ProLiant DL560 Gen9 Server Price & Datasheet

Product Model: 830073-B21

Retail Price: Price has expired

Email Us To Get Special Price Today:  [email protected]

The HPE ProLiant DL560 Gen9 Server is a high-density four-socket (4S) server with balanced performance, increased scalability and reliability, all in a 2U chassis. HPE 830073-B21 Supports the latest Intel® Xeon® E5-4600 v4/v3 processors, the HPE ProLiant DL560 Gen9 Server offers greater processing power, along with increased storage capacity, I/O bandwidth of up to seven PCIe Gen 3.0 slots, up to 3 TB of memory, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 4. The HPE ProLiant DL560 Gen9 Server is the ideal server for virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.

Quick Spec

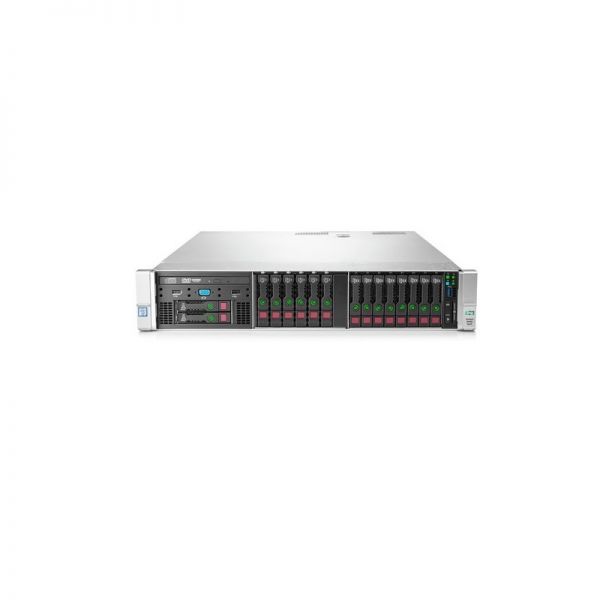

Figure 1 shows the appearance of HPE 830073-B21.

Table 1 shows the quick spec.

Product Model	830073-B21
Energy efficiency	ENERGY STAR® qualified
Number of processors	4
Processor core available	12
Processor cache	30MB L3
Processor speed	2.1GHz
Form factor (fully configured)	2U
Product dimensions (H x W x D)	17.54 x 29.5 x 3.44 in
Weight	61 lb

Product Details

Figure 2 shows the front panel of HPE 830073-B21.

Note:

①	Quick removal access panel
②	Optional Optical drive. Requires Universal Media Bay
③	Optional 2 SFF HDDs. Requires Universal Media bay
④	Power On/Standby button and system power LED button
⑤	Health Status LED
⑥	NIC Status LED
⑦	UID button
⑧	USB 3.0 connector
⑨	Serial label pull tag
⑩	Systems Insight Display (SID) (optional)
⑪	Bay 3 – fixed 8 SFF Drive Bay
⑫	Bay 2 – Optional 8 SFF Drive Bay
⑬	Bay 1 – Optional 8 SFF Drive Bay or Universal Media Bay

Figure 3 shows the back panel of HPE 830073-B21.

Note:

①	PCIe Slots (Slots 1-3 top to bottom)
②	PCIe Slots (Slots 4-6 top to bottom)
③	PCIe Slot (Slot 7)
④	Power supply power LED
⑤	Power supply power connection
⑥	HPE Common Slot Power Supply bay 1
⑦	HPE Common Slot Power Supply bay 2
⑧	Power supply power connection
⑨	Power supply power LED
⑩	Serial connector
⑪	Dedicated iLO connector
⑫	VGA (video) connector
⑬	Unit ID LED
⑭	USB 2.0 connectors (2)
⑮	USB 3.0 connectors (3)
⑯	HPE FlexibleLOM ports (Shown:4x1GbE/Optional:2x10GbE);port1 on right side

The Accessories

Table 2 shows the recommended elements for the HPE 830073-B21.

Product number	Description
872475-B21	HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
872477-B21	HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
870753-B21	HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
872479-B21	HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
868818-B21	HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD
875503-B21	HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

Compare to Similar Items

Table 3 shows the comparison between HPE 830073-B21 and HPE 793308-B21.

Product Model	830071-B21	793308-B21
Number of processors	4	2
Processor core available	12	8
Processor cache	30MB L3	20MB L3
Processor speed	2.1GHz	2.0GHz
