Product Model: 823556-B21
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel® Pentium®, Core i3 and E3-1200 v5/v6 processors provides a unique blend of enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses and service providers. HPE 823556-B21 offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. The DL20 Gen9 Server offers a range of HPE Qualified Options to fit most needs like affordable drives for light workloads, solid state drives for the demanding requirements, from a single non-hot plug power supply to an efficient HPE Hot Plug Redundant Power supply, from multiple storage controllers to the HPE FlexibleLOM networking cards—helping customers find the right configuration for their workloads.
Quick Spec

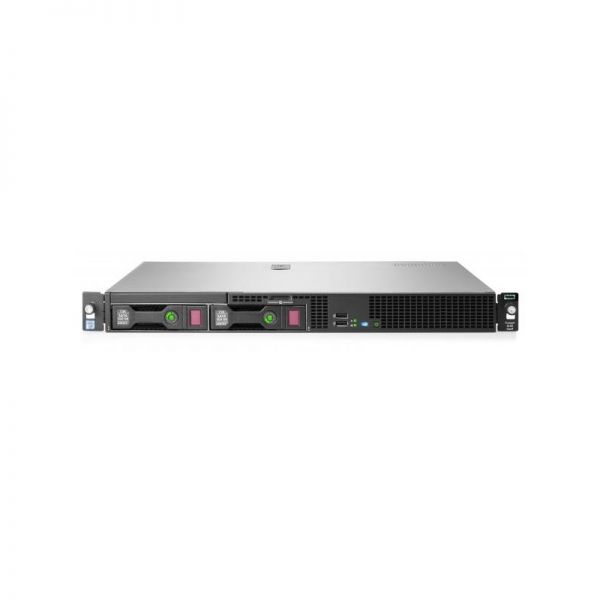

Figure 1 shows the appearance of HPE 823556-B21.
Table 1 shows the quick spec.
|
Product Model |
823556-B21 |
|
Energy efficiency |
No |
|
Number of processors |
1 Intel Xeon E3-1220v5 processor |
|
Processor core available |
4 |
|
Processor cache |
8MB L3 |
|
Processor speed |
0GHz |
|
Form factor (fully configured) |
1U |
|
Product dimensions (H x W x D) |
17.1 x 15.05 x 1.7 in |
|
Weight |
17.41 lb |
Product Details
Figure 2 shows the front panel of HPE 823556-B21.
Note:
|
① |
Access Panel |
|
② |
Optical Drive |
|
③ |
Serial number/iLO information pull tab |
|
④ |
2 USB 2.0 connectors |
|
⑤ |
Health LED |
|
⑥ |
Front 2 Fan Assembly |
|
⑦ |
Power On/Standby button and system power LED button |
|
⑧ |
UID LED |
|
⑨ |
NIC status LED |
|
⑩ |
Hard Drive Bays |
Figure 3 shows the back panel of HPE 823556-B21.
Note:
|
① |
Expansion Slot 1, PCIe x 8 |
|
② |
Expansion Slot 2, PCIe x 16 |
|
③ |
Redundant Power Supply (only on SFF Chassis) |
|
④ |
UID LED |
|
⑤ |
NIC Connector 2 |
|
⑥ |
Video Connector |
|
⑦ |
NIC1/shared iLO connector |
|
⑧ |
USB 3.0 Connector |
The Accessories
Table 2 shows the recommended elements for the HPE 823556-B21.
|
Product number |
Description |
|
872487-B21 |
HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
846524-B21 |
HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
819201-B21 |
HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD |
|
872485-B21 |
HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
877784-B21 |
HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD |
Compare to Similar Items
Table 3 shows the comparison between HPE 823556-B21 and HPE 793308-B21.
|
Product Model |
823556-B21 |
793308-B21 |
|
Number of processors |
1 |
2 |
|
Processor core available |
4 |
8 |
|
Processor cache |
|
20MB L3 |
|
Processor speed |
3.0GHz |
2.0GHz |
Get more information
Do you have any question about the HPE 823556-B21 Sever
Contact us now via Live Chat or [email protected].
823556-B21 Datasheet
823556-B21 Specification |
|
|
Energy efficiency |
No |
|
Number of processors |
1 Intel Xeon E3-1220v5 processor |
|
Processor core available |
4 |
|
Processor cache |
8MB L3 |
|
Processor speed |
3.0GHz |
|
Form factor (fully configured) |
1U |
|
Form factor chassis |
Rack |
|
Power supply type |
(1) 290W non-hot plug power supply Entry-Level |
|
Expansion slots |
(2) PCIe For detail descriptions reference the QuickSpecs |
|
Memory, maximum |
8GB |
|
Memory, standard |
8GB (1x8GB) UDIMM |
|
Memory slots |
4 DIMM slots |
|
Memory type |
2R x8 PC4-2133P-E-15 |
|
Memory protection features |
Advanced ECC |
|
Included hard drives |
(2) LFF None ship standard Supports up to (2) LFF SAS/SATA hot plug drives |
|
Optical drive type |
None ship standard |
|
System fan features |
Non-hot plug non-redundant |
|
Graphic card |
NVIDIA K2200 |
|
Network controller |
1Gb 332i Ethernet Adapter 2 Ports per controller Applicable to all models |
|
Storage controller |
(1) Dynamic Smart Array B140i |
|
Product dimensions (H x W x D) |
17.1 x 15.05 x 1.7 in |
|
Weight |
17.41 lb |
|
Infrastructure management |
iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials(optional), iLO Scale-Out(optional) iLO Advanced (optional) |
