Product Model: 793308-B21
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
The HPE ProLiant DL580 Gen9 Server is the 4S enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies. HPE-793308-B21 Supporting Intel® Xeon® E7-4800/8800 v4/v3 processors, the DL580 Gen9 Server offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen 3.0 slots). The DL580 Gen9 Server has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications. Whether needed for highly virtualized or cloud based deployments, with intelligence and simplicity of automated management with HPE OneView and HPE iLO4 your business can achieve agile and lower cost infrastructure management.
Quick Specs

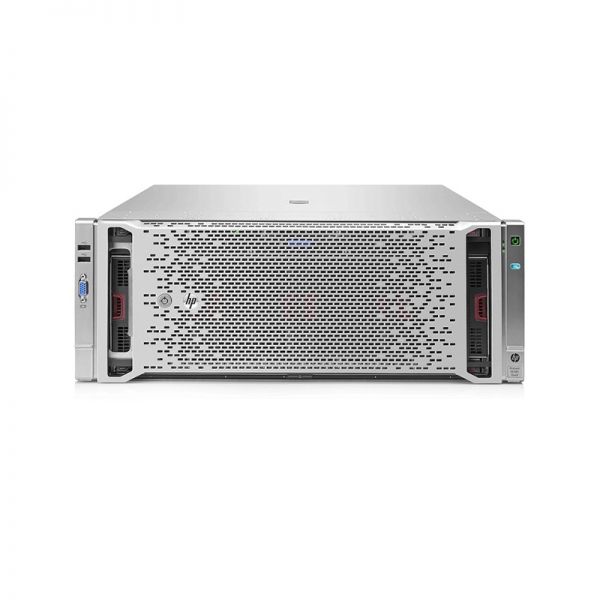

Figure 1 shows the appearance of HPE 793308-B21.
Table 1 shows the Quick Specs of HPE 793308-B21.
|
Product Model |
HPE-793308-B21 |
|
Processor |
Intel® Xeon® E7-4809 v3 (8 core, 2.0 GHz, 20MB, 115W) |
|
Number of processors |
2 |
|
Processor core available |
8 |
|
Processor cache |
20MB L3 |
|
Processor speed |
2.0GHz |
|
Form factor (fully configured) |
4U |
|
Form factor chassis |
Rack |
|
Product dimensions (H x W x D) |
17.48 x 29 x 6.88in |
Product Details
Figure 2 shows the front view of HPE 793308-B21.
Note:
|
① |
CPU Memory Drawer Handle |
|
② |
Quick removal access panel |
|
③ |
Drive bays 6-10 |
|
④ |
Systems Insight Display |
|
⑤ |
Health Status LED |
|
⑥ |
Power On/Standby button and system power LED button |
|
⑦ |
NIC status LED |
|
⑧ |
UID button |
|
⑨ |
Fans 1-4 |
|
⑩ |
Drive bays 1-5 |
|
⑪ |
Discovery services connectors |
|
⑫ |
Video connector |
|
⑬ |
USB connectors (2) |
Figure 3 shows the ports and slots on the back panel of HPE 793308-B21.
Note:
|
① |
Serial connector |
|
② |
Video connector |
|
③ |
Power Supplies 1-4 |
|
④ |
PCI expansion slots 1-9 |
|
⑤ |
Dedicated iLO connector |
|
⑥ |
FlexibleLOM ports 1-4 |
|
⑦ |
USB connectors (4) |
Figure 4 shows the inside view of HPE 793308-B21.
Note
|
① |
CPU Memory Drawer |
|
② |
Memory Cartridges 1-8 |
|
③ |
Processors 1-4 |
|
④ |
FBWC capacitor slots 1-4 |
|
⑤ |
I/O Card Auxiliary Power Connectors |
|
⑥ |
Power Supplies |
|
⑦ |
PCI expansion slots 1-9 |
|
⑧ |
Flexible LOM connector |
|
⑨ |
SPI board (houses iLO chip, FBWC, microSD slot, 2x USB slots, TPM, top SAS backplane connector) |
|
⑩ |
MicroSD Slot |
The Accessories
Table 2 shows the recommended elements for the HPE 793308-B21.
|
Product number |
Model |
Description |
|
E7Y63A |
E7Y63A – Storage Networking for HPE Server |
HPE StoreFabric 84E 4-port 8Gb Fibre Channel Host Bus Adapter |
|
726724-B21 |
726724-B21 – Enterprise Memory for HPE Server |
HPE 64GB (64GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit |
|
825111-B21 |
825111-B21 – Networking Adapters for HPE Server |
HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter |
|
794525-B21 |
794525-B21 – Networking Adapters for HPE Server |
HPE FlexFabric 10Gb 2-port 556FLR-T Adapter |
|
727054-B21 |
727054-B21 – Networking Adapters for HPE Server |
HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter |
|
727055-B21 |
727055-B21 – Networking Adapters for HPE Server |
HPE Ethernet 10Gb 2-port 562SFP+ Adapter |
Compare to Similar Items
Table 3 shows the comparison between HPE 793308-B21 and HPE 793310-B21.
|
Model |
793308-B21 |
793310-B21 |
|
Processor |
Intel® Xeon® E7-4809 v3 (8 core, 2.0 GHz, 20MB, 115W) | Intel® Xeon® E7-4850 v3 (14 core, 2.2 GHz 35MB 115W) |
|
Number of processors |
2 |
2 |
|
Processor core available |
8 |
14 |
|
Processor cache |
20MB L3 | 35MB L3 |
|
Processor speed |
2.0GHz | 2.2GHz |
Get more information
Do you have any question about the HPE 793308-B21 Sever
Contact us now via Live Chat or [email protected].
793308-B21 Datasheet
HPE-793308-B21 Specification |
|
|
Processor |
Intel® Xeon® E7-4809 v3 (8 core, 2.0 GHz, 20MB, 115W) |
|
Number of processors |
2 |
|
Processor core available |
8 |
|
Processor cache |
20MB L3 |
|
Processor speed |
2.0GHz |
|
Form factor (fully configured) |
4U |
|
Form factor chassis |
Rack |
|
Power supply type |
(2) 1200W Platinum Plus hot plug power supply kit Common Slot |
|
Expansion slots |
(9) PCIe 3.0 For detail descriptions reference the QuickSpecs |
|
Memory, maximum |
6TB Up to 96 DIMM slots with 8 memory cartridges |
|
Memory, standard |
64GB (4x16GB) RDIMM |
|
Memory type |
DDR4 SmartMemory |
|
Memory protection features |
MCA Recovery Execution Path Patrol and Demand Scrubbing Memory Lock Step Mode Memory Online Spare Mode Advanced ECC and DIMM Address/Parity Protection |
|
Included hard drives |
(5) SFF SAS Supports up to (10) SFF SAS/SATA/SSD hot plug drives |
|
Optical drive type |
External support only |
|
System fan features |
4 (8 rotors, N+1 redundant) |
|
Network controller |
1Gb 331FLR Ethernet Adapter 4 Ports per controller |
|
Storage controller |
(1) Smart Array P830i/2GB FBWC |
|
Product dimensions (H x W x D) |
17.48 x 29 x 6.88in |
|
Weight |
116.5 |
|
Infrastructure management |
iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), HP OneView Advanced (optional), HP Insight Control (optional) |
