Product Model: 700759-B21
Retail Price: US$221.00
Email Us To Get Special Price Today: [email protected]

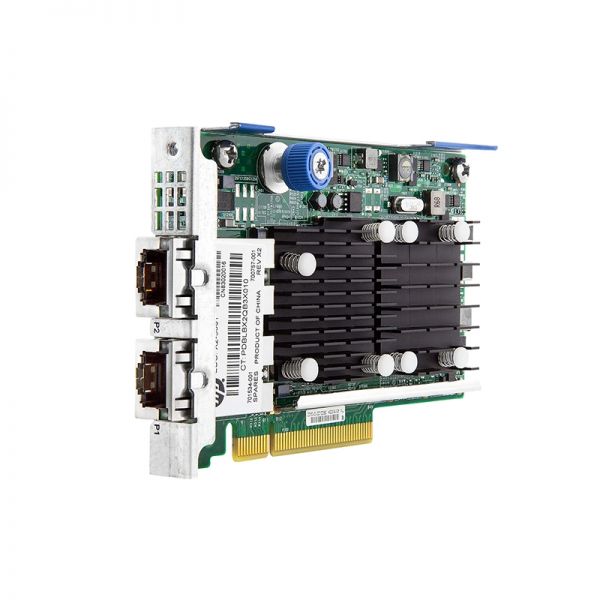

The HPE FlexFabric 10Gb 2-port 533FLR-T Adapter is a high-performance, dual-port network adapter built for the demands of enterprise networks and data centers. Designed for S-ERVER environments, this adapter enhances network capabilities with fast 10GbE throughput and advanced features for network virtualization and efficient workload management.
Quick Spec
| Brand | HPE |
| Product ID | 700759-B21 |
| Type | FlexFabric Adapter |
| Interface | PCI Express 2.0 x8 |
| Data Rate | 10GbE |
Product Manual
- ● Dual-port 10GbE connectivity enhances network throughput and redundancy.
- ● Support for HPE Virtual Connect Flex-10 technology allows for the allocation of bandwidth as needed.
- ● Advanced stateless offloads reduce the overhead on server processors.
- ● Designed for optimized networking and bandwidth management in virtualized environments.
- ● Easy integration into existing HPE ProLiant servers with PCIe slots.
Product Applications
- ● Data centers requiring high-speed networking for bandwidth-intensive applications.
- ● Enterprises implementing virtualized environments for efficient workload management.
- ● Cloud service providers needing scalable, high-performance network interfaces for multi-tenant architectures.
Supported Options
| Direct Attach Cables | HPE X242 SFP+ to SFP+ 10GbE |
| Transceivers | HPE 10GbE SFP+ SR Transceiver |
| Network Software | HPE Virtual Connect software |
Compare to Similar Items
| Model | Difference |
| HPE 530SFP+ | Single port, PCIe 3.0 x8, no support for Virtual Connect Flex-10 |
| HPE Ethernet 10Gb 2-port 560FLR-SFP+ | Includes SFP+ ports, PCIe 3.0 x8, Flex-10 technology supported |
| HPE Ethernet 10Gb 2-port 562FLR-SFP+ | Additional offload capabilities, PCIe 3.0 x8, FlexFabric benefits |
Get more information
For more details on the HPE FlexFabric 10Gb 2-port 533FLR-T Adapter and its pricing, please contact us through Live Chat or at [email protected]. Were here to help you select the best networking solutions for your business.
Specification
700759-B21 Datasheet
700759-B21 Specification |
|
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Header | |
| Compatibility | PC, Unix |
| Manufacturer | Hewlett-Packard |
| Packaged Quantity | 1 |
| Product Line | HPE FlexFabric |
| Model | 533FLR-T |
| Brand | HPE |
| Interface Provided | |
| Qty | 2 |
| Connector Type | RJ-45 |
| Type | 10GBase-T |
| Miscellaneous | |
| Compliant Standards | BSMI Class A, EN 61000-3-2:2006, EN 61000-3-3:2008, EN55022 Class A, EN55024, FCC Class A certified, ICES-003 Class A, RoHS 6/6, UL, VCCI Class A ITE, WEEE |
| Networking | |
| Type | Network adapter |
| Form Factor | Plug-in card |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Data Link Protocol | 10 Gigabit Ethernet, Gigabit Ethernet |
| Compliant Standards | IEEE 802.1AX, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.2x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3x |
| Status Indicators | Link/activity, Port status |
| Cabling Type | Ethernet 10GBase-T |
| Ports Qty | 2 |
| Features | Auto-negotiation, Jumbo Frames support, Large Send Offload (LSO), PXE support, Receive Side Scaling (RSS), TCP Segmentation Offload (TSO) |
| Interface Type | PCI Express 2.0 x8 |
| PCI DatasheetRevision | PCIe 2.0 |
| Ports | |
| Qty | 2 |
| Type | 10Gb Ethernet |
| Processor | |
| Type | BCM57810S |
| Installed Qty | 1 |
| Manufacturer | Broadcom |
| RAM | |
| Installed Size | 256 MB |
| Service | |
| Support Details Type | Limited warranty |
| Support Details Full Contract Period | 1 year |
| Service & Support | |
| Type | 1 year warranty |
| System Requirements | |
| Min Operating System | Citrix XenServer 6.0, Citrix XenServer 6.1, Microsoft Windows HPC Server 2008, Microsoft Windows MultiPoint Server 2011, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows Small Business Server 2011 Standard, Oracle Solaris 10, Red Hat Enterprise Linux 5.7, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, Red Hat Enterprise Linux 6.3, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, VMware vSphere 4.1, VMware vSphere 5.0 |
