Product Model: 652564-B21
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]

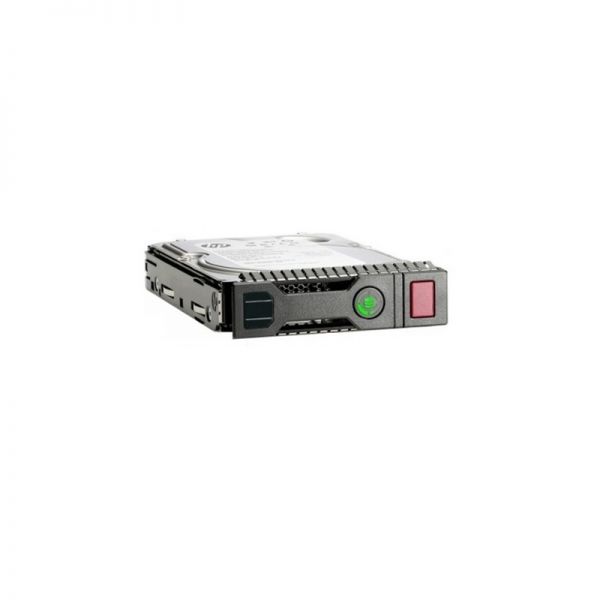

HPE 652564-B21 is a HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive for Gen8/Gen9 or Newer Servers.
HPE Server SAS Hard Drives for enterprise and midline applications deliver high-performance solutions for hosting high transaction based applications. They are available in HPE Smart Carrier, HPE Standard Hot Plug Carrier and HPE Non-hot Plug Carrier. HPE Server SAS Hard Drives are available in 2.5-inch Small Form Factor (SFF) and 3.5-inch Large Form Factor (LFF) and come in a variety of capacity points to meet a wide range of requirements supporting enterprise and midline applications. The SAS interface was specifically engineered to deliver high availability where enterprise-class data storage, performance, reliability and data integrity are crucial.
Quick Spec
Table 1 shows the spec.
|
Part Number |
652564-B21 |
|
Capacity |
300,000MB |
|
Height |
0.62 in (15.6 mm) |
|
Width |
2.98 in (75.7 mm) |
|
Depth |
4.67 in (118.7 mm) |
|
Interface |
SAS |
|
Transfer Rate Synchronous (Maximum) |
6 Gb/sec |
|
Seek Time (typical reads, including settling) |
Single Track: 0.3 ms Average: 4.0 ms Full-Stroke: 8.0 ms Rotational Speed: 10,000 rpm |
|
Physical Configuration |
Bytes/Sector: 512 Logical Blocks: 585,937,500 |
|
Operating Temperature (System Inlet Air Temperature) |
50 to 95 F (10 to 35 C) |
Supported Servers
Table 2 shows the recommended supported servers of this item.
|
Model |
Description |
|
810393-B21 |
HPE DL380 G9 NVMe 6 SSD Exp Bay CTO Svr |
|
767032-B21 |
HPE DL380 Gen9 24SFF CTO Server |
|
719064-B21 |
HPE DL380 Gen9 8SFF CTO Server |
|
867450-S01 |
HPE ProLiant DL380 Gen9 E5-2640v4 2P 16GB-R P440ar 8SFF 500W PS Server |
|
867449-S01 |
HPE ProLiant DL380 Gen9 E5-2620v4 2P 16GB-R P840ar 12LFF 800W PS Server |
|
719061-B21 |
HPE DL380 Gen9 12LFF CTO Server |
|
867448-S01 |
HPE ProLiant DL380 Gen9 E5-2620v4 2P 16GB-R P440ar 8SFF 500W PS Server |
|
850520-S01 |
HPE ProLiant DL380 Gen9 E5-2667v4 32GB-R P440ar 8SFF 2x500W PS Server |
|
850519-S01 |
HPE ProLiant DL380 Gen9 E5-2650v4 32GB-R P440ar 8SFF 2x500W PS Server |
|
850518-S01 |
HPE ProLiant DL380 Gen9 E5-2643v4 32GB-R P440ar 8SFF 500W PS Server |
|
850517-S01 |
HPE ProLiant DL380 Gen9 E5-2609v4 8GB-R H240ar 8SFF 500W PS Server |
|
767033-B21 |
HPE DL380 Gen9 4LFF CTO Server |
|
852432-B21 |
HPE ProLiant DL380 Gen9 E5-2660v4 2P 64GB-R P440ar 8SFF 2x10Gb 2x800W Perf Server |
|
848774-B21 |
HPE ProLiant DL380 Gen9 E5-2630v4 16GB-R P440ar 8SFF 500W PS Base Server |
Compare to Similar Item
Table 3 shows the comparison.
|
Part Number |
652564-B21 |
652611-B21 |
|
Capacity |
300,000MB |
300,000MB |
|
Interface |
SAS |
SAS |
|
Transfer Rate Synchronous (Maximum) |
6 Gb/sec |
6 Gb/sec |
|
Seek Time (typical reads, including settling) |
Single Track: 0.3 ms Average: 4.0 ms Full-Stroke: 8.0 ms Rotational Speed: 10,000 rpm |
Single Track: 0.4 ms Average: 2.9 ms Full-Stroke: 0.3 ms Rotational Speed: 15,000 rpm |
|
Physical Configuration |
Bytes/Sector: 512 Logical Blocks: 585,937,500 |
Bytes/Sector: 512 Logical Blocks: 585,937,500 |
|
Operating Temperature (System Inlet Air Temperature) |
50 to 95 F (10 to 35 C) |
50 to 95 F (10 to 35 C) |
Get more information
Do you have anyquestion aboutthe HPE 652564-B21Hard Drive
Contact us now viaLive Chator[email protected].
652564-B21 Datasheet
652564-B21 Specification |
|
|
Capacity |
300,000MB |
|
Height |
0.62 in (15.6 mm) |
|
Width |
2.98 in (75.7 mm) |
|
Depth |
4.67 in (118.7 mm) |
|
Interface |
SAS |
|
Transfer Rate Synchronous (Maximum) |
6 Gb/sec |
|
Seek Time (typical reads, including settling) |
Single Track: 0.3 ms Average: 4.0 ms Full-Stroke: 8.0 ms Rotational Speed: 10,000 rpm |
|
Physical Configuration |
Bytes/Sector: 512 Logical Blocks: 585,937,500 |
|
Operating Temperature (System Inlet Air Temperature) |
50° to 95° F (10° to 35° C) |
