Product Model: 455883-B21
Retail Price: US$65.00
Email Us To Get Special Price Today: [email protected]
455883-B21 is the HPE 10 Gb SFP+ SR transceiver for HPE BladeSystem c-class, providing 10-Gigabit connectivity up to 400m on OM4 multi-mode fiber. A 10-Gigabit transceiver in SFP+ form-factor that supports the 10-Gigabit SR standard, providing 10-Gigabit connectivity up to 400m on OM4 multimode fiber.
Quick Spec

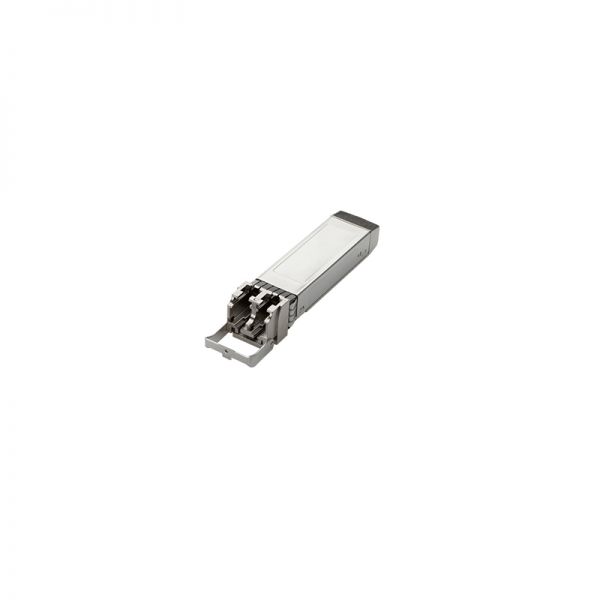

Figure 1 shows the appearance of 455883-B21.
Table 1 shows the quick spec.
|
Model |
455883-B21 |
|
Ports |
1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-SR) Duplex: full only |
|
Connector type |
LC |
|
Wavelength |
850 nm |
|
Cable type |
62.5/125 ?m or 50/125 ?m (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC793-2Type A1b or A1a, respectively |
|
Fiber type |
Multi Mode |
|
Product dimensions (H x W x D) |
2.19(d) x 0.54(w) x 0.47(h) in. (5.57 x 1.38 x 1.19cm) |
|
Weight |
0.04 lb. (0.02 kg) |
Features
①10Gb Ethernet transmission rate with SFP+ form factor
②Transmissions are up to 300m on MMF (SR), up to 220 m MMF (LRM) and 10 km on SMF (LR)
③Low power consumption at <0.8W for SR, <1W for LRM and LR
④Duplex LC connector
Get More Information
Do you have any question about the 455883-B21?
Contact us now via Live Chat or [email protected].
455883-B21 Datasheet
455883-B21 Specification |
|
| Connectors (for SD) | |
| Left Connector Type | LC multi-mode |
| Cable | |
| Connectivity Left Connector Type | LC multi-mode |
| Header | |
| Compatibility | PC |
| Manufacturer | Hewlett-Packard |
| Packaged Quantity | 1 |
| Product Line | HPE |
| Brand | HPE |
| Interface Provided | |
| Qty | 1 |
| Connector Qty | X 2 |
| Type | Ethernet 10GBase-SR |
| Connector Type | LC multi-mode |
| Networking | |
| Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Data Link Protocol | 10 Gigabit Ethernet |
| Cabling Type | Ethernet 10GBase-SR |
| Interface Type | SFP+ |
| Max Transfer Distance | 984 ft |
| Power Device | |
| Type | None |
| Slot Required | |
| Type | SFP+ |
| Total Qty | 1 |
