Product Model: 210-12t-GE2 P/N: 16566
Retail Price: US$209.00
Email Us To Get Special Price Today: [email protected]
210-12t-GE2 is designed for enterprises, branch offices and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution.
Quick Specs

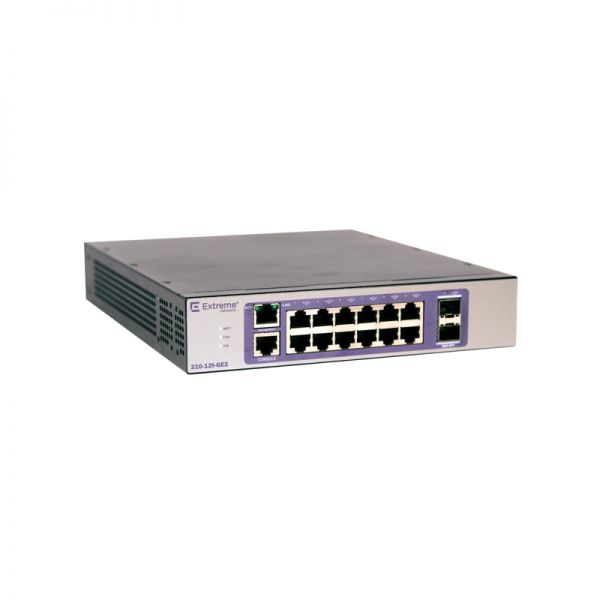

Figure 1 shows the appearance of 210-12t-GE2.
Table 1 shows the Quick Specs.
|
Product Code |
210-12t-GE2 |
|
Device Type |
Switch – 12 ports – L3 – managed |
|
Encryption Algorithm |
TLS 1.0, SSL 3.0 |
|
Flash Memory |
128 MB |
|
Ports |
12 x 10/100/1000 + 2 x Gigabit SFP |
|
Processor |
1 x ARM Cortex-A9: 400 MHz |
|
RAM |
512 MB |
Product Details
Figure 2 shows the front panel of 210-12t-GE2.
Figure 3 shows the back panel of 210-12t-GE2.
210-12t-GE2 provides these features:
Business Alignment
- ● 12, 24, or 48 Gigabit Ethernet ports
- ● 12, 24, or 48 IEEE 802.3at PoE port models
- ● 2 or 4 1000 Base-X SFP ports
- ● Line rate performance on all ports
- ● Comprehensive Layer 2 Edge feature set
- ● Layer 3 Static Routing with 60 routes for network segmentation
- ● Access control lists for granular security control
- ● Limited Lifetime Warranty
Flexible Management Options
- ● Centralized enterprise management via Extreme Management
- ● Web browser-based management
- ● Industry-standard command line interface (CLI) with
Compare to Similar Items
Table 2 shows the comparison of 210-12t-GE2.
|
Module |
210-12t-GE2 |
210-24t-GE2 |
|
Ports |
12 x 10/100/1000BaseT (RJ-45) ports 2 x 100/1000BASE-X (SFP) unpopulated ports 1 x Serial console port RJ-45 1 x 10/100 BaseT out-of-band management port |
24 x 10/100/1000BaseT (RJ-45) ports 2 x 100/1000BASE-X (SFP) unpopulated ports 1 x Serial console port RJ-45 1 x 10/100 BaseT out-of-band management port |
|
Performance |
28 Gbps 20.8 Mpps |
52 Gbps 38.7 Mpps |
|
Dimensions |
4.4 cm (H) x 20.9 cm (W) x 25.5 cm (D) 1.73¡± (H) x 8.23¡± (W) x 10.1¡± (D) |
4.4 cm (H) x 44.1 cm (W) x 25.4 cm (D) 1.73¡± (H) x 17.38¡± (W) x 10.0¡± (D) |
|
Minimum Heat Dissipation (BTU/HR) |
36 |
56 |
|
Minimum Power Consumption (Watts) |
11 |
16 |
|
Maximum* Heat Dissipation (BTU/HR) |
63 |
87 |
|
Maximum* Power Consumption (Watts) |
18 |
26 |
Before Purchasing
Do you have any question about the 210-12t-GE2
Contact us – Email Live Chat or [email protected].
210-12t-GE2 P/N: 16566 Datasheet
210-12t-GE2 Specification |
|
|
General |
|
|
Authentication Method |
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|
Capacity |
VLANs supported: 1024 | LAG groups: 6 | ACL: 100 | Traffic classes (queues): 8 | IPv6 routes (static): 64 | MSTP instances: 4 |
|
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1ak |
|
Device Type |
Switch – 12 ports – L3 – managed |
|
Enclosure Type |
Desktop, rack-mountable 1U |
|
Encryption Algorithm |
TLS 1.0, SSL 3.0 |
|
Flash Memory |
128 MB |
|
MAC Address Table Size |
16000 entries |
|
Performance |
Switching throughput: 28 Gbps | Switching throughput: 20.8 Mpps |
|
Ports |
12 x 10/100/1000 + 2 x Gigabit SFP |
|
Processor |
1 x ARM Cortex-A9: 400 MHz |
|
RAM |
512 MB |
|
Remote Management Protocol |
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, CLI |
|
Routing Protocol |
RIP, RIP-2, IGMP, static IP routing, static IPv6 routing |
|
Subtype |
Gigabit Ethernet |
|
Dimensions |
|
|
Depth |
25.5 cm |
|
Height |
4.4 cm |
|
Width |
20.9 cm |
|
Power |
|
|
Power Consumption Operational |
18 Watt |
|
Power Device |
Internal power supply |
|
Power Redundancy |
Optional |
|
Environmental Parameters |
|
|
Humidity Range Operating |
10 – 95% (non-condensing) |
|
Humidity Range Storage |
10 – 95% (non-condensing) |
|
Max Operating Temperature |
50 ¡ãC |
|
Max Storage Temperature |
70 ¡ãC |
|
Min Operating Temperature |
0 ¡ãC |
|
Min Storage Temperature |
-40 ¡ãC |
